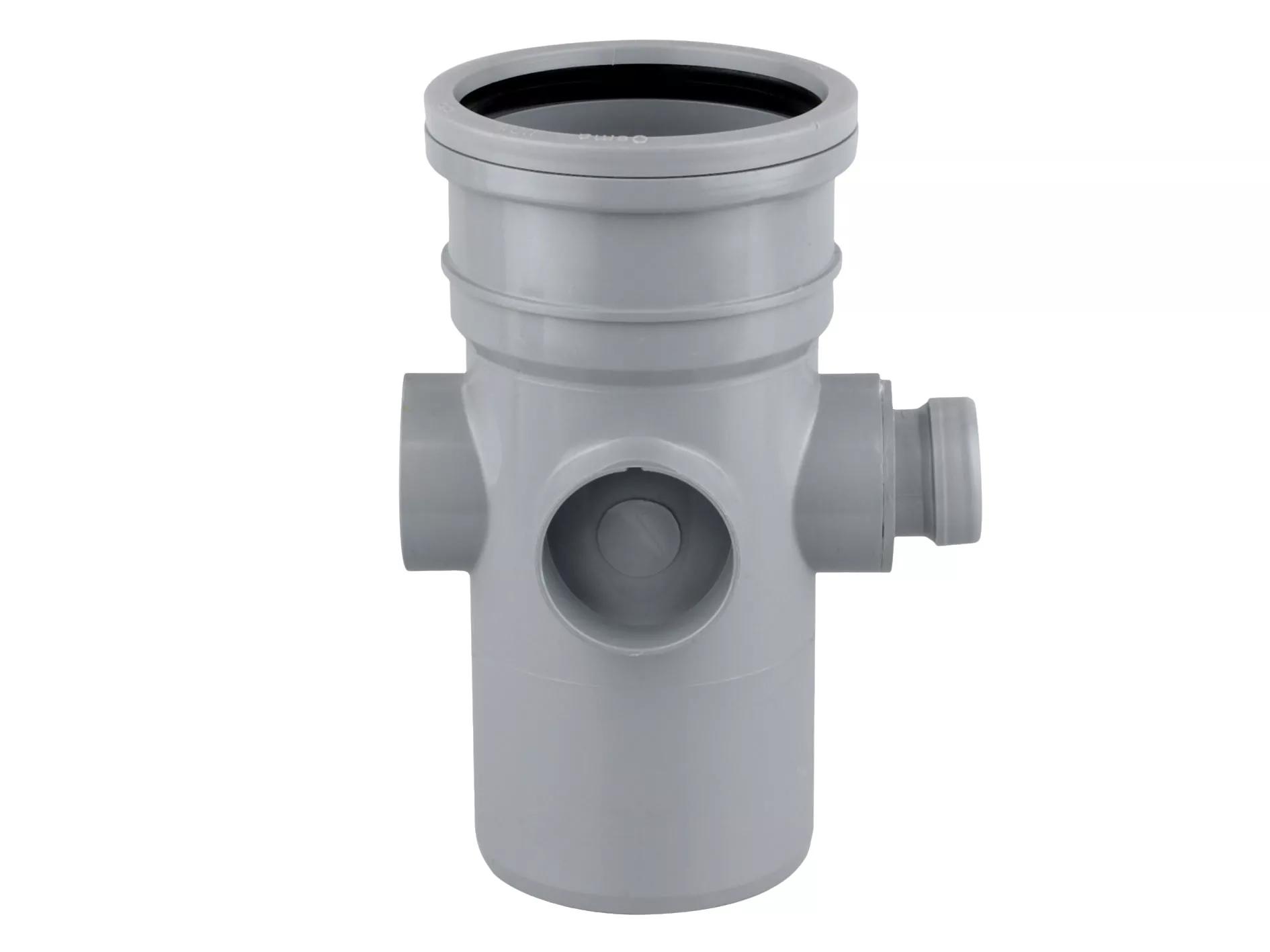

OsmaS PVCU Bossed Pipe GY 110x32 S/S
| 1 bag | 5 pieces |
|---|---|
| 1 pallet | 120 pieces |
Product Identifiers
Catalog Code3036613
EAN Number5011479105689
SAP number3036613
| 1 bag | 5 pieces |
|---|---|
| 1 pallet | 120 pieces |
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Polyvinyl chloride (PVC) |
Material quality connection 1 | PVC-U |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polyvinyl chloride (PVC) |
Material quality connection 2 | PVC-U |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Model | 1-part |
Reducing | Yes |
System-specific | No |
Nominal diameter connection 1 | DN 110 |
Outer pipe diameter connection 1 | 132mm |
Wall thickness, connection 1 | 3.5mm |
Connection 1 | Slide sleeve |
Nominal diameter connection 2 | DN 100 |
Outer pipe diameter connection 2 | 110mm |
Wall thickness, connection 2 | 3.5mm |
Connection 2 | Slide end |
Main colour fitting | Grey |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
Length of connection 1 | 65mm |
Working length connection 1 | 98mm |
Length of connection 2 | 50mm |
Working length connection 2 | 74mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Max. operating pressure at 20 °C | 0bar |
Max. operating pressure at max. medium temperature | 0bar |
With thermal insulation | No |
Standard Dimension Ratio (SDR) | 0.0000 |
With sealing rings/gaskets | Yes |
Capped | No |
