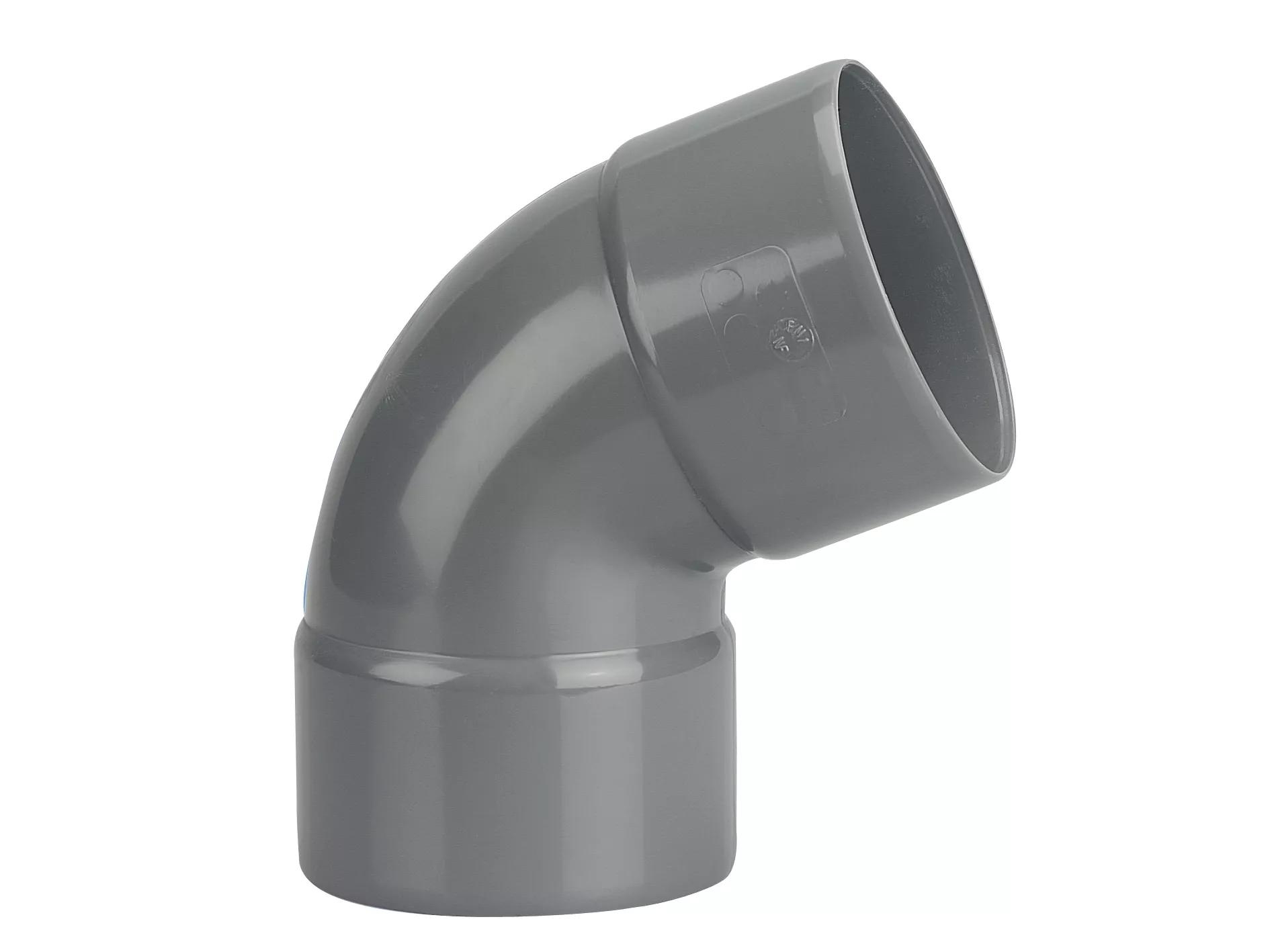

PVC Bend 67°3 GY 200 S/S
| 1 box | 5 pieces |
|---|---|
| 1 pallet | 40 pieces |
Product Identifiers
Catalog Code4005685
EAN Number3306490063158
SAP number4005685
| 1 box | 5 pieces |
|---|---|
| 1 pallet | 40 pieces |
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Polyvinyl chloride (PVC) |
Material quality connection 1 | PVC-U |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polyvinyl chloride (PVC) |
Material quality connection 2 | PVC-U |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Bend |
Model | 1-part |
Bend angle | 67.3° |
Bend radius | 0mm |
Reducing | No |
System-specific | Yes |
Nominal diameter connection 1 | DN 200 |
Outer pipe diameter connection 1 | 200mm |
Wall thickness, connection 1 | 2.9mm |
Connection 1 | Glued sleeve |
Contour code connection 1 | Other |
Nominal diameter connection 2 | DN 200 |
Outer pipe diameter connection 2 | 200mm |
Wall thickness, connection 2 | 2.9mm |
Connection 2 | Glued sleeve |
Contour code connection 2 | Other |
Main colour fitting | Grey |
Zeta value | 0.0000 |
High tensile strength | No |
Length | 0mm |
Length of connection 1 | 60mm |
Working length connection 1 | 60mm |
Length of connection 2 | 60mm |
Working length connection 2 | 60mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Medium temperature (continuous) | 0 |
Max. operating pressure at 20 °C | 0bar |
Max. operating pressure at max. medium temperature | 0bar |
With thermal insulation | No |
Standard Dimension Ratio (SDR) | 0.0000 |
