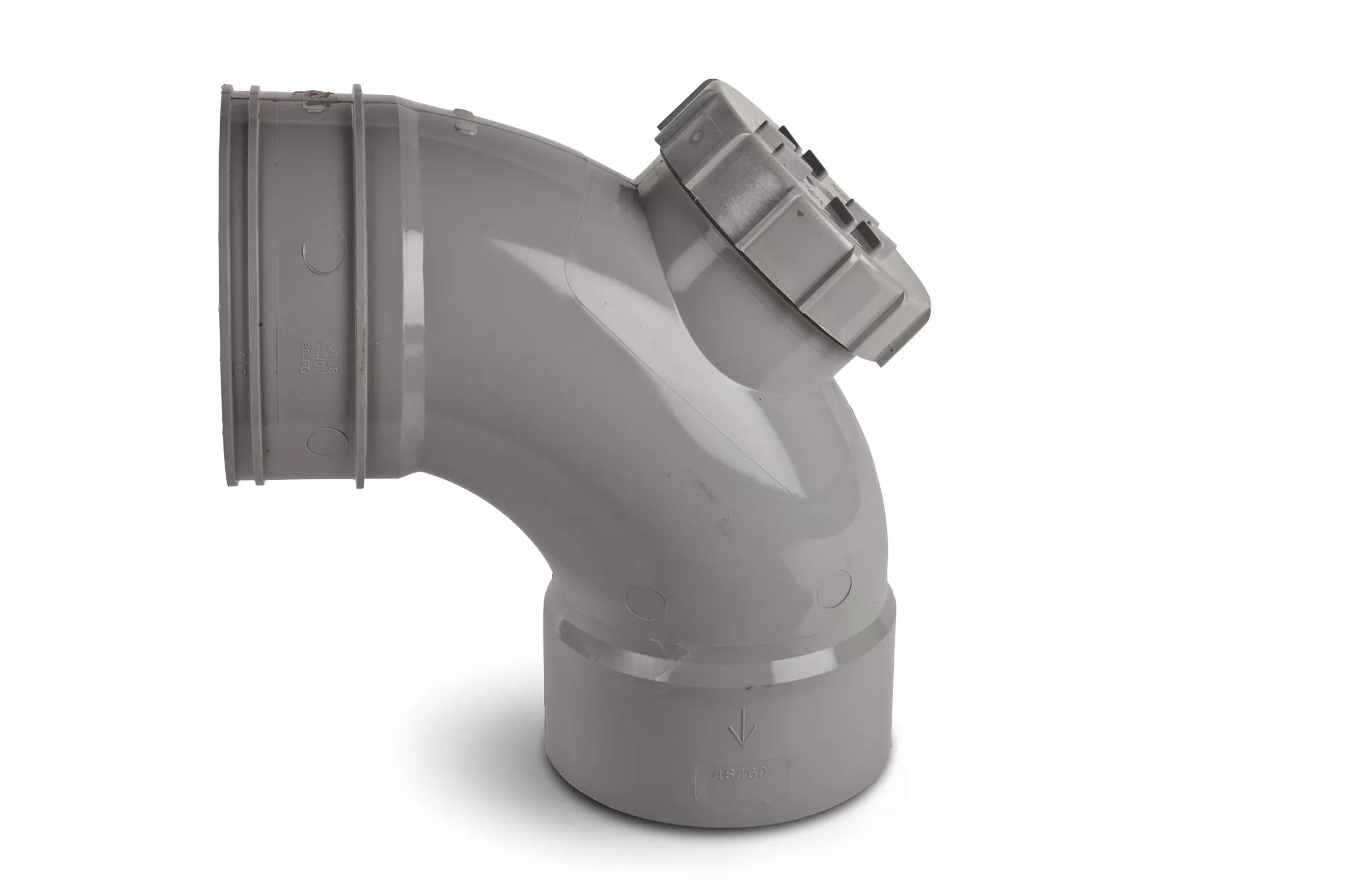

OsmaS PVCU Access Bend 90° GY 110 D/SW
| 1 bag | 5 pieces |
|---|
Product Identifiers
Catalog Code4S469G
EAN Number5011479238035
SAP number3040894
| 1 bag | 5 pieces |
|---|
| Label | Value |
|---|---|
Diameter of cleaning eye | 80mm |
Standard Dimension Ratio (SDR) | 0 |
ETIM Classification | EC010323 |
Material | Polyvinyl chloride (PVC) |
Connection 1 | Plastic welded end |
Connection 2 | Plastic welded end |
Working length | 65mm |
Material quality | PVC-U |
Ring stiffness class | Other |
Length of cleaning eye | 35mm |
Width of cleaning eye | 80mm |
Mounting of cover | Screw cover |
Shape | Bend |
End piece | Yes |
Length | 230mm |
Cover model | Round |
Outer pipe diameter | 118mm |
Nominal diameter | DN 110 |
