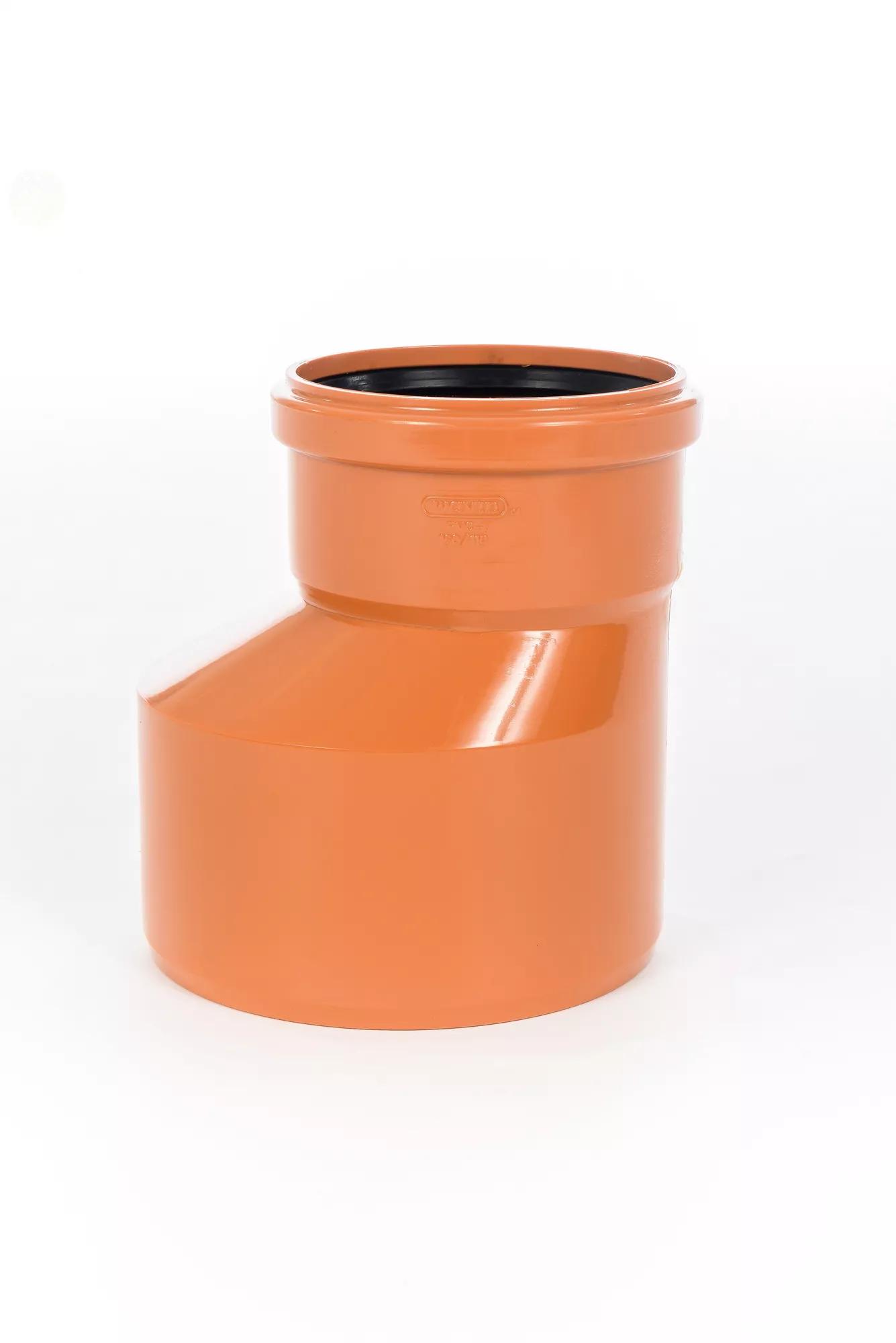

Wavin Sewer S/S Level Invert Reducer 160x110mm
| 1 bag | 20 pieces |
|---|---|
| 1 pallet box | 240 pieces |
Product Identifiers
Catalog CodeD6113
EAN Number5907444866962
SAP number3069832
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Polyvinyl chloride (PVC) |
Material quality connection 1 | PVC-U |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polyvinyl chloride (PVC) |
Material quality connection 2 | PVC-U |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Straight |
Model | 1-part |
Bend angle | 0° |
Bend radius | 0mm |
Reducing | Yes |
Eccentric | Yes |
System-specific | Yes |
Nominal diameter connection 1 | DN 150 |
Outer pipe diameter connection 1 | 160mm |
Wall thickness, connection 1 | 1mm |
Connection 1 | Spigot / tube end |
Nominal diameter connection 2 | DN 100 |
Outer pipe diameter connection 2 | 110mm |
Wall thickness, connection 2 | 1mm |
Main colour fitting | Orange |
Material sealing | SBR |
With buffer stud | No |
Zeta value | 1.2000 |
High tensile strength | No |
Length | 1mm |
Length of connection 1 | 1mm |
Working length connection 1 | 0mm |
Length of connection 2 | 1mm |
Working length connection 2 | 0mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Medium temperature (continuous) | 1 - 60 |
Max. operating pressure at 20 °C | 0bar |
With thermal insulation | No |
Ring stiffness class | SN4 |
Standard Dimension Ratio (SDR) | 0.0000 |
With sealing rings/gaskets | Yes |
Capped | No |
With drain valve | No |
With de-aerator | No |
FM quality mark | No |
LPCB quality mark | No |
ULC quality mark | No |
UL quality mark | No |
VdS quality mark | No |
KIWA certified | No |
