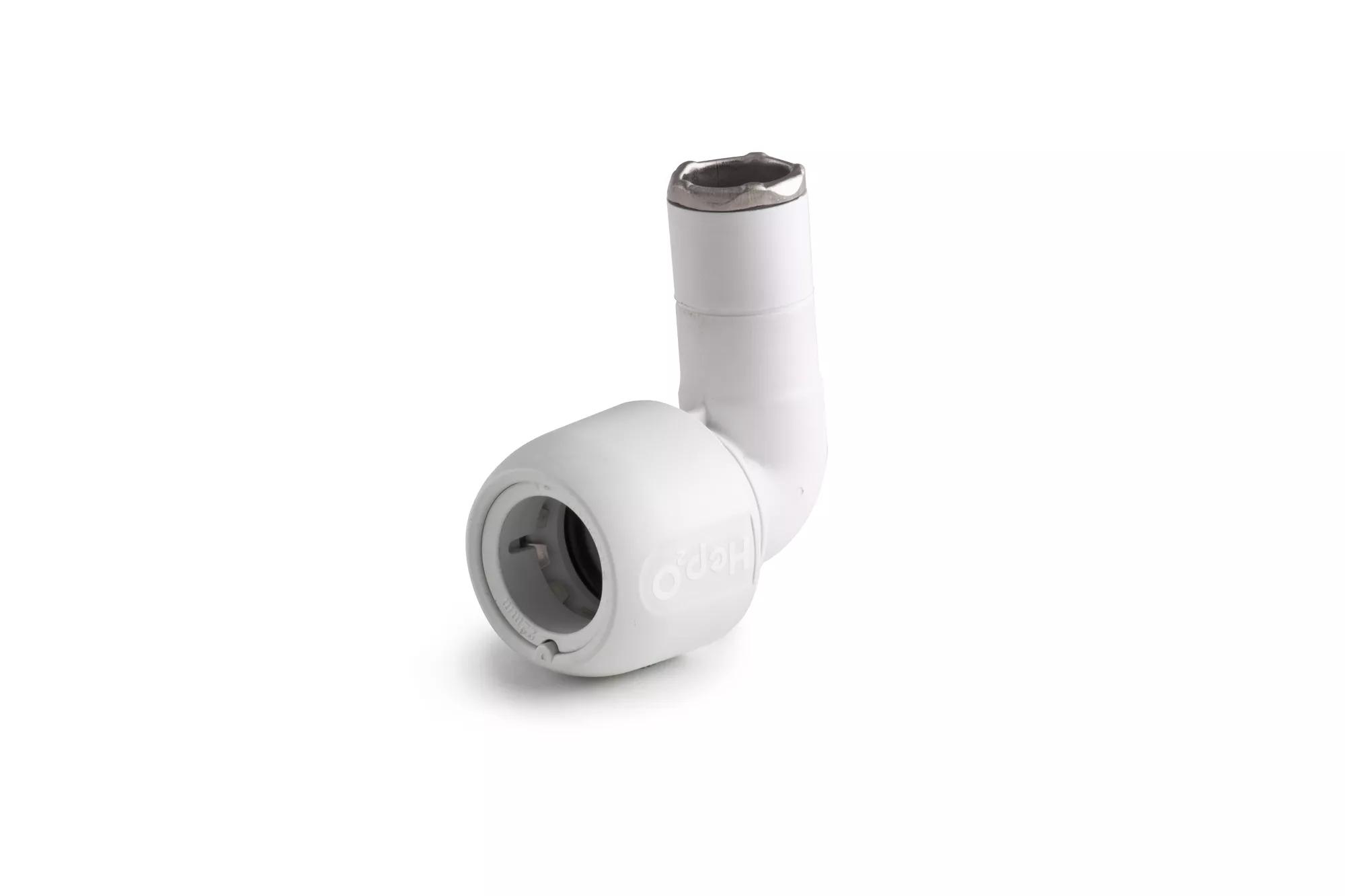

Hep2O Spigot Elbow 90° 15mm White
Product Identifiers
Catalog CodeHD4/15W
EAN Number5027888267573
SAP number3029612
| Label | Value |
|---|---|
| Wavin Shape | Elbow |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polybutylene (PB) |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polybutylene (PB) |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Elbow (fitting) |
| Model | 2-part |
| Bend angle | 90° |
| Bend radius | 0mm |
| Reducing | No |
| Eccentric | No |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 15 |
| Outer pipe diameter connection 1 | 29mm |
| Wall thickness, connection 1 | 1.85mm |
| Connection 1 | Insert (push coupling) |
| Nominal diameter connection 2 | DN 15 |
| Outer pipe diameter connection 2 | 29mm |
| Wall thickness, connection 2 | 1.85mm |
| Connection 2 | Spigot / tube end |
| Main colour fitting | White |
| Zeta value | 0.0000 |
| Length | 61mm |
| Length of connection 1 | 32mm |
| Working length connection 1 | 32mm |
| Length of connection 2 | 32mm |
| Working length connection 2 | 32mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 5 - 95 |
| Max. operating pressure at 20 °C | 12bar |
| Max. operating pressure at max. medium temperature | 6bar |
| With thermal insulation | No |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | No |
| Capped | No |
| KIWA certified | Yes |
| Gastec QA mark | No |
