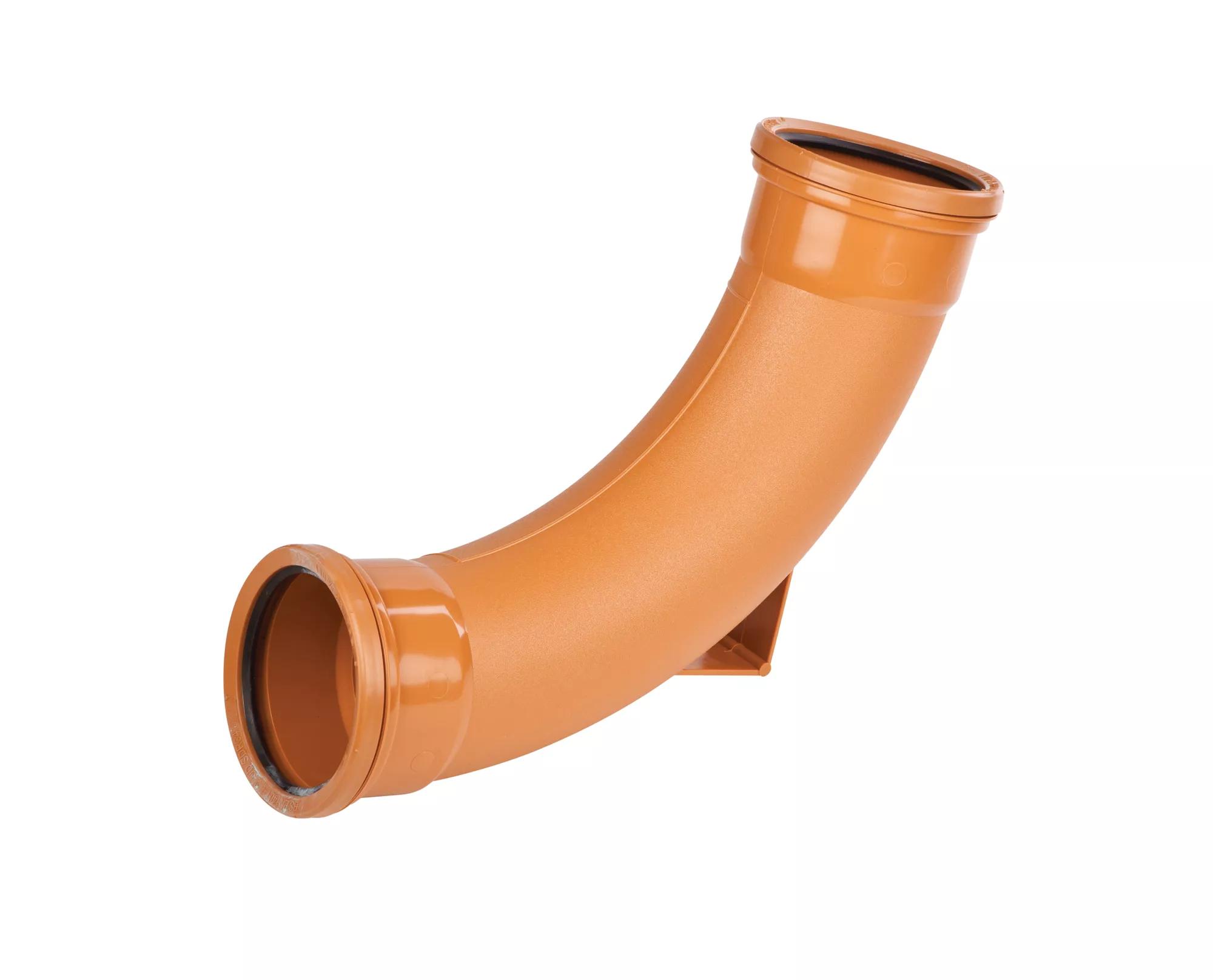

Wavin Sewer D/S Long Radius Bend 87.5° 110mm

  • 1 bag
    5 pieces
  • 1 pallet
    75 pieces
Product Identifiers
Catalog CodeD4112
EAN Number5098987040664
SAP number3066794

LabelValue
ETIM Classification

EC003024

Material connection 1

Polyvinyl chloride (PVC)

Material quality connection 1

PVC-U

Surface protection connection 1

Untreated

Surface treatment connection 1

Untreated

Material connection 2

Polyvinyl chloride (PVC)

Material quality connection 2

PVC-U

Surface protection connection 2

Untreated

Surface treatment connection 2

Untreated

Shape

Bend

Model

3-part

Bend angle

87.5°

Bend radius

0mm

ReducingNo
System-specificYes
Nominal diameter connection 1

DN 110

Outer pipe diameter connection 1

132mm

Wall thickness, connection 1

3.2mm

Connection 1

Slide sleeve

Nominal diameter connection 2

DN 110

Outer pipe diameter connection 2

132mm

Wall thickness, connection 2

3.2mm

Connection 2

Slide sleeve

Main colour fitting

Brown

Material sealing

Ethylene-propylene diene monomer rubber (EPDM)

Zeta value

0.0000

Length

320mm

Length of connection 1

58mm

Working length connection 1

58mm

Length of connection 2

58mm

Working length connection 2

58mm

Wrench width

0mm

Wrench width union nut

0mm

Medium temperature (continuous)

0

Max. operating pressure at 20 °C

0bar

Max. operating pressure at max. medium temperature

0bar

With thermal insulationNo
Standard Dimension Ratio (SDR)

0.0000

With sealing rings/gasketsYes
CappedNo
KIWA certifiedYes
