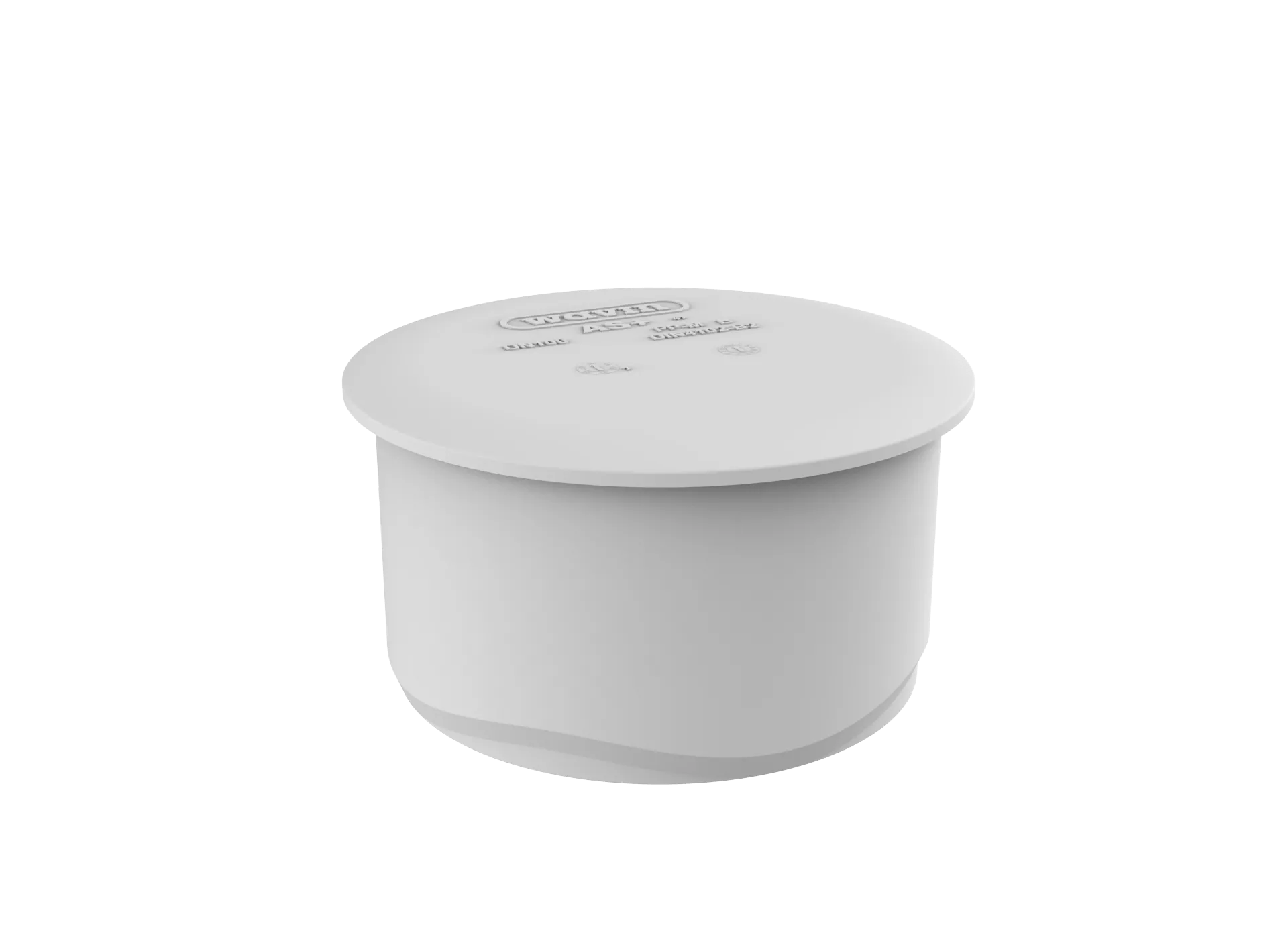

Wavin AS+ end cap 160mm
Product Identifiers
Catalog Code3080105
EAN Number4026294951077
SAP number3080105
| Label | Value |
|---|---|
| ETIM Classification | EC003023 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Other |
| Surface treatment connection 1 | Untreated |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 150 |
| Outer pipe diameter connection 1 | 160mm |
| Wall thickness, connection 1 | 5.6mm |
| Connection 1 | Other |
| Max. operating pressure at 20 °C | 0.5bar |
| Material sealing | SBR |
| Main colour fitting | Grey |
| Length of connection 1 | 71.2mm |
| Working length connection 1 | 71.2mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | -10 - 90 |
| Max. operating pressure at max. medium temperature | 0.5bar |
| Standard Dimension Ratio (SDR) | 29.0000 |
| With sealing rings/gaskets | Yes |
| Capped | No |
| DVGW quality mark for water | Yes |
| Gastec QA mark | No |
| KOMO certified | No |
