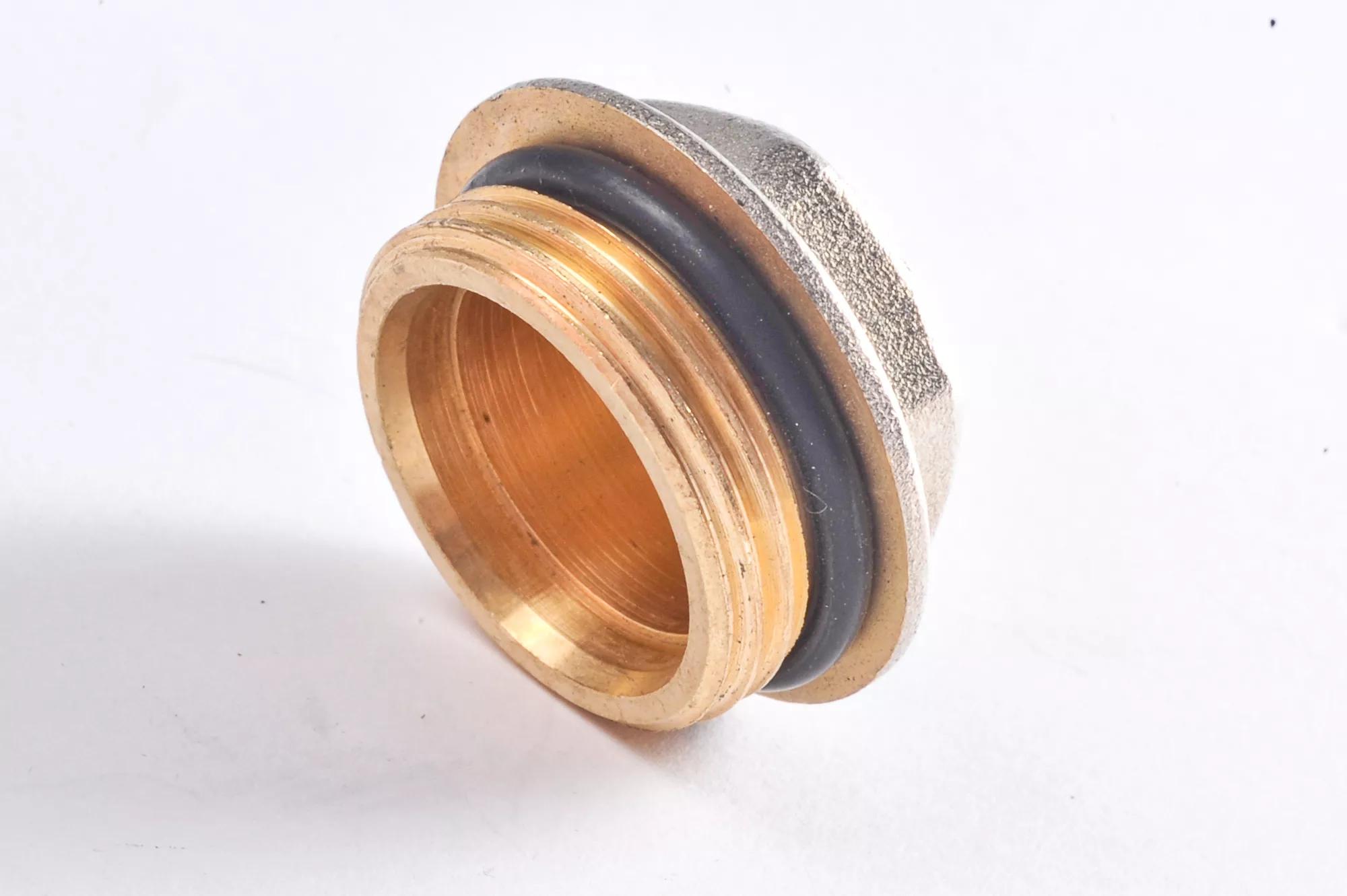

Brass Manifold Cap m/t 3/4"
| 1 bag | 10 pieces |
|---|
Product Identifiers
Catalog CodeK360395
EAN Number8018464171367
SAP number4026705
| Label | Value |
|---|---|
ETIM Classification | EC003023 |
Material connection 1 | Brass |
Material quality connection 1 | Other |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
System-specific | Yes |
Nominal diameter connection 1 | 3/4 inch (20) |
Outer pipe diameter connection 1 | 20mm |
Wall thickness, connection 1 | 2.5mm |
Connection 1 | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
Max. operating pressure at 20 °C | 10bar |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
Main colour fitting | Other |
Length of connection 1 | 16.5mm |
Working length connection 1 | 8.5mm |
Wrench width | 23mm |
Wrench width union nut | 25.4mm |
Max. operating pressure at max. medium temperature | 6bar |
Ring stiffness class | Other |
Standard Dimension Ratio (SDR) | 0.0000 |
With sealing rings/gaskets | Yes |
With drain valve | No |
With de-aerator | No |
Capped | No |
FM quality mark | No |
UL quality mark | No |
ULC quality mark | No |
LPCB quality mark | No |
