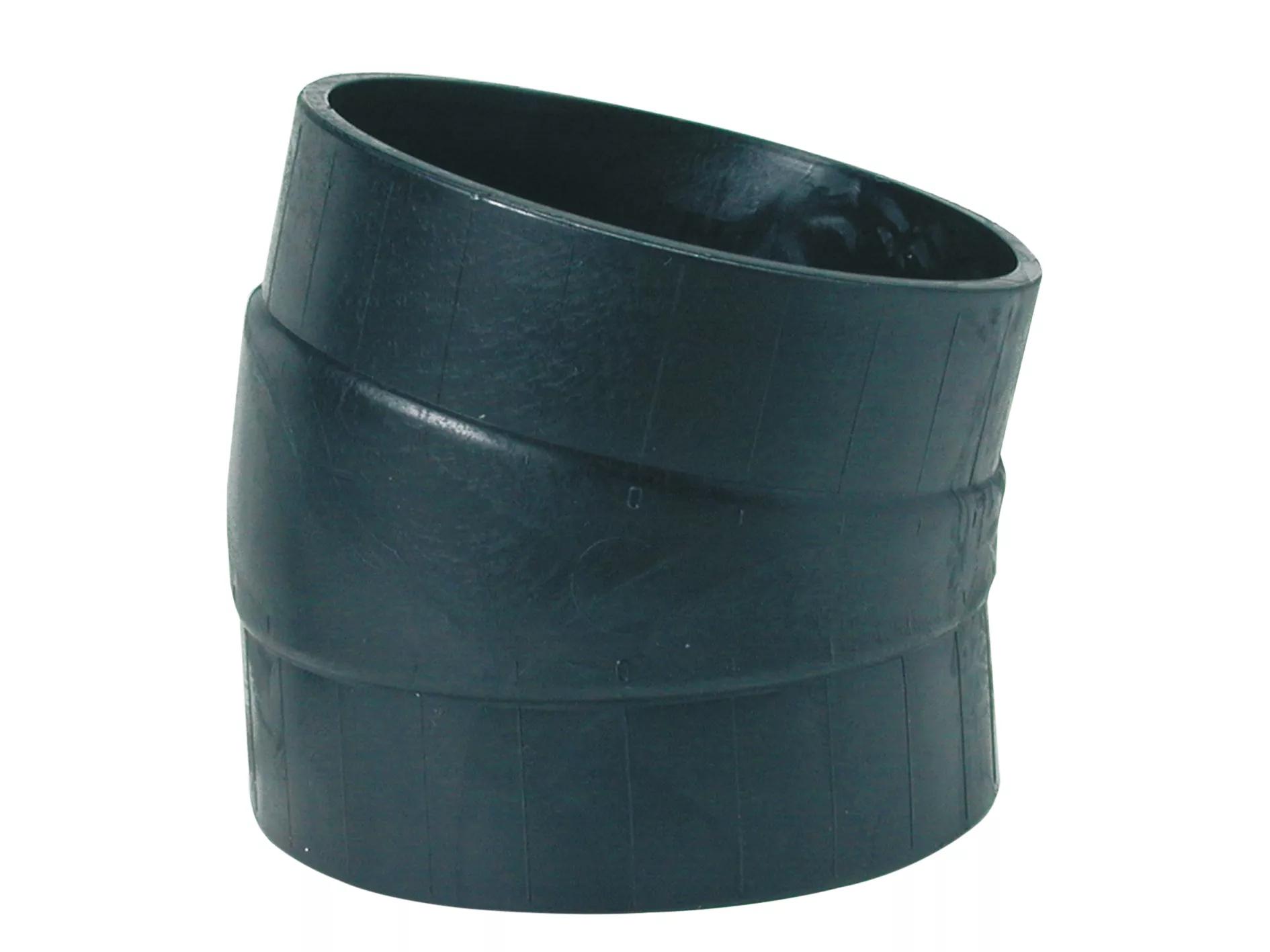

HT-PE Elbow segmented 15° 125
Product Identifiers
EAN Number4026294356667
SAP number3017994
Commercial
| Label | Value |
|---|---|
| Wavin Shape | Elbow |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polyethylene (PE) |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polyethylene (PE) |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Elbow (fitting) |
| Model | 1-part |
| Bend angle | 15° |
| Bend radius | 0mm |
| Reducing | No |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 125 |
| Outer pipe diameter connection 1 | 125mm |
| Wall thickness, connection 1 | 4.8mm |
| Nominal diameter connection 2 | DN 125 |
| Outer pipe diameter connection 2 | 125mm |
| Wall thickness, connection 2 | 4.8mm |
| Main colour fitting | Black |
| Zeta value | 0.0000 |
| High tensile strength | Yes |
| Length | 150mm |
| Length of connection 1 | 150mm |
| Working length connection 1 | 420mm |
| Length of connection 2 | 150mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 23 - 90 |
| Max. operating pressure at 20 °C | 0.5bar |
| Max. operating pressure at max. medium temperature | 0bar |
| With thermal insulation | No |
| Ring stiffness class | Other |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | Yes |
| Capped | No |
| DIN-CERTCO certificate | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
