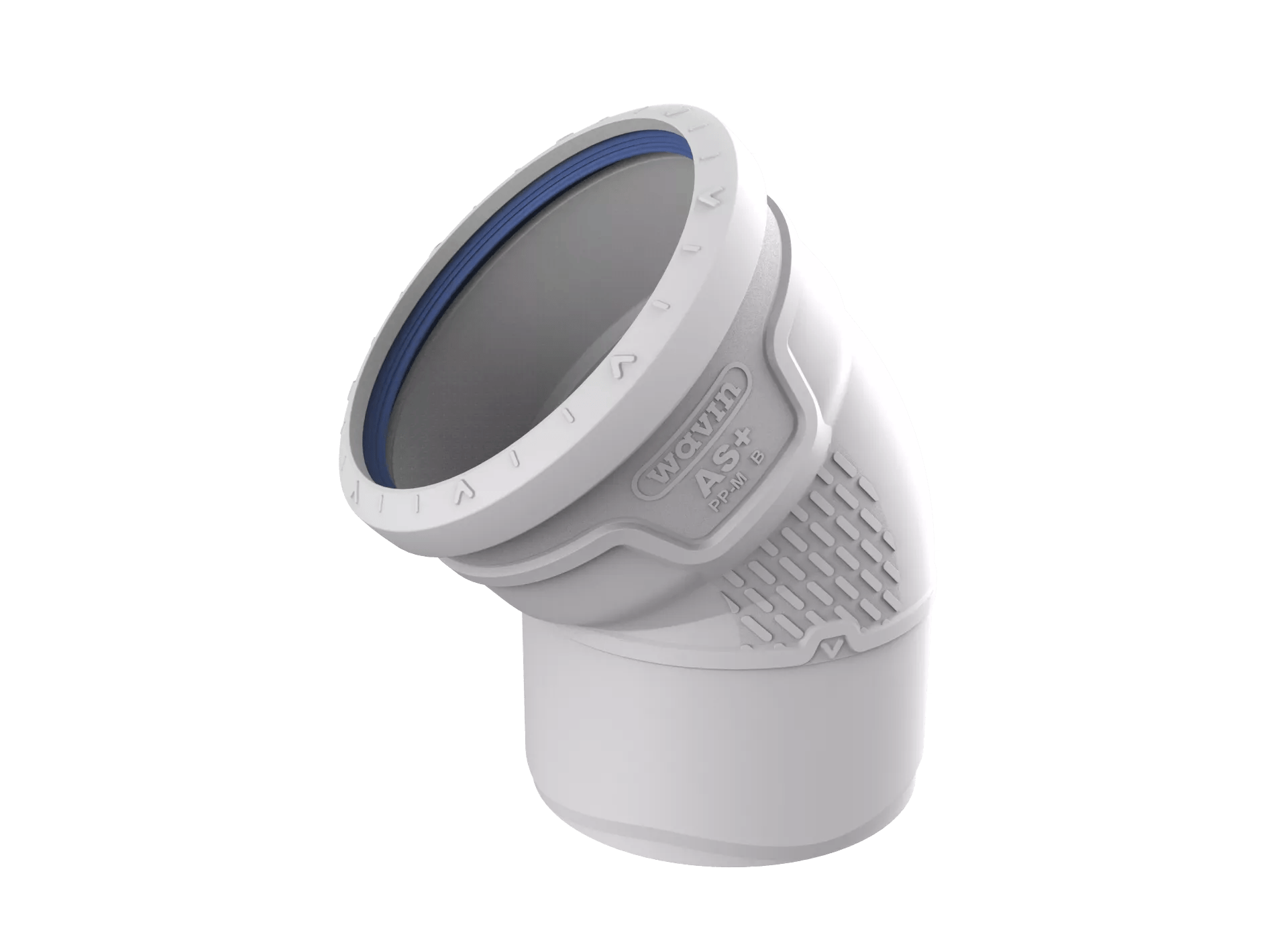

Wavin AS+ Bend 200 45°
Product Identifiers
Catalog Code3079963
EAN Number4026294950810
SAP number3079963
Commercial
| Label | Value |
|---|---|
| Product Shape | Bend |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Other |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polypropylene (PP) |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Other |
| Surface treatment connection 2 | Untreated |
| Shape | Bend |
| Model | 1-part |
| Bend angle | 45° |
| Bend radius | 0mm |
| Reducing | No |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 200 |
| Outer pipe diameter connection 1 | 200mm |
| Wall thickness, connection 1 | 6mm |
| Connection 1 | Slide end |
| Nominal diameter connection 2 | DN 200 |
| Outer pipe diameter connection 2 | 200mm |
| Wall thickness, connection 2 | 6mm |
| Connection 2 | Slide sleeve |
| Main colour fitting | Grey |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| Zeta value | 0.0000 |
| High tensile strength | No |
| Length | 296.1mm |
| Length of connection 1 | 266.1mm |
| Working length connection 1 | 168.4mm |
| Length of connection 2 | 266.1mm |
| Working length connection 2 | 266.1mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | -10 - 90 |
| Max. operating pressure at 20 °C | 0.5bar |
| Max. operating pressure at max. medium temperature | 0.5bar |
| With thermal insulation | No |
| Ring stiffness class | SN4 |
| Standard Dimension Ratio (SDR) | 33.3300 |
| With sealing rings/gaskets | Yes |
| Capped | No |
| DVGW quality mark for water | Yes |
| Gastec QA mark | No |
| KOMO certified | No |
