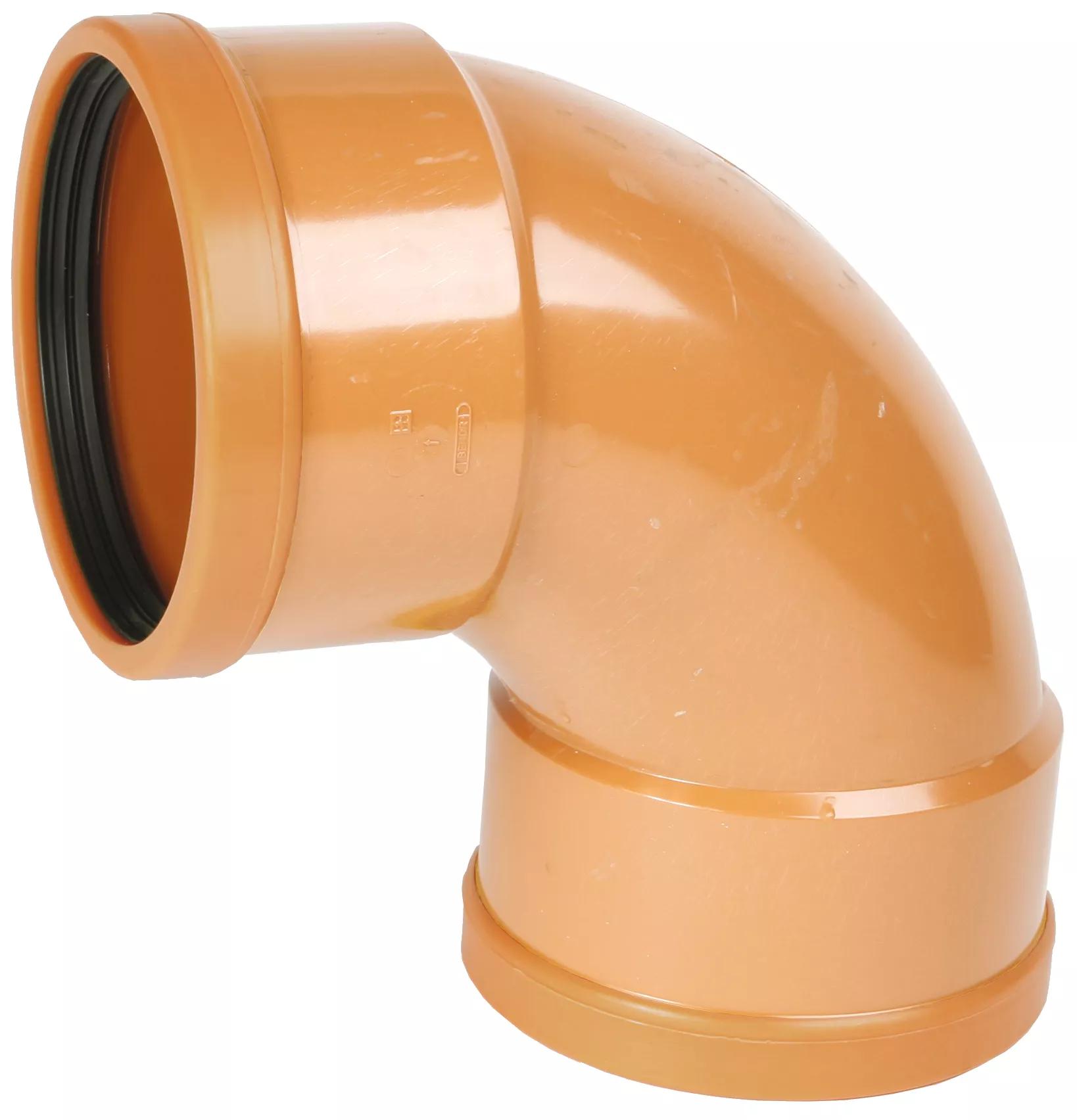

Wavin Sewer D/S Swept Bend 92° 110mm
| 1 box | 20 pieces |
|---|---|
| 1 pallet | 160 pieces |
Product Identifiers
Catalog CodeD6040
EAN Number8712148587986
SAP number3082832
| 1 box | 20 pieces |
|---|---|
| 1 pallet | 160 pieces |
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Polyvinyl chloride (PVC) |
Material quality connection 1 | PP-H |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polyvinyl chloride (PVC) |
Material quality connection 2 | PP-H |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Bend |
Model | 1-part |
Bend angle | 88° |
Bend radius | 0mm |
Reducing | No |
Eccentric | No |
System-specific | No |
Nominal diameter connection 1 | DN 110 |
Outer pipe diameter connection 1 | 110mm |
Wall thickness, connection 1 | 3.2mm |
Connection 1 | Slide sleeve |
Nominal diameter connection 2 | DN 110 |
Outer pipe diameter connection 2 | 110mm |
Wall thickness, connection 2 | 3.2mm |
Connection 2 | Slide sleeve |
Main colour fitting | Brown |
Material sealing | Thermoplastic elastomer (TPE) |
With buffer stud | Yes |
Zeta value | 0.0000 |
High tensile strength | No |
Length | 303mm |
Length of connection 1 | 90mm |
Working length connection 1 | 58.5mm |
Length of connection 2 | 90mm |
Working length connection 2 | 58.5mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Medium temperature (continuous) | 1 - 60 |
Max. operating pressure at 20 °C | 0bar |
Max. operating pressure at max. medium temperature | 0bar |
With thermal insulation | No |
Ring stiffness class | SN8 |
Standard Dimension Ratio (SDR) | 34.0000 |
Capped | No |
With drain valve | No |
With de-aerator | No |
Gastec QA mark | No |
KOMO certified | Yes |
