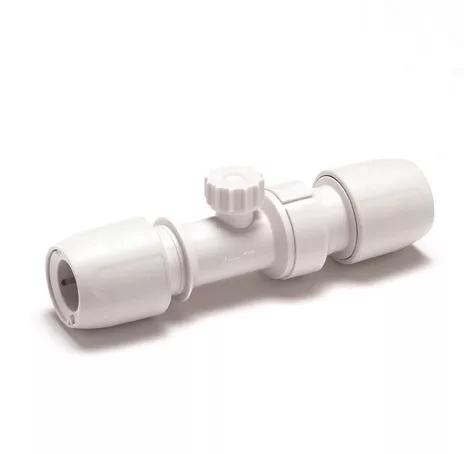

Hep2O Double Check Valve 15
Product Identifiers
Catalog CodeHX72/15W
EAN Number5027888268563
SAP number3030713
| Label | Value |
|---|---|
| ETIM Classification | EC011469 |
| Housing material | Other |
| Material quality | Other |
| Surface protection | Untreated |
| Nominal diameter | DN 15 |
| Outer pipe diameter all connections | 15mm |
| Connections | Clamp connection |
| Article compression class | PN 12.5 |
| Flange compression class | Other |
| Valve shape | Flap |
| Low noise | No |
| Sealing | Other |
| With balance weight | No |
| Kvs value | 0.0000 |
| With lock spring | No |
| Zeta value | 0.0000 |
| Working length connection 1 | 32mm |
| Working length connection 2 | 32mm |
| Height | 37mm |
| Angle of non-return valve | 90° |
| Max. operating pressure at 20 °C | 12bar |
| FM quality mark | No |
| UL quality mark | No |
| ULC quality mark | No |
| Suitable for potable water | Yes |
| Suitable for central heating water | Yes |
| KIWA certified | Yes |
