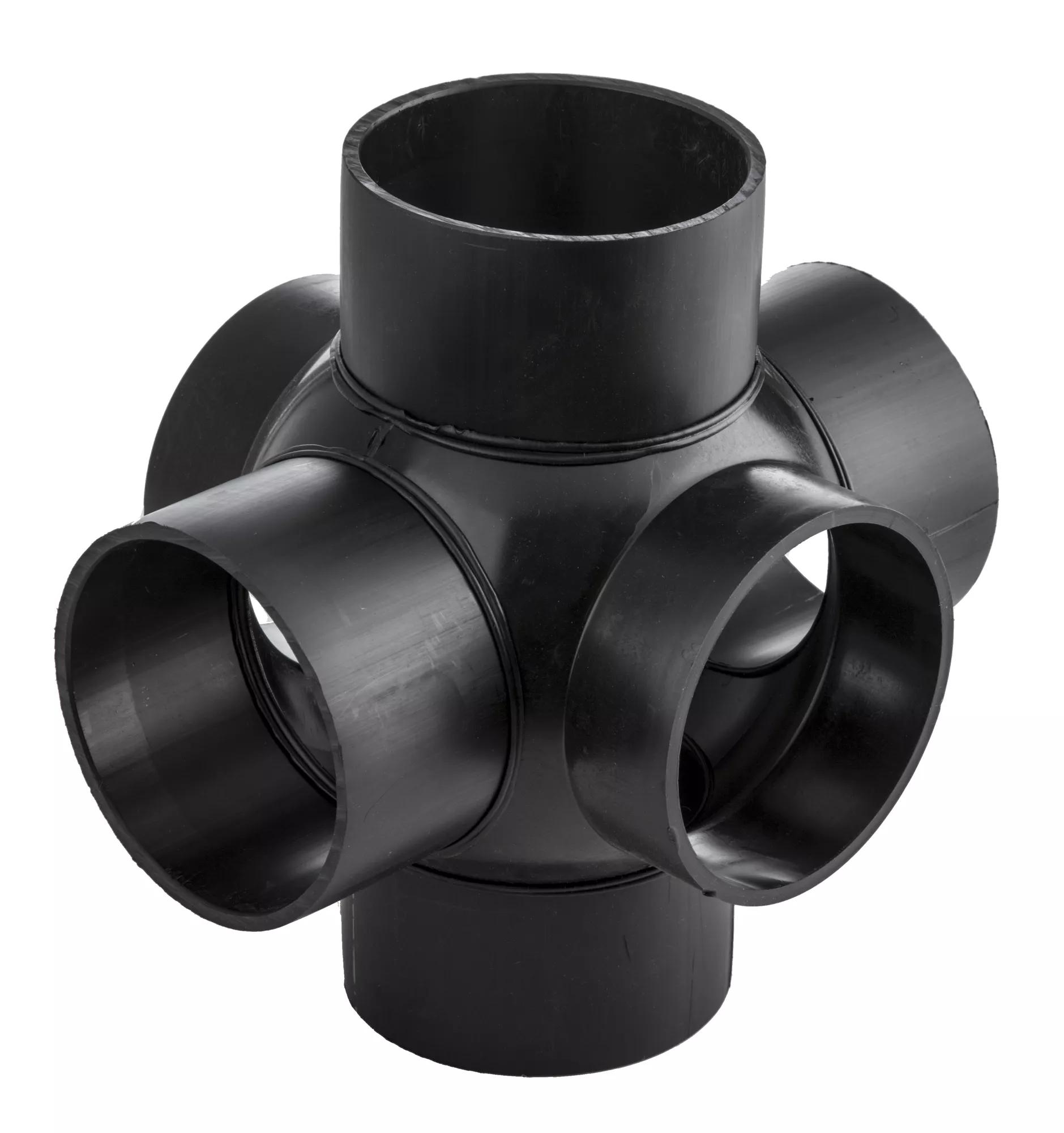

PE Convex Branch Model F BK 110x110 S12.
| 1 box | 5 pieces |
|---|---|
| 1 pallet | 60 pieces |
Product Identifiers
Catalog Code3003777
EAN Number8018464017849
SAP number3003777
| 1 box | 5 pieces |
|---|---|
| 1 pallet | 60 pieces |
| Label | Value |
|---|---|
Nominal diameter connection 2 | DN 100 |
Wrench width | 0mm |
Wall thickness connecting pipe, connection 2 | 0mm |
Length of connection 4 | 120mm |
Wall thickness, connection 2 | 4.2mm |
Outer pipe diameter connection 3 | 110mm |
With approval for TÜV | No |
Working length connection 4 | 0mm |
Wall thickness connecting pipe, connection 4 | 0mm |
DVGW quality mark for water | No |
Material quality | PE-80 |
Contour code | Other |
Wrench width union nut | 0mm |
Nominal diameter connection 1 | DN 100 |
Working length connection 3 | 0mm |
Nominal diameter connection 4 | DN 100 |
Wall thickness, connection 1 | 4.2mm |
With thermal insulation | No |
Wall thickness connecting pipe, connection 3 | 0mm |
Outer pipe diameter connection 4 | 110mm |
ETIM Classification | EC003026 |
Material | Polyethylene (PE) |
Length of connection 3 | 100mm |
Multi-part | Yes |
Main colour fitting | Black |
Capped | No |
VdS quality mark | No |
Connection 1 | Welding connection |
Ring stiffness class | Other |
Surface protection | Untreated |
Connection 2 | Welding connection |
DVGW quality mark for gas | No |
Gastec QA - AR 214 (H2) | No |
Standard Dimension Ratio (SDR) | 32 |
Surface treatment | Untreated |
Wall thickness, connection 3 | 4.2mm |
Max. operating pressure at 20 °C | 3.2bar |
Length of connection 1 | 100mm |
With sealing rings/gaskets | Yes |
Type approval according to BBR/EKS | No |
Outer pipe diameter connection 1 | 110mm |
Connection 3 | Welding connection |
DIN-CERTCO certificate | No |
Outer pipe diameter connection 2 | 110mm |
Working length connection 1 | 0mm |
Length of connection 2 | 120mm |
Working length connection 2 | 0mm |
Reducing | No |
Nominal diameter connection 3 | DN 100 |
System-specific | Yes |
Model | Ball piece |
Connection 4 | Welding connection |
Flange compression class | Other |
Wall thickness, connection 4 | 4.2mm |
Wall thickness connecting pipe, connection 1 | 0mm |
