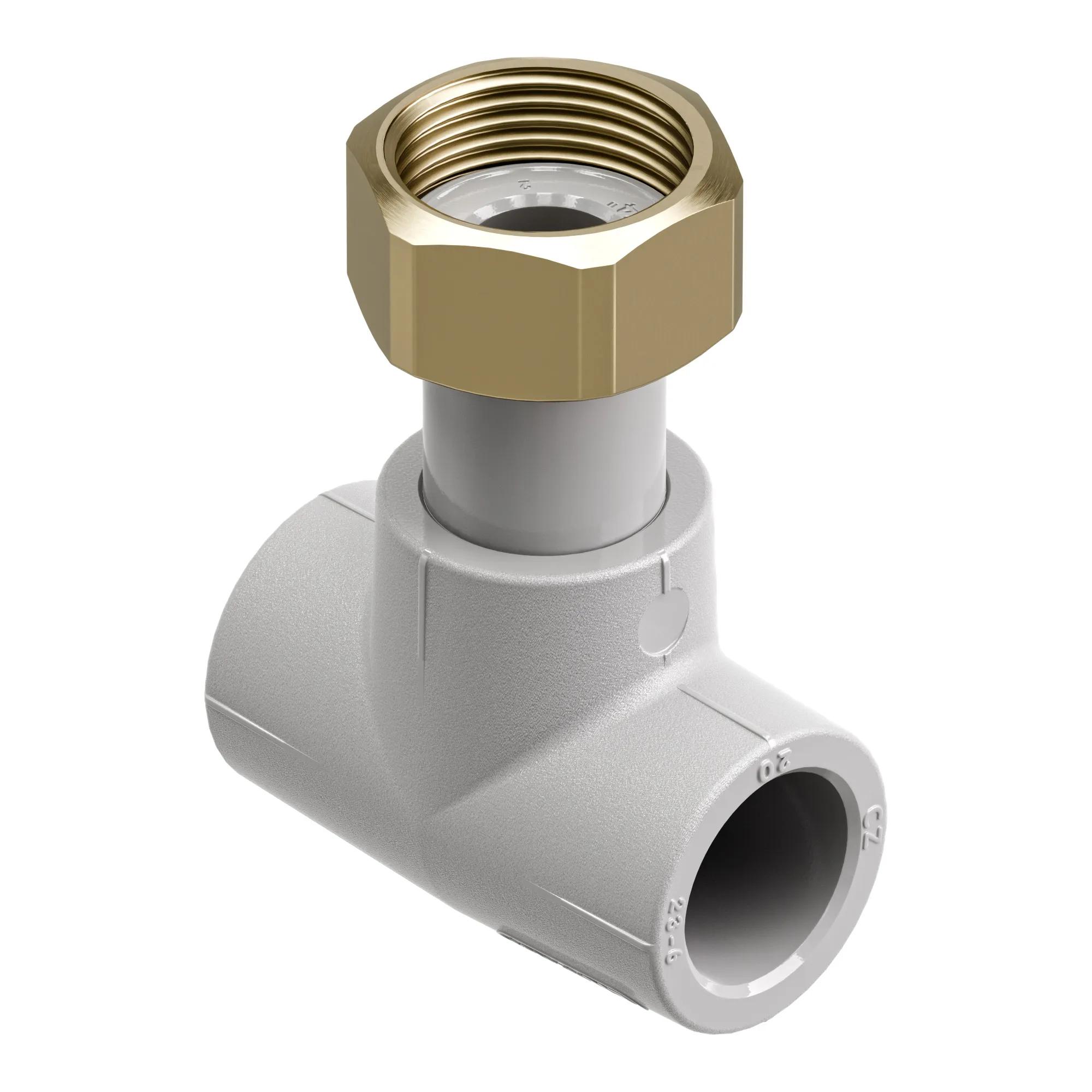

PPR Tee Cap nut GY 20x3/4" PN20
Product Identifiers
Catalog CodeSTKM02025X
EAN Number8595185420641
SAP number3053193
Commercial
| Label | Value |
|---|---|
| Wavin Shape | Tee |
| Label | Value |
|---|---|
| ETIM Classification | EC003025 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | PP-R |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Brass |
| Material quality connection 2 | PP-R |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Material connection 3 | Brass |
| Material quality connection 3 | CuZn39Pb2 (CW612N) |
| Surface protection connection 3 | Nickel-plated |
| Surface treatment connection 3 | Untreated |
| Model | T-piece |
| Angle | 0° |
| Swept entry type (with inner radius) | No |
| Reducing | Yes |
| Multi-part | No |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 20 |
| Outer pipe diameter connection 1 | 20mm |
| Wall thickness, connection 1 | 0mm |
| Connection 1 | Plastic welded end |
| Contour code connection 1 | Other |
| Nominal diameter connection 2 | 3/4 inch (20) |
| Outer pipe diameter connection 2 | 20mm |
| Wall thickness, connection 2 | 0mm |
| Connection 2 | Plastic welded end |
| Contour code connection 2 | Other |
| Nominal diameter connection 3 | DN 20 |
| Outer pipe diameter connection 3 | 20mm |
| Wall thickness, connection 3 | 0mm |
| Connection 3 | External thread conical (NPT) |
| Contour code connection 3 | Other |
| Flange compression class | Other |
| Flange standard | Other |
| Main colour fitting | Grey |
| Length of connection 1 | 0mm |
| Working length connection 1 | 0mm |
| High tensile strength | No |
| Length of connection 2 | 0mm |
| Working length connection 2 | 0mm |
| Length of connection 3 | 0mm |
| Working length connection 3 | 0mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Max. operating pressure at 20 °C | 0bar |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | No |
| With drain valve | No |
| With de-aerator | No |
| With thermal insulation | No |
| With buffer stud | No |
| Capped | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
