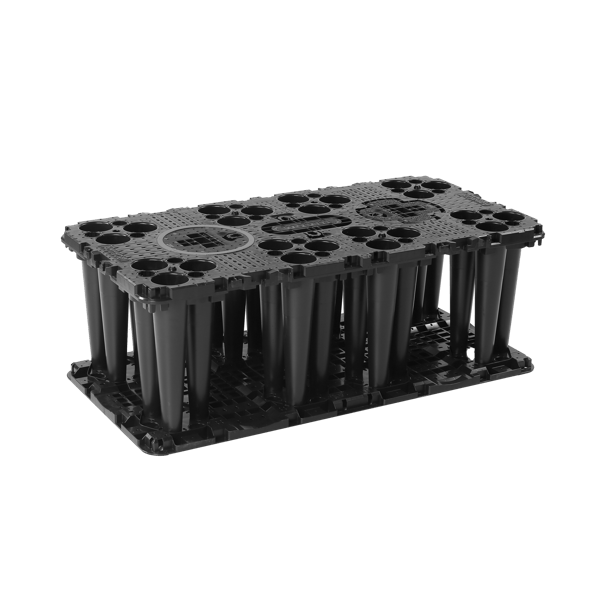

AquaCell Next Gen (NG)

The AquaCell Next Gen (NG) system equips contractors, civil engineers and installers with a powerful new advance in the construction of surface water management tanks. Manufactured in the UK from 100% recycled and recyclable plastic, it represents the future of sustainable drainage. Faster, easier and more sustainable attenuation tank installation.

Why choose AquaCell NG for Surface Water Management?

Cost & Time Savings – 3 Times Faster to Install

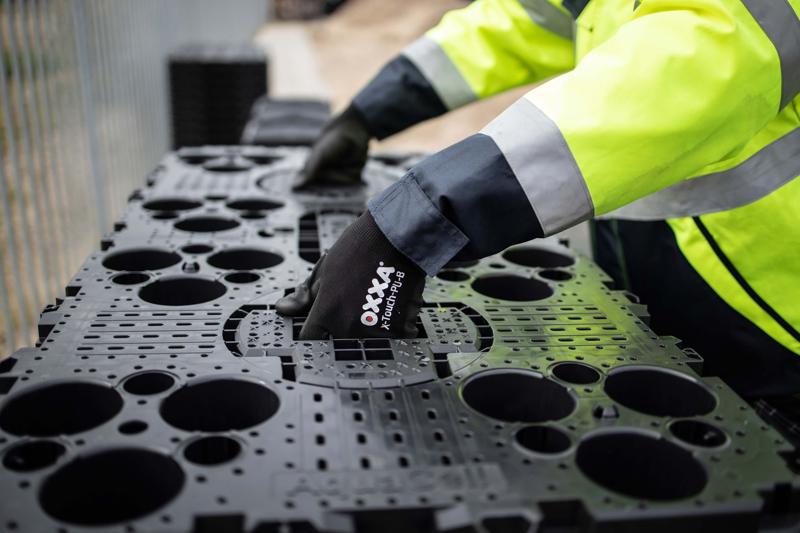

Lightweight units with handgrips, with integrated connectors and push fit functionality. No clips, pegs or tools are needed!
Market Leading Sustainability Credentials
4 times less deliveries for 4 times less CO2 emissions, 100% recyclable at end of use and manufactured in UK from 100% recycled plastic
4 Times Less Storage Space & Manual Handling

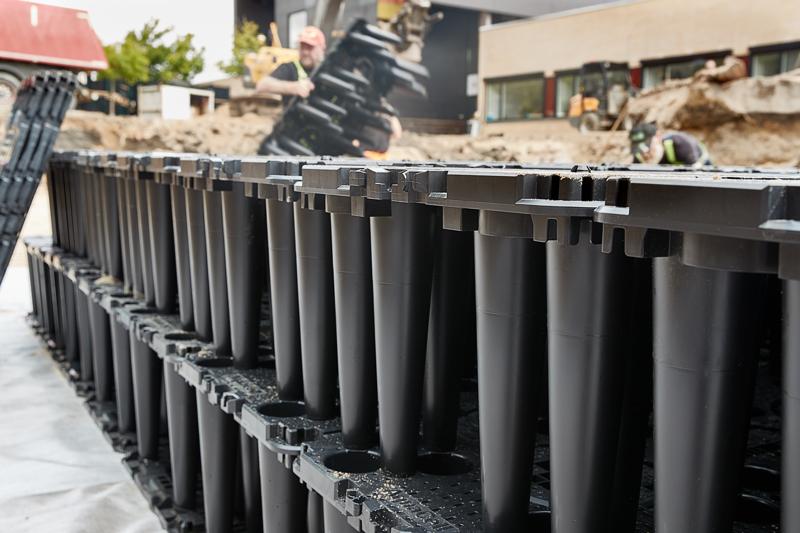

Nested design for neat stacking, with deduced handling & plant movement on site for easier logistical planning
High Product Availability
Available to order at a large number of merchants around UK with short lead times while being available to deliver direct to site.

Key Product Features

- Open inspection channels with no internal walls

- Option to interlock 2 units for deeper and heavy traffic situations

- Modular design can easily be configured to fit within any site constraints

For support on your next project, please get in touch

Request a Consultation
Email Us
Call Us
All you need to know 60-second video:

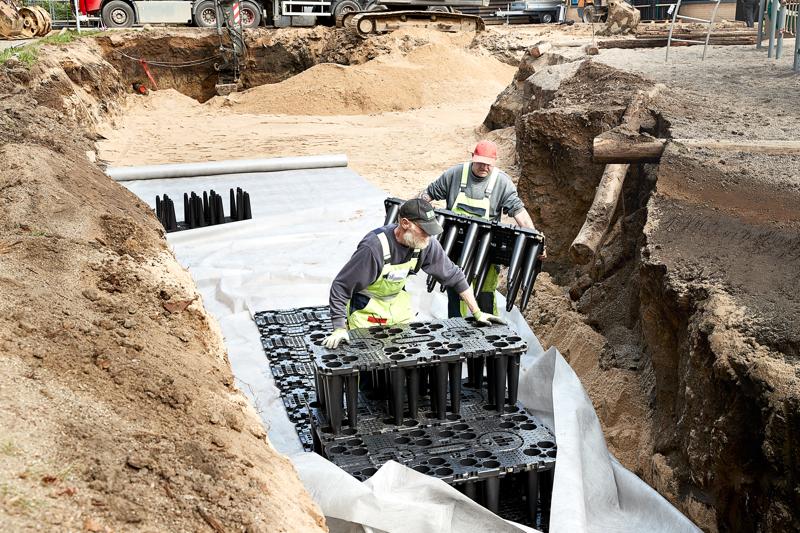

Watch AquaCell NG being Installed

Find out how you can save costs, time and space as well as cutting your CO2 footprint by using AquaCell NG.

Speed Comparison

56 second video: Watch the next generation of attenuation arrive, as an AquaCell NG tank is constructed 3 x faster – more than tripling efficiency.

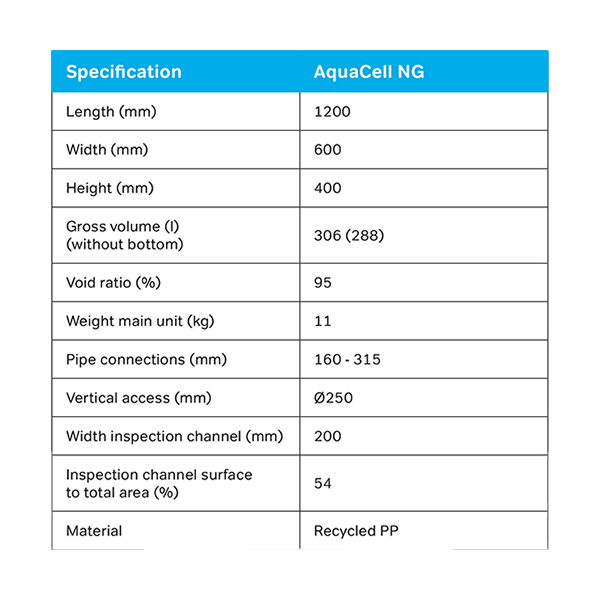

Technical Specifications

Specification

AquaCell NG

Length (mm)

1200

Width (mm)

600

Height (mm)

400

Gross Volume (L) (without bottom)

306 (228)

Void Ratio (%)

94 - 96

Weight Main Unit (KG)

11

Pipe Connections (mm)

160 - 315

Vertical Access (mm)

Ø250

Width Inspection Channel (mm)

200

Inspection Channel Surface to Total Area (%)

54

Material

Recycled PP

Download PIM Here

Case Study: M&J Evans

M&J Evans used AquaCell NG on their 100 new build development for Bellway Homes.

They needed:

Sustainability: To meet client requirements & targets.

Simple delivery: To lessen the impact on other trades.

Efficient storage: Limited space on site.

Rapid install: Cold weather safety concerns for the install team.

"The product is very easy to be delivered to site and store due to the ingenious stacking system and installation was quick and nonproblematic. As always, the expertise and product support from Wavin representatives was second to none. Overall, we are very pleased with the whole product and installation and will definitely be our preferred product going forward. " - Adam Newsome, Contracts Manager, M&J Evans

Read Full Case Study Here

Applications

Landscaped Areas
Maintain healthy gardens, lawns and green spaces by preventing waterlogging and erosion.
Residential Developments
Helps keep residential areas dry after rain and free from puddles, ensuring safer neighborhoods.
Parking Lots and Roads
Prevents flooding and water damage in parking lots and on roads, supporting safer driving.
Industrial and Commercial
Ensures smooth operations by managing water runoff in industrial and commercial zones.
