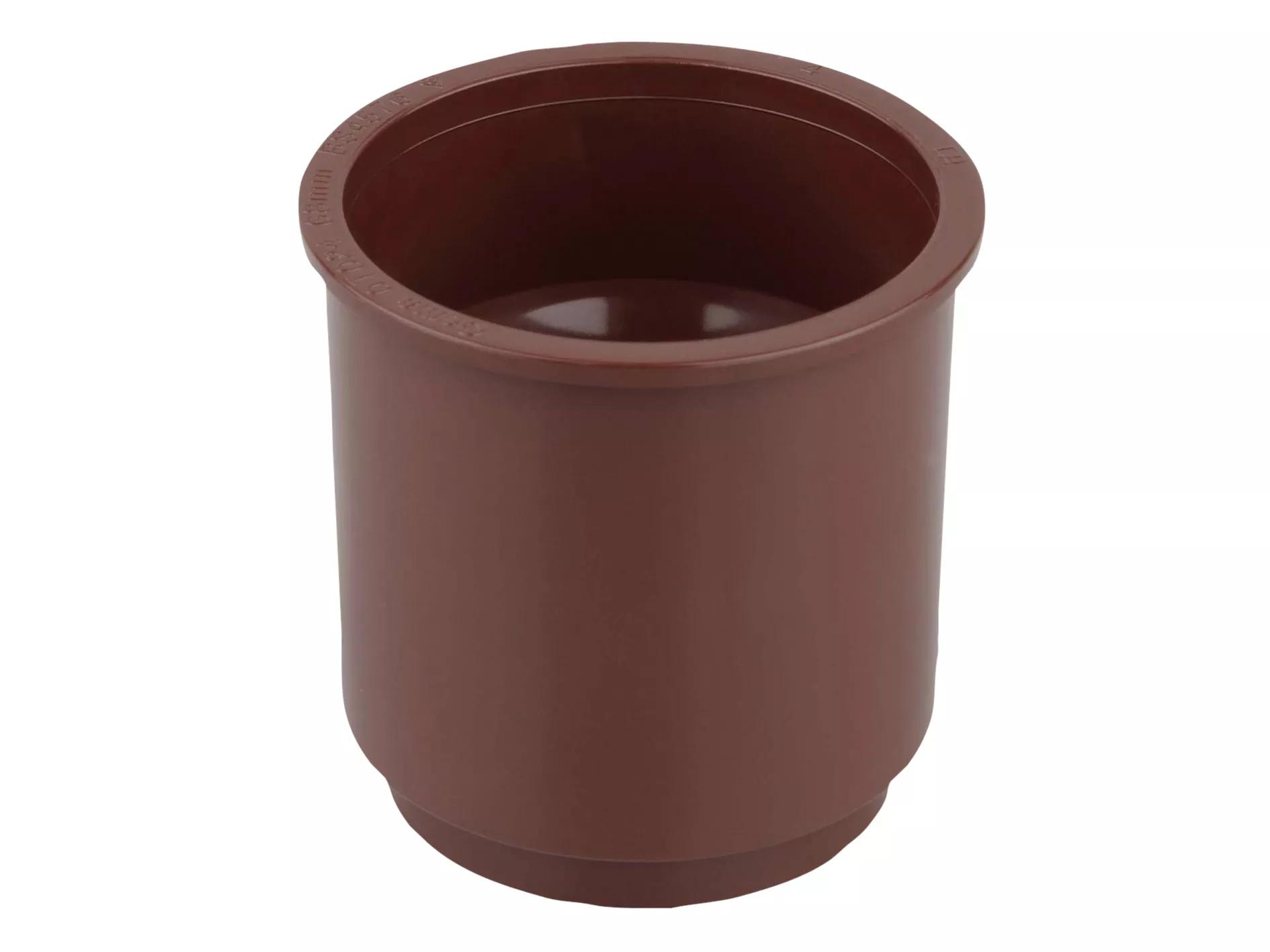

OsRRL PVCU Pipe Connector BN 68
Product Identifiers
Catalog CodeT024N
EAN Number5011479101247
SAP number3035554
Commercial
LabelValue
Wavin ShapeCoupler

LabelValue
ETIM ClassificationEC003024
Material connection 1Polyvinyl chloride (PVC)
Material quality connection 1PVC-U
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Polyvinyl chloride (PVC)
Material quality connection 2PVC-U
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Bend angle0°
Bend radius0mm
ReducingNo
EccentricNo
System-specificYes
Nominal diameter connection 1DN 65
Outer pipe diameter connection 168.7mm
Wall thickness, connection 12.1mm
Connection 1Insert (push coupling)
Nominal diameter connection 2DN 65
Outer pipe diameter connection 268.7mm
Wall thickness, connection 22.1mm
Connection 2Slide sleeve
Main colour fittingBrown
Zeta value0.0000
Length80mm
Length of connection 10mm
Working length connection 10mm
Length of connection 20mm
Working length connection 20mm
Wrench width0mm
Wrench width union nut0mm
Medium temperature (continuous)0
Max. operating pressure at 20 °C0bar
Max. operating pressure at max. medium temperature0bar
With thermal insulationNo
Standard Dimension Ratio (SDR)0.0000
With sealing rings/gasketsNo
CappedNo
KIWA certifiedYes
