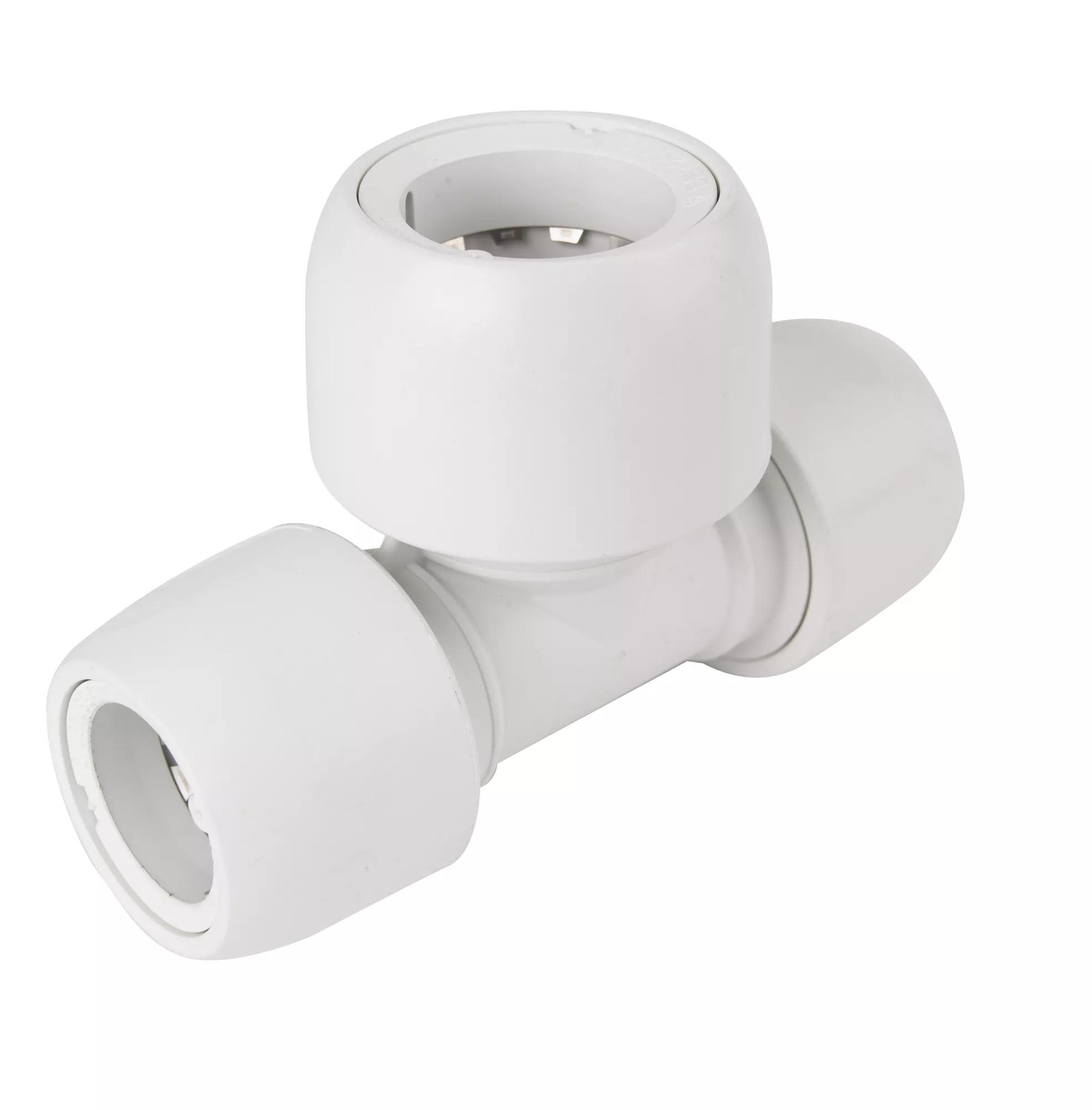

Hep2O Pb Tee Reduced Both End W 22x22x28
| 1 bag | 5 pieces |
|---|---|
| 1 box | 50 pieces |
| 1 pallet | 1600 pieces |
Product Identifiers
Catalog CodeHD18/28W
EAN Number5027888267818
SAP number3030720
| 1 bag | 5 pieces |
|---|---|
| 1 box | 50 pieces |
| 1 pallet | 1600 pieces |
| Label | Value |
|---|---|
Material connection 2 | Polybutylene (PB) |
Outer pipe diameter connection 2 | 40.0000EU570448 |
Connection 1 | Insert (push-fitting) |
Angle | 90.0000EU570383 |
Zeta value branch merging flow according to DVGW W 575 | 0.0000 |
Zeta value counter current separation according to DVGW W 575 | 0.0000 |
Wall thickness, connection 3 | 2.7500EU570448 |
Standard Dimension Ratio (SDR) | 0.0000 |
Working length connection 3 | 27.0000EU570448 |
System-specific | Yes |
Wrench width union nut | 0.0000EU570448 |
Surface treatment connection 3 | Untreated |
Zeta value branch fluent separation according to DVGW W 575 | 0.0000 |
Length of connection 2 | 78.0000EU570448 |
Connection 3 | Insert (push-fitting) |
Model | T-piece |
Surface protection connection 2 | Untreated |
With thermal insulation | No |
Working length connection 1 | 27.0000EU570448 |
Surface protection connection 3 | Untreated |
Material quality connection 1 | Other |
KIWA certified | Yes |
Zeta value counter merging flow according to DVGW W 575 | 0.0000 |
Reducing | Yes |
Multi-part | Yes |
Max. operating pressure at max. medium temperature | 12.0000EU570056 |
Material connection 1 | Polybutylene (PB) |
Nominal diameter connection 3 | Other |
Surface treatment connection 1 | Untreated |
Wrench width | 0.0000EU570448 |
Nominal diameter connection 2 | DN 20 |
Nominal diameter connection 1 | DN 20 |
Zeta value passage merging flow according to DVGW W 575 | 0.0000 |
Outer pipe diameter connection 3 | 50.0000EU570448 |
Working length connection 2 | 21.0000EU570448 |
Wall thickness, connection 2 | 2.1500EU570448 |
ETIM Classification | EC003025 |
Surface treatment connection 2 | Untreated |
Length of connection 1 | 78.0000EU570448 |
Main colour fitting | White |
Length of connection 3 | 85.0000EU570448 |
Wall thickness, connection 1 | 2.1500EU570448 |
Material quality connection 3 | Other |
Max. operating pressure at 20 °C | 12.0000EU570056 |
Material quality connection 2 | Other |
Material connection 3 | Polybutylene (PB) |
Connection 2 | Insert (push-fitting) |
Surface protection connection 1 | Untreated |
Capped | No |
Outer pipe diameter connection 1 | 40.0000EU570448 |
Zeta value gangway current separation according to DVGW W 575 | 0.0000 |
