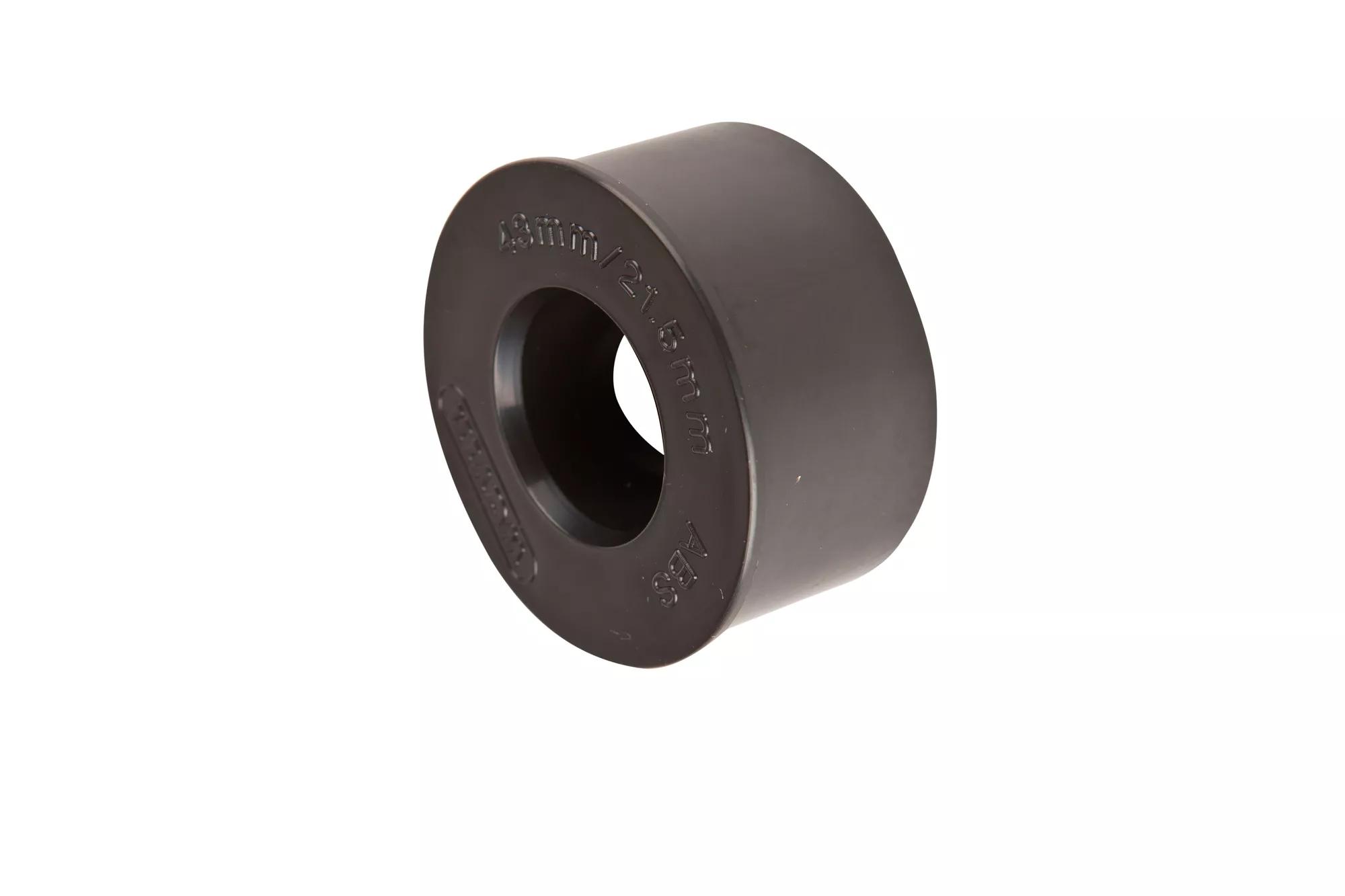

OsmaW ABS Reducer SW BK 40x21.5
| 1 bag | 5 pieces |
|---|
Product Identifiers
Catalog Code1E346B
EAN Number5011479231258
SAP number3038393
| 1 bag | 5 pieces |
|---|
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Shape | Straight |
Nominal diameter connection 2 | DN 40 |
Standard Dimension Ratio (SDR) | 0 |
Length of connection 1 | 24.0000EU570448 |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Acrylonitrile butadiene styrene (ABS) |
Wrench width union nut | 0.0000EU570448 |
Outer pipe diameter connection 1 | 21.6300EU570448 |
Connection 2 | Plastic welded end |
Wall thickness, connection 2 | 1.2700EU570448 |
Bend radius | 0.0000EU570448 |
Nominal diameter connection 1 | 3/4 inch (20) |
Working length connection 1 | 0.0000EU570448 |
Surface treatment connection 2 | Untreated |
Surface protection connection 2 | Untreated |
Max. operating pressure at max. medium temperature | 0bar |
Material quality connection 1 | Other |
Medium temperature (continuous) | 0 |
Connection 1 | Plastic welded end |
System-specific | No |
With thermal insulation | No |
Model | 1-part |
Wrench width | 0.0000EU570448 |
With sealing rings/gaskets | No |
Length of connection 2 | 26.0000EU570448 |
KIWA certified | Yes |
Max. operating pressure at 20 °C | 0bar |
Main colour fitting | Black |
Outer pipe diameter connection 2 | 43.1000EU570448 |
Length | 43.0000EU570448 |
Reducing | Yes |
Bend angle | 0° |
Eccentric | No |
Capped | No |
Zeta value | 0 |
Working length connection 2 | 0.0000EU570448 |
Material quality connection 2 | Other |
Material connection 1 | Acrylonitrile butadiene styrene (ABS) |
Wall thickness, connection 1 | 2.3000EU570448 |
