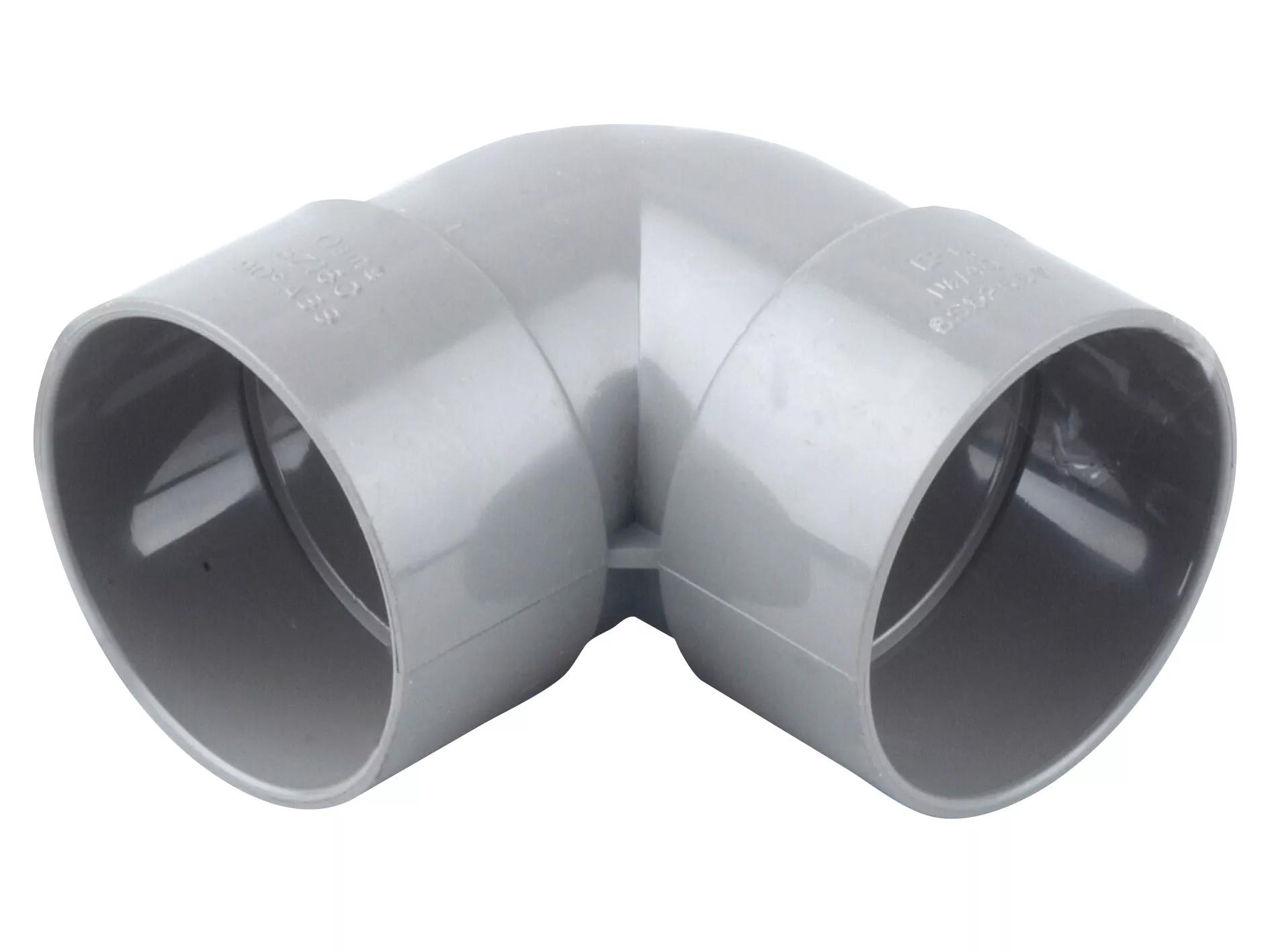

OsmaW ABS Knuckle Bend GY 50
| 1 bag | 5 pieces |
|---|
Product Identifiers
Catalog Code2Z160G
EAN Number5011479200995
SAP number3032414
| 1 bag | 5 pieces |
|---|
| Label | Value |
|---|---|
Model | 1-part |
Standard Dimension Ratio (SDR) | 0.0000 |
Max. operating pressure at 20 °C | 0bar |
Reducing | No |
Connection 1 | Plastic welded end |
Surface protection connection 1 | Untreated |
Connection 2 | Plastic welded end |
Medium temperature (continuous) | 0 |
Wall thickness, connection 2 | 2.4mm |
Nominal diameter connection 1 | DN 50 |
Surface treatment connection 2 | Untreated |
Wall thickness, connection 1 | 2.4mm |
Length | 94mm |
Material quality connection 2 | Other |
Material quality connection 1 | Other |
Wrench width | 0mm |
Material connection 1 | Acrylonitrile butadiene styrene (ABS) |
Outer pipe diameter connection 1 | 54.3mm |
Material connection 2 | Acrylonitrile butadiene styrene (ABS) |
KIWA certified | Yes |
System-specific | Yes |
Surface protection connection 2 | Untreated |
Bend angle | 90° |
Length of connection 2 | 32mm |
Main colour fitting | Grey |
Working length connection 1 | 32mm |
Shape | Elbow (fitting) |
Wrench width union nut | 0mm |
Max. operating pressure at max. medium temperature | 0bar |
Capped | No |
Outer pipe diameter connection 2 | 54.3mm |
With thermal insulation | No |
Surface treatment connection 1 | Untreated |
Bend radius | 0mm |
Nominal diameter connection 2 | DN 50 |
With sealing rings/gaskets | No |
Eccentric | No |
Length of connection 1 | 32mm |
ETIM Classification | EC003024 |
Zeta value | 0.0000 |
Working length connection 2 | 32mm |
