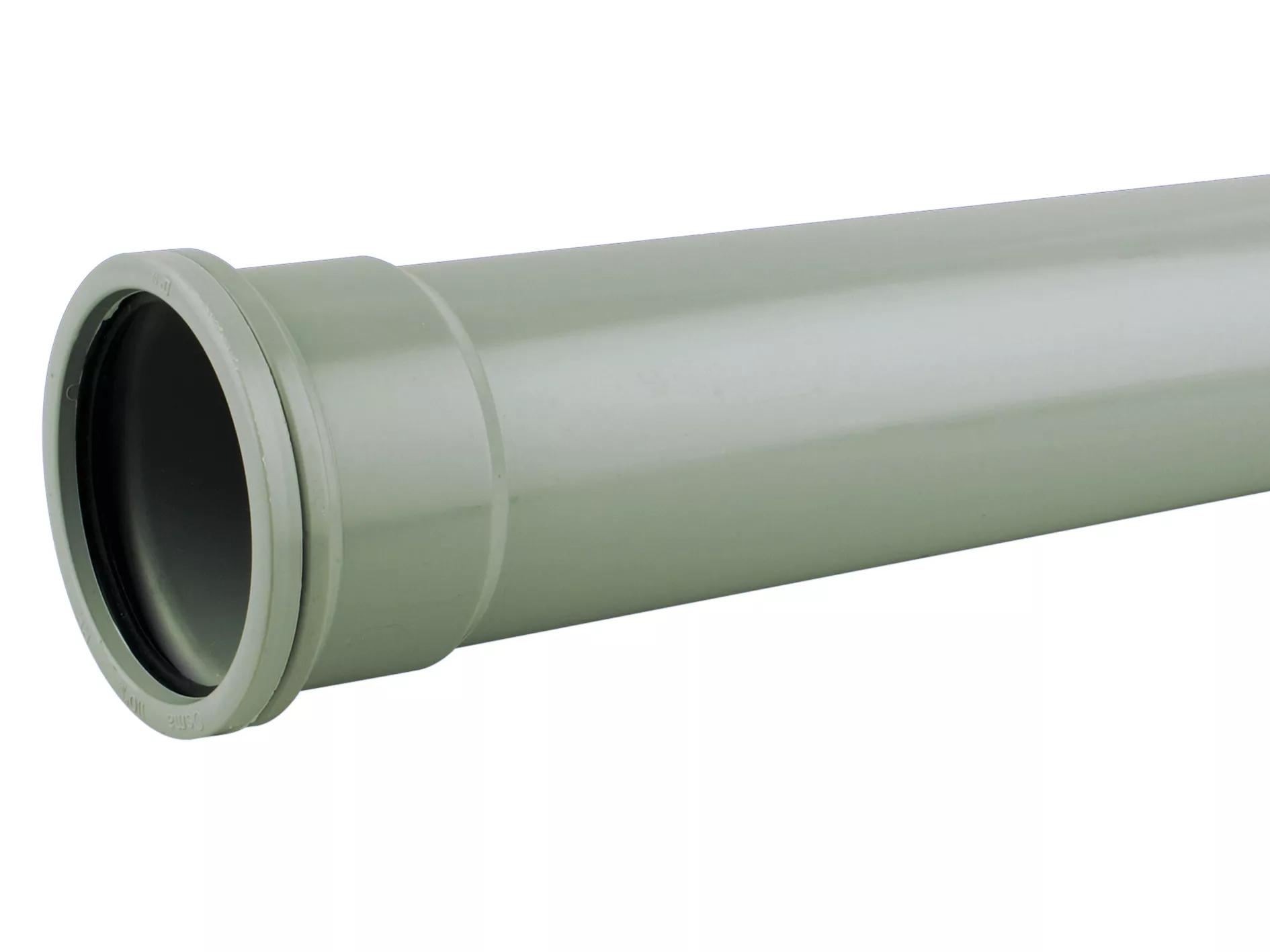

OsmaS PVC-U Pipe E 110 L=3 S/S
PRODUCT IDENTIFIERS
- Catalog Code
- 4S043E
- EAN Number
- 5011479285954
- SAP number
- 3092091
PACKAGING DETAILS
- 1 pack50 pieces
| Label | Value |
|---|---|
Surface protection | Other |
Thickness of thermal insulation | 0mm |
Insert length connection 1 | 0mm |
Material | Polyvinyl chloride (PVC) |
Type approval according to BBR/EKS | No |
Max. medium temperature (momentarily) | 40°C |
Medium temperature (continuous) | 1 - 40 |
Connection 1 | Tube end |
With mantle pipe | No |
Insert length connection 2 | 0mm |
Ring stiffness class | Other |
Certified according to SVGW for gas | No |
Max. operating pressure at 20 °C | 0bar |
Chamfered | No |
Max. operating pressure at max. medium temperature | 0bar |
Lambda value | 0W/(m⋅K) |
Outer pipe diameter | 110mm |
Outer diameter mantle pipe | 0mm |
With heating cable | No |
Pipe colour | Other |
Wall thickness | 3.5mm |
Nominal diameter | DN 100 |
Outer diameter thermal insulation | 0mm |
Colour of thermal insulation | Other |
Colour mantle pipe | Other |
Min. bending radius | 0mm |
Flexible | No |
Wall roughness | 0.06mm |
Material quality | PVC-U |
With thermal insulation | No |
Connection 2 | Tube end |
Expansion coefficient | 0.08mm/(m⋅K) |
Capped | No |
Certified according to SVGW for water | No |
ETIM Classification | EC010882 |
Min. bending radius without tools | 0mm |
Article compression class | Pressureless |
Diffusion-proof | No |
Colour of coding stripe on mantle pipe | Other |
Water content | 0l/m |
