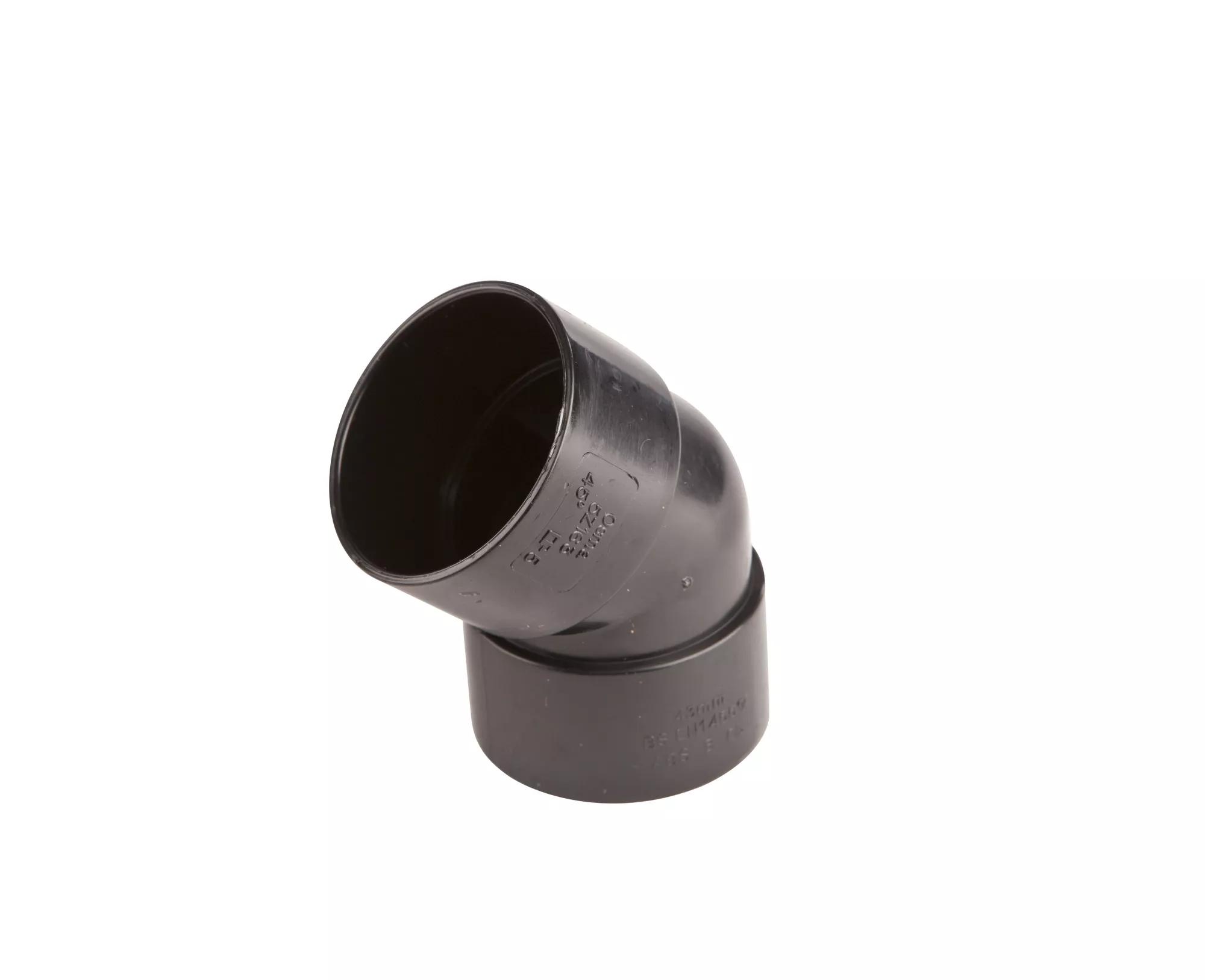

OsmaW ABS Bend 45° BK 40
| 1 bag | 20 pieces |
|---|
Product Identifiers
Catalog Code5Z163B
EAN Number5011479205020
SAP number3035178
| 1 bag | 20 pieces |
|---|
| Label | Value |
|---|---|
Length | 82mm |
Wall thickness, connection 1 | 2.3mm |
With sealing rings/gaskets | No |
Connection 1 | Plastic welded end |
Main colour fitting | Black |
Medium temperature (continuous) | 0 |
Bend angle | 45° |
Nominal diameter connection 1 | DN 40 |
Max. operating pressure at max. medium temperature | 0bar |
Surface treatment connection 1 | Untreated |
Surface treatment connection 2 | Untreated |
Zeta value | 0 |
Length of connection 1 | 34mm |
Surface protection connection 1 | Untreated |
With thermal insulation | No |
Shape | Bend |
Outer pipe diameter connection 2 | 43.1mm |
Nominal diameter connection 2 | DN 40 |
Material quality connection 1 | Other |
ETIM Classification | EC003024 |
Material connection 2 | Acrylonitrile butadiene styrene (ABS) |
Length of connection 2 | 34mm |
Material quality connection 2 | Other |
Working length connection 2 | 0mm |
Model | 1-part |
Capped | No |
System-specific | No |
Standard Dimension Ratio (SDR) | 0 |
Wrench width | 0mm |
Outer pipe diameter connection 1 | 43.1mm |
Connection 2 | Plastic welded end |
KIWA certified | Yes |
Eccentric | No |
Reducing | No |
Material connection 1 | Acrylonitrile butadiene styrene (ABS) |
Working length connection 1 | 0mm |
Wrench width union nut | 0mm |
Bend radius | 0mm |
Surface protection connection 2 | Untreated |
Wall thickness, connection 2 | 2.3mm |
Max. operating pressure at 20 °C | 0bar |
