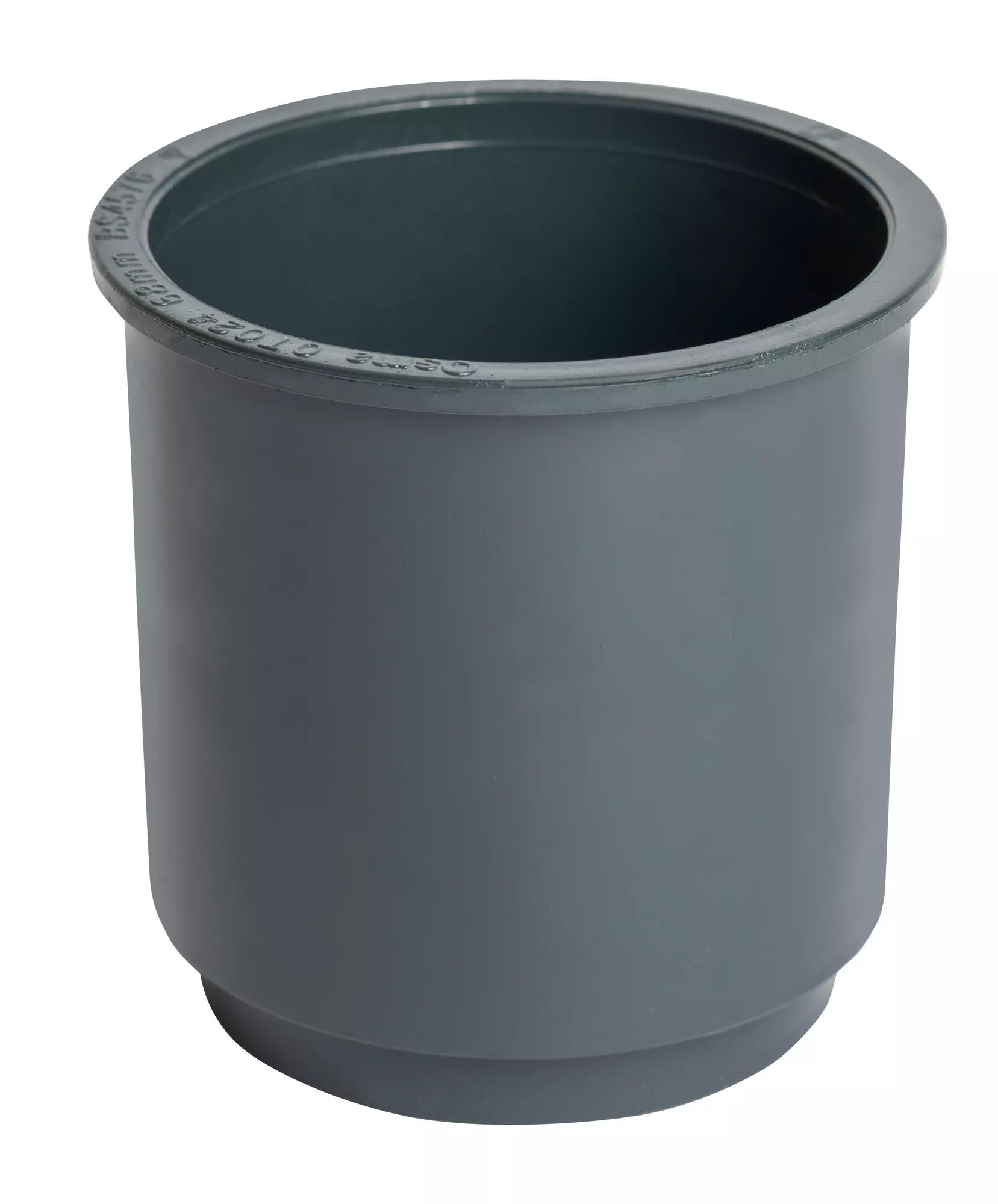

Osma Roundline Pipe Connector 68mm Anthracite Grey

1 bag	5 pieces
1 pallet	1200 pieces

Product Identifiers

Catalog CodeT024AG

EAN Number5011479256572

SAP number3082215

Commercial

Label	Value
Product Features	Wavin Osma RoundLine is a 112mm (4½") gutter system with circular 68mm downpipe. For domestic standard use. Use for a maximum roof area of 163m² (with one downpipe) Joins two ends of 68mm downpipe Use with 0T038N socket bracket Concealed sockets to hide downpipe cut ends Conforms to BS EN 607:2004 For use with Anthracite Grey DeepLine Gutter

Label	Value
ETIM Classification	EC003024
Material connection 1	Polyvinyl chloride (PVC)
Material quality connection 1	PVC-U
Surface protection connection 1	Untreated
Surface treatment connection 1	Untreated
Material connection 2	Polyvinyl chloride (PVC)
Material quality connection 2	PVC-U
Surface protection connection 2	Untreated
Surface treatment connection 2	Untreated
Shape	Straight
Model	1-part
Bend angle	0°
Bend radius	0mm
Reducing	No
Eccentric	No
System-specific	Yes
Nominal diameter connection 1	DN 65
Outer pipe diameter connection 1	68.7mm
Wall thickness, connection 1	2.1mm
Connection 1	Insert (push coupling)
Nominal diameter connection 2	DN 65
Outer pipe diameter connection 2	68.7mm
Wall thickness, connection 2	2.1mm
Connection 2	Slide sleeve
Main colour fitting	Grey
Zeta value	0.0000
Length	80mm
Length of connection 1	0mm
Working length connection 1	0mm
Length of connection 2	0mm
Working length connection 2	0mm
Wrench width	0mm
Wrench width union nut	0mm
Medium temperature (continuous)	0
Max. operating pressure at 20 °C	0bar
Max. operating pressure at max. medium temperature	0bar
With thermal insulation	No
Standard Dimension Ratio (SDR)	0.0000
With sealing rings/gaskets	No
Capped	No
KIWA certified	Yes
