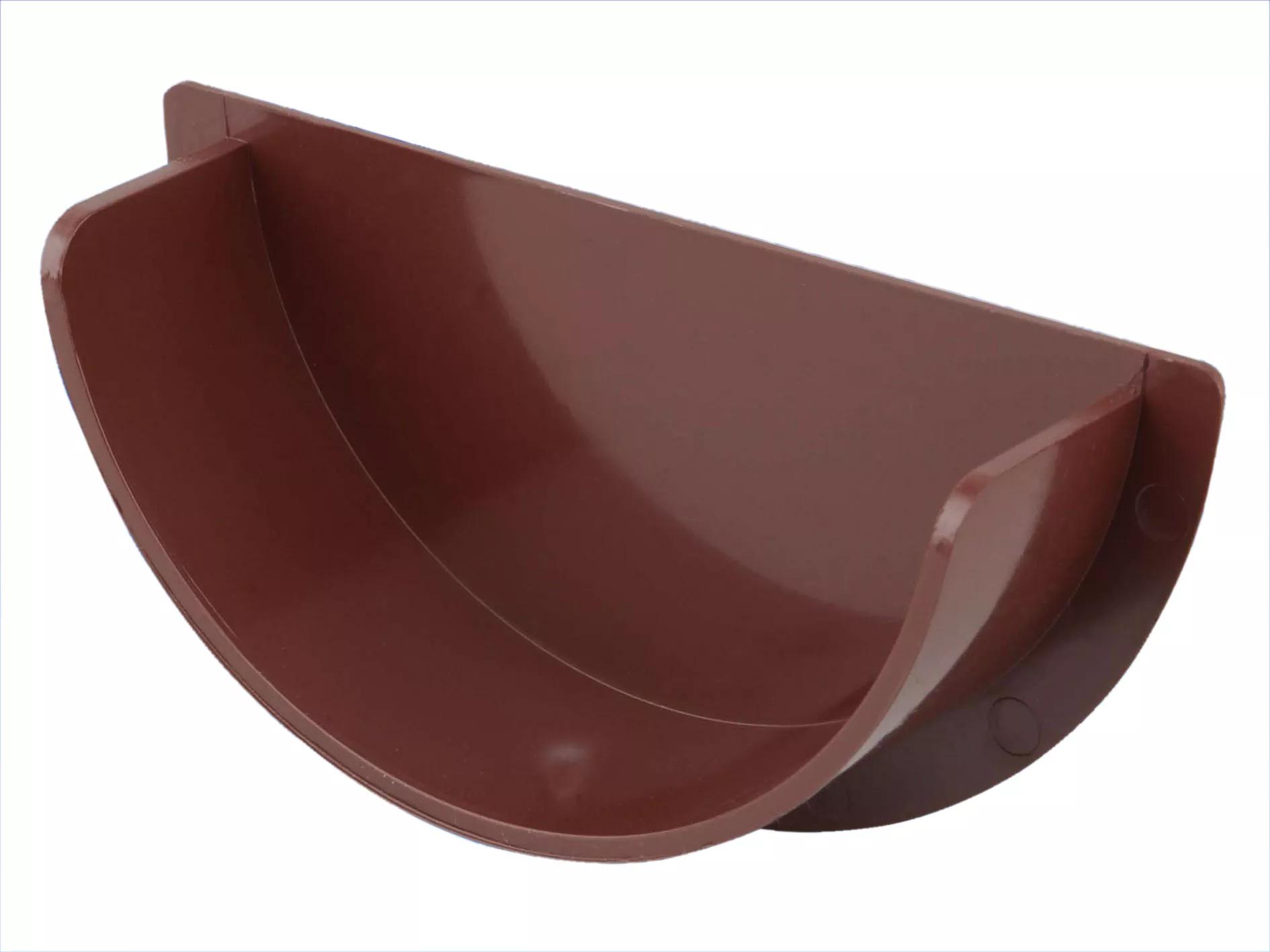

OsRRL PVCU Stopend INT BN 112
Product Identifiers
Catalog CodeT010N
EAN Number5011479101209
SAP number3035135
| Label | Value |
|---|---|
| ETIM Classification | EC003023 |
| Material connection 1 | Polyvinyl chloride (PVC) |
| Material quality connection 1 | PVC-U |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| System-specific | Yes |
| Nominal diameter connection 1 | Other |
| Outer pipe diameter connection 1 | 114mm |
| Wall thickness, connection 1 | 2.1mm |
| Connection 1 | Slide end |
| Max. operating pressure at 20 °C | 0bar |
| Main colour fitting | Brown |
| Length of connection 1 | 33mm |
| Working length connection 1 | 30.9mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Max. operating pressure at max. medium temperature | 0bar |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | No |
| With drain valve | No |
| Capped | Yes |
