| Label | Value |
|---|---|
Wrench width union nut | 0mm |
Zeta value gangway current separation according to DVGW W 575 | 0 |
Zeta value branch fluent separation according to DVGW W 575 | 0 |
VdS quality mark | No |
ULC quality mark | No |
Material quality connection 2 | Other |
Wall thickness connecting pipe, connection 3 | 0mm |
Connection 2 | Plastic welded end |
FM quality mark | No |
Surface treatment connection 3 | Untreated |
Material connection 3 | Acrylonitrile butadiene styrene (ABS) |
Connection 3 | Plastic welded end |
High tensile strength | No |
LPCB quality mark | No |
ETIM Classification | EC003025 |
Surface treatment connection 1 | Untreated |
Outer pipe diameter connection 3 | 0mm |
Main colour fitting | Grey |
Max. operating pressure at 20 °C | 0bar |
UL quality mark | No |
Nominal diameter connection 1 | DN 40 |
Surface protection connection 2 | Untreated |
Gastec QA mark | No |
With buffer stud | No |
Zeta value counter current separation according to DVGW W 575 | 0 |
Outer pipe diameter connection 1 | 0mm |
Wall thickness, connection 3 | 0mm |

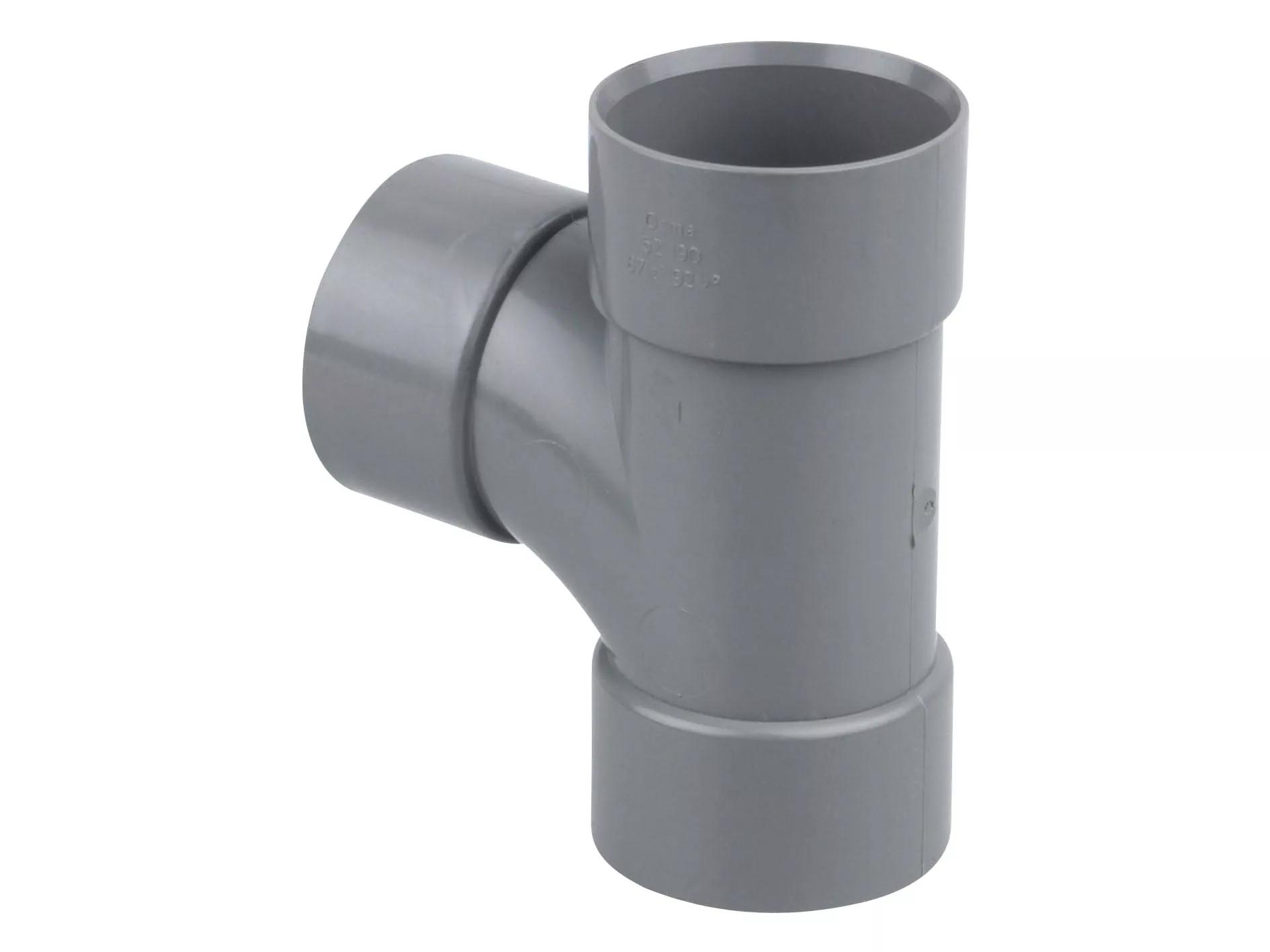

Model | T-piece |
Max. operating pressure at max. medium temperature | 0bar |
Zeta value counter merging flow according to DVGW W 575 | 0 |
Standard Dimension Ratio (SDR) | 0 |
Material connection 2 | Acrylonitrile butadiene styrene (ABS) |
Surface treatment connection 2 | Untreated |
Connection 1 | Plastic welded end |
Wall thickness connecting pipe, connection 2 | 0mm |
Angle | 87.5° |
Zeta value passage merging flow according to DVGW W 575 | 0 |
Material connection 1 | Acrylonitrile butadiene styrene (ABS) |
KOMO certified | No |
With drain valve | No |
Working length connection 2 | 0mm |
Length of connection 3 | 0mm |
Material quality connection 3 | Other |
Wall thickness connecting pipe, connection 1 | 0mm |
DIN-CERTCO certificate | No |
DVGW quality mark for water | No |
With de-aerator | No |
Wrench width | 0mm |
Working length connection 1 | 0mm |
Nominal diameter connection 2 | DN 40 |
Nominal diameter connection 3 | DN 40 |
Material quality connection 1 | Other |
With connection indicator | No |
Length of connection 1 | 0mm |
KIWA certified | No |
Working length connection 3 | 0mm |
DVGW quality mark for gas | No |
Length of connection 2 | 0mm |
Surface protection connection 1 | Untreated |
Surface protection connection 3 | Untreated |
Zeta value branch merging flow according to DVGW W 575 | 0 |
Wall thickness, connection 2 | 0mm |
Swept entry type (with inner radius) | No |
Type approval according to BBR/EKS | No |
Wall thickness, connection 1 | 0mm |
With approval for TÜV | No |
Outer pipe diameter connection 2 | 0mm |
