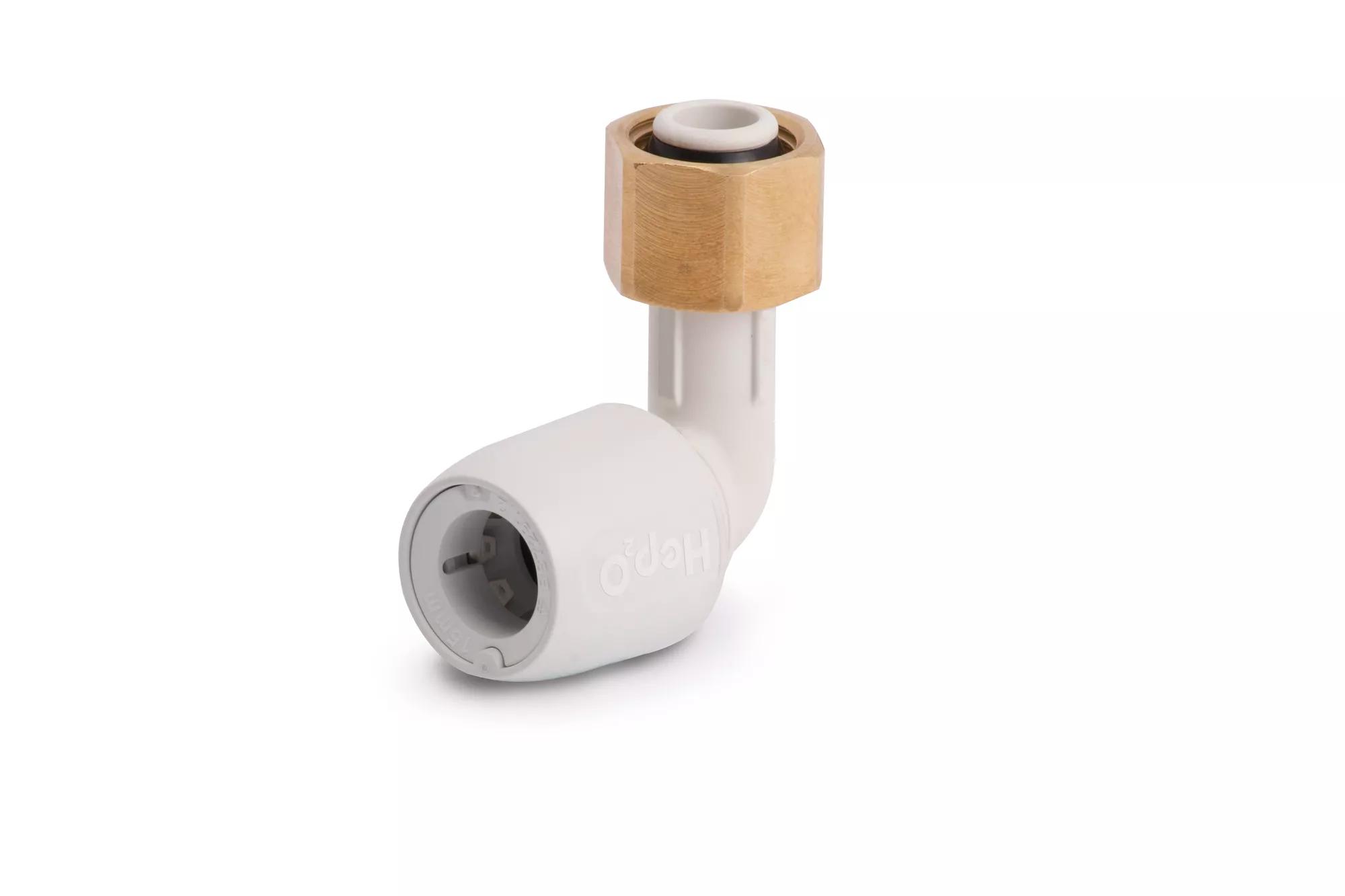

Hep2O Bent Tap Connector 90° WT 15X1/2"
| 1 bag | 5 pieces |
|---|---|
| 1 box | 200 pieces |
| 1 pallet | 2500 pieces |
Product Identifiers
Catalog CodeHD27/15W
EAN Number5027888267559
SAP number3029610
| 1 bag | 5 pieces |
|---|---|
| 1 box | 200 pieces |
| 1 pallet | 2500 pieces |
| Label | Value |
|---|---|
Wall thickness, connection 2 | 0mm |
Wall thickness connecting pipe, connection 2 | 0mm |
With connection indicator | No |
Max. operating pressure at 20 °C | 12bar |
KOMO certified | No |
Max. operating pressure at max. medium temperature | 6bar |
Outer pipe diameter connection 2 | 0mm |
Certified according to NF 545 | No |
Connection 2 | Internal thread metric |
Shape | Bend |
Outer pipe diameter connection 1 | 0mm |
DIN-CERTCO certificate | No |
Material sealing | NBR (nitrile rubber) |
Length of connection 1 | 0mm |
Type approval according to BBR/EKS | No |
Surface protection connection 2 | Untreated |
Length of connection 2 | 0mm |
Nominal diameter connection 1 | Other |
Connection 1 | Insert (push-fitting) |
Material quality connection 1 | Other |
Bend radius | 0mm |
LPCB quality mark | No |
Working length connection 2 | 0mm |
Model | 1-part |
Surface treatment connection 2 | Untreated |
Length | 0mm |
Material connection 2 | Brass |
Zeta value | 0 |
DVGW quality mark for water | No |
Bend angle | 90° |
Surface protection connection 1 | Untreated |
Material connection 1 | Polybutylene (PB) |
Wall thickness connecting pipe, connection 1 | 0mm |
Wrench width | 0mm |
Material quality connection 2 | Other |
Main colour fitting | White |
Surface treatment connection 1 | Untreated |
Medium temperature (continuous) | 0 - 65 |
Wrench width union nut | 0mm |
DVGW quality mark for gas | No |
Nominal diameter connection 2 | 1/2 inch (15) |
Working length connection 1 | 0mm |
Wall thickness, connection 1 | 0mm |
ETIM Classification | EC003024 |
Standard Dimension Ratio (SDR) | 0 |
Flange compression class (PN) | Other |
With approval for TÜV | No |
