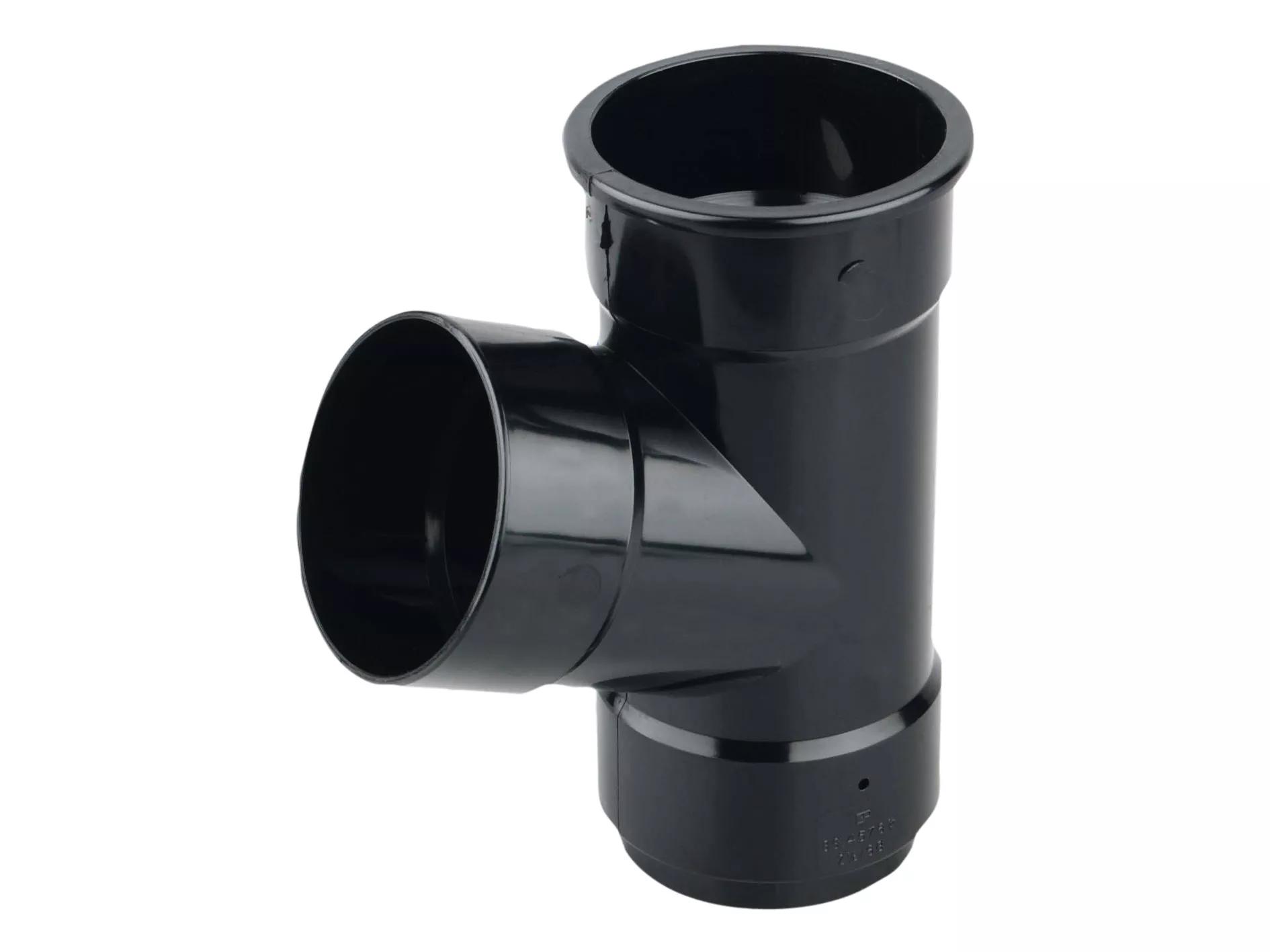

OsRRL PVCU Branch 67.5° BK 68
Product Identifiers
Catalog CodeT035B
EAN Number5011479100196
SAP number3036014
Commercial
| Label | Value |
|---|---|
| Wavin Shape | Branch |
| Label | Value |
|---|---|
| ETIM Classification | EC003025 |
| Material connection 1 | Polyvinyl chloride (PVC) |
| Material quality connection 1 | PVC-U |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polyvinyl chloride (PVC) |
| Material quality connection 2 | PVC-U |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Material connection 3 | Polyvinyl chloride (PVC) |
| Material quality connection 3 | PVC-U |
| Surface protection connection 3 | Untreated |
| Surface treatment connection 3 | Untreated |
| Model | Y-piece |
| Angle | 67.5° |
| Reducing | No |
| Multi-part | No |
| System-specific | No |
| Nominal diameter connection 1 | DN 65 |
| Outer pipe diameter connection 1 | 68.7mm |
| Wall thickness, connection 1 | 2.1mm |
| Connection 1 | Slide sleeve |
| Nominal diameter connection 2 | DN 65 |
| Outer pipe diameter connection 2 | 68.7mm |
| Wall thickness, connection 2 | 2.1mm |
| Connection 2 | Slide sleeve |
| Nominal diameter connection 3 | DN 65 |
| Outer pipe diameter connection 3 | 68.7mm |
| Wall thickness, connection 3 | 2.1mm |
| Connection 3 | Slide sleeve |
| Main colour fitting | Black |
| Length of connection 1 | 0mm |
| Working length connection 1 | 0mm |
| Length of connection 2 | 0mm |
| Working length connection 2 | 0mm |
| Length of connection 3 | 0mm |
| Working length connection 3 | 0mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Max. operating pressure at max. medium temperature | 0bar |
| Max. operating pressure at 20 °C | 0bar |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | No |
| With thermal insulation | No |
| Capped | No |
| Zeta value branch fluent separation according to DVGW W 575 | 0.0000 |
| Zeta value gangway current separation according to DVGW W 575 | 0.0000 |
| Zeta value counter current separation according to DVGW W 575 | 0.0000 |
| Zeta value branch merging flow according to DVGW W 575 | 0.0000 |
| Zeta value passage merging flow according to DVGW W 575 | 0.0000 |
| Zeta value counter merging flow according to DVGW W 575 | 0.0000 |
