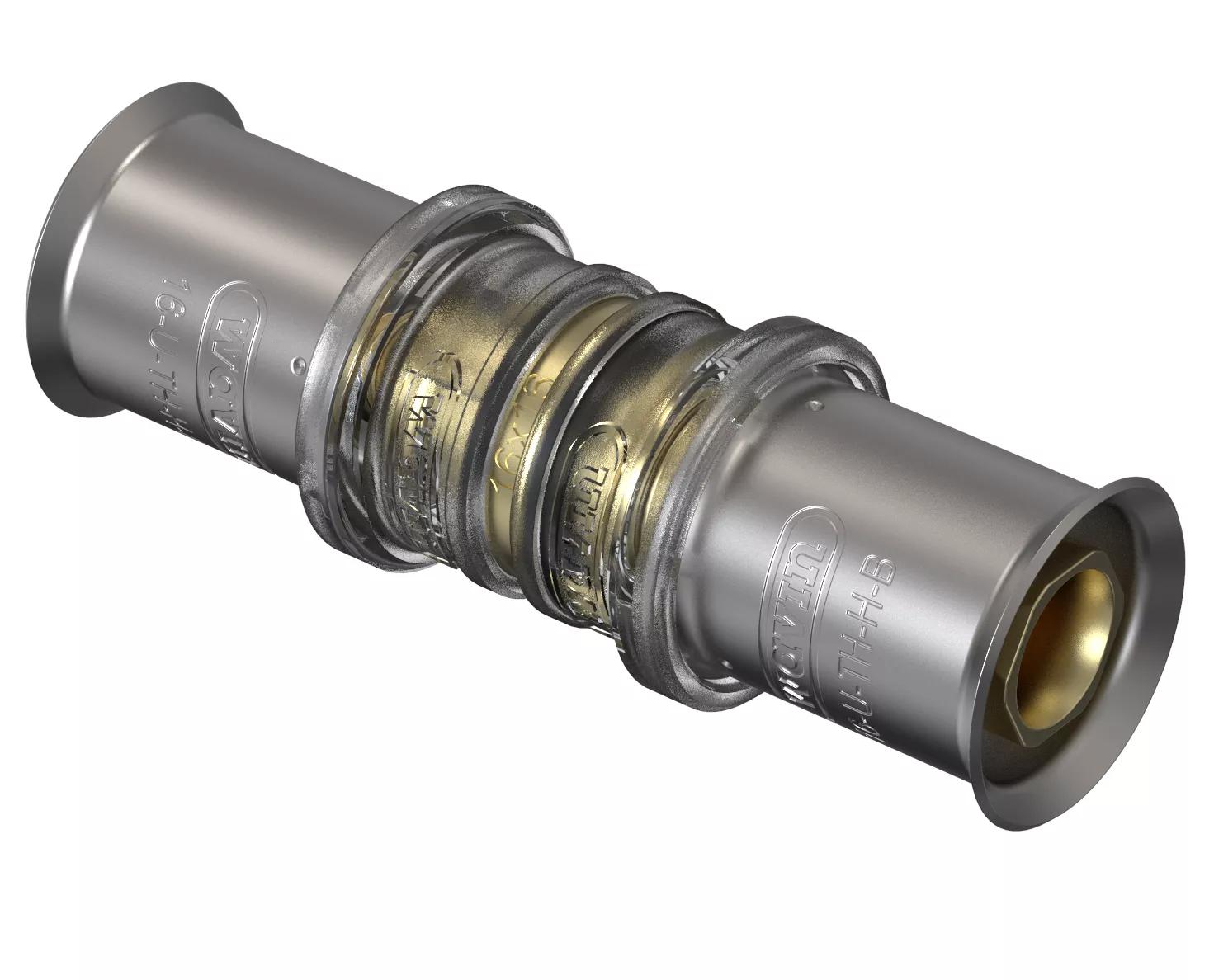

Tigris M5 Coupler 40
Product Identifiers
Catalog Code4064167
EAN Number4026294896996
SAP number4064167
Wishing you a wonderful Christmas! Our last delivery day is Monday 23 Dec. We close on Tue 24 Dec and open again on Thu Jan 2.
| Label | Value |
|---|---|
| Wavin Shape | Coupler |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Brass |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Brass |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Model | 1-part |
| Bend angle | 0° |
| Bend radius | 0mm |
| Reducing | No |
| Eccentric | No |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 32 |
| Outer pipe diameter connection 1 | 40mm |
| Wall thickness, connection 1 | 4mm |
| Connection 1 | Press sleeve |
| Contour code connection 1 | Several |
| Nominal diameter connection 2 | DN 32 |
| Outer pipe diameter connection 2 | 40mm |
| Wall thickness, connection 2 | 4mm |
| Connection 2 | Press sleeve |
| Contour code connection 2 | Several |
| Main colour fitting | Other |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | Yes |
| Zeta value | 0.0000 |
| High tensile strength | Yes |
| Length | 100mm |
| Length of connection 1 | 41.5mm |
| Working length connection 1 | 41.5mm |
| Length of connection 2 | 41.5mm |
| Working length connection 2 | 41.5mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 0 - 70 |
| Max. operating pressure at 20 °C | 10bar |
| With thermal insulation | No |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | Yes |
| Capped | No |
| With drain valve | No |
| With de-aerator | No |
| KIWA certified | Yes |
| Gastec QA mark | No |
