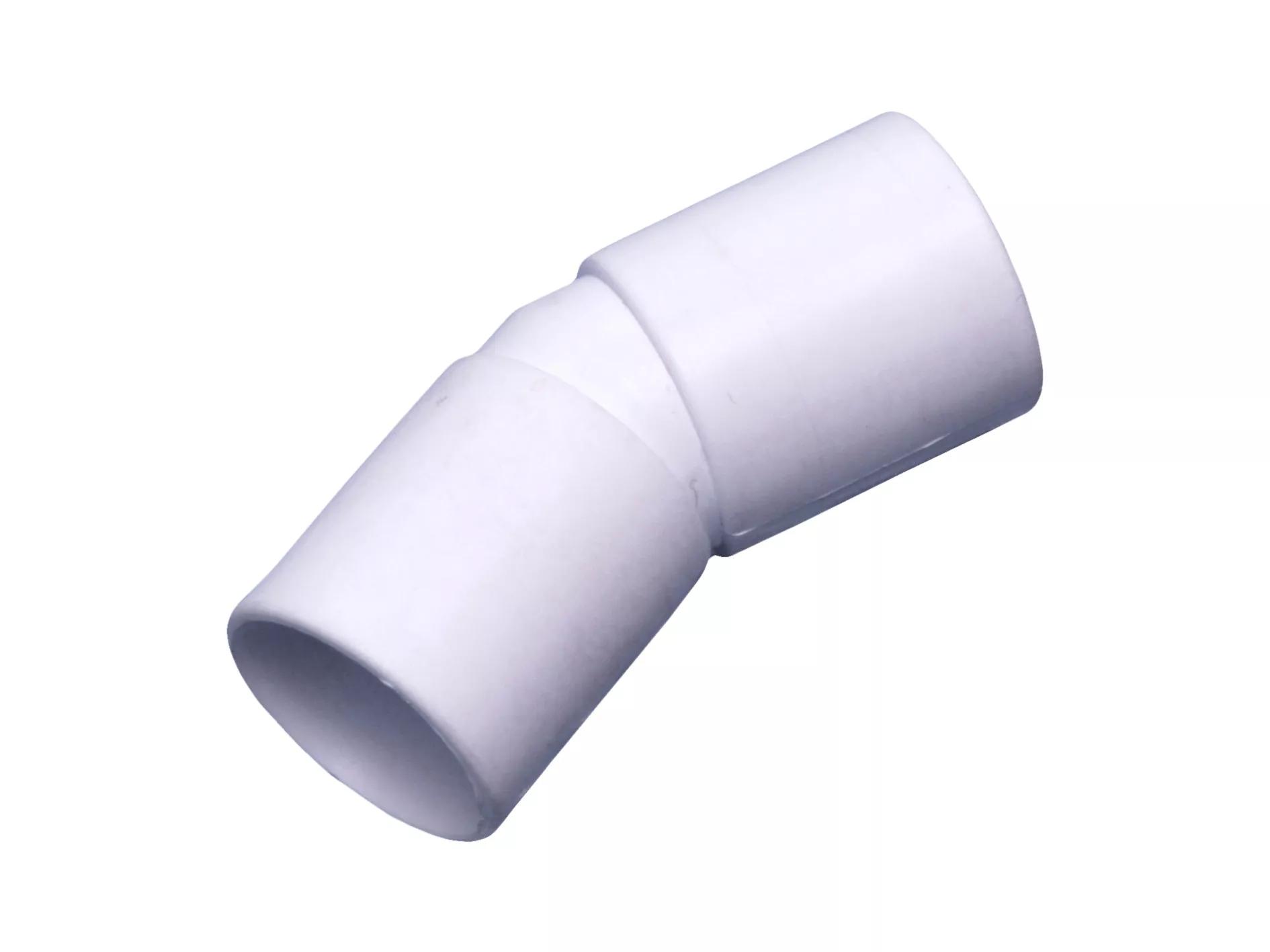

OsmaO ABS Bend WT 21.5
| 1 bag | 10 pieces |
|---|---|
| 1 pallet | 8000 pieces |
Product Identifiers
Catalog Code1E166W
EAN Number5011479207611
SAP number3035008
| 1 bag | 10 pieces |
|---|---|
| 1 pallet | 8000 pieces |
| Label | Value |
|---|---|
Material quality connection 1 | Other |
Material connection 1 | Acrylonitrile butadiene styrene (ABS) |
Max. operating pressure at 20 °C | 0bar |
No |
With sealing rings/gaskets | No |
Zeta value | 0.0000 |
Bend radius | 0mm |
Material connection 2 | Acrylonitrile butadiene styrene (ABS) |
Length | 65mm |
Max. operating pressure at max. medium temperature | 0bar |
Length of connection 2 | 26mm |
Standard Dimension Ratio (SDR) | 0.0000 |
Surface protection connection 2 | Untreated |
Bend angle | 45° |
Length of connection 1 | 26mm |
Main colour fitting | White |
Model | 1-part |
Wrench width union nut | 0mm |
Material quality connection 2 | Other |
Working length connection 2 | 0mm |
System-specific | No |
Nominal diameter connection 2 | 3/4 inch (20) |
ETIM Classification | EC003024 |
Wall thickness, connection 2 | 1.27mm |
Medium temperature (continuous) | 0 |
Working length connection 1 | 0mm |
KIWA certified | Yes |
Surface protection connection 1 | Untreated |
Connection 2 | Plastic welded end |
Shape | Bend |
Wall thickness, connection 1 | 1.27mm |
Connection 1 | Plastic welded end |
Capped | No |
Surface treatment connection 2 | Untreated |
Nominal diameter connection 1 | 3/4 inch (20) |
Outer pipe diameter connection 1 | 21.63mm |
Reducing | No |
Wrench width | 0mm |
Surface treatment connection 1 | Untreated |
With thermal insulation | No |
Outer pipe diameter connection 2 | 21.63mm |
