| Label | Value |
|---|---|
Material connection 1 | Polybutylene (PB) |
Surface treatment connection 2 | Untreated |
Wall thickness, connection 1 | 0mm |
UL quality mark | No |
Bend radius | 0mm |
Connection 1 | Insert (push-fitting) |
KOMO certified | No |
With drain valve | No |
Model | 2-part |
Length of connection 1 | 0mm |
DIN-CERTCO certificate | No |

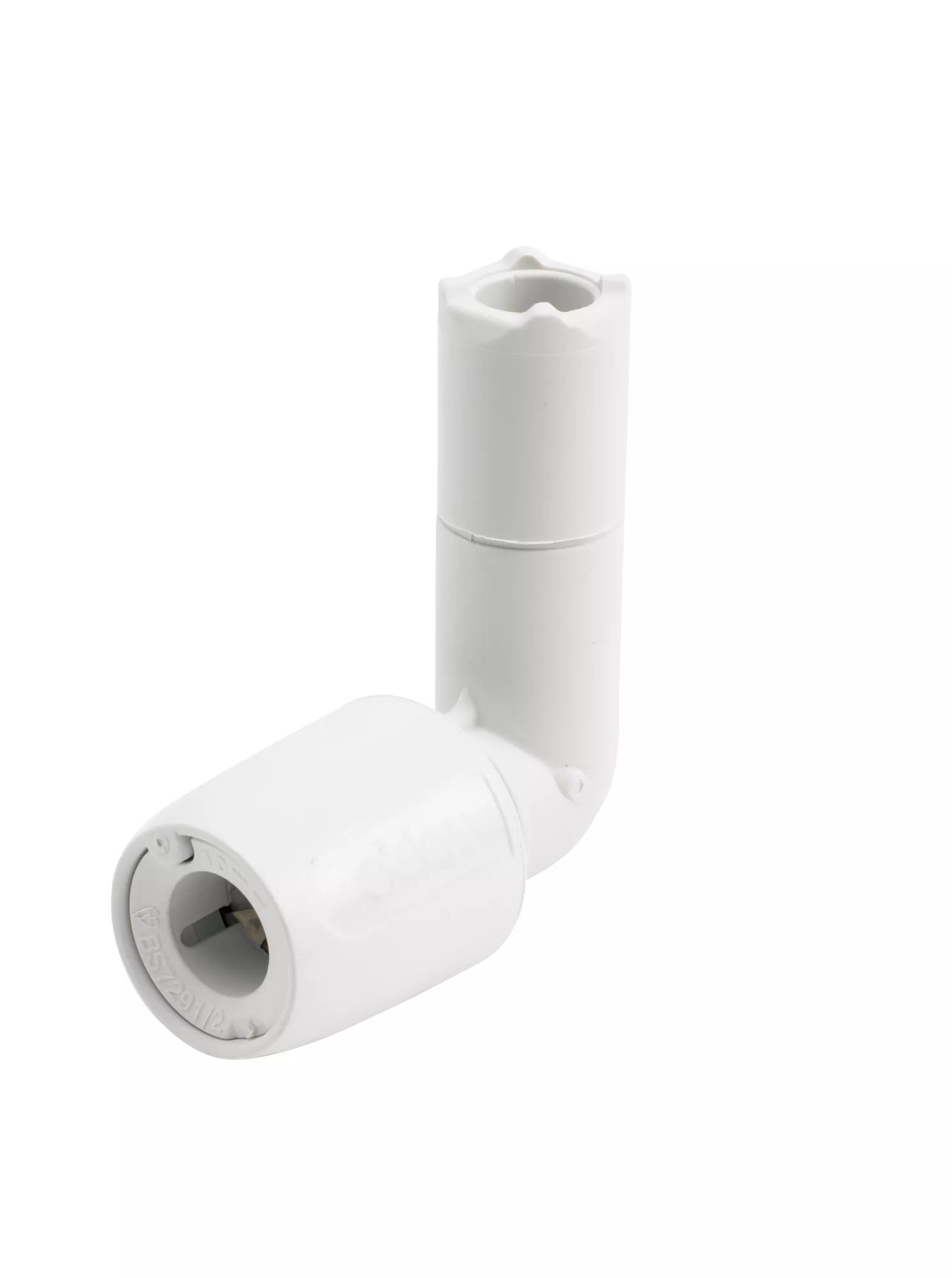

Shape | Elbow (fitting) |
Bend angle | 90° |
DVGW quality mark for gas | No |
ETIM Classification | EC003024 |
Wall thickness connecting pipe, connection 2 | 0mm |
VdS quality mark | No |
Wrench width | 0mm |
LPCB quality mark | No |
Wrench width union nut | 0mm |
With approval for TÜV | No |
With connection indicator | No |
Surface protection connection 2 | Untreated |
Material connection 2 | Polybutylene (PB) |
With de-aerator | No |
High tensile strength | No |
Type approval according to BBR/EKS | No |
Max. operating pressure at max. medium temperature | 6bar |
Nominal diameter connection 1 | DN 15 |
Length | 0mm |
Max. operating pressure at 20 °C | 12bar |
Material quality connection 1 | Other |
With buffer stud | No |
Medium temperature (continuous) | 5 - 95 |
Material quality connection 2 | Other |
Certified according to NF 545 | No |
FM quality mark | No |
ULC quality mark | No |
Main colour fitting | White |
DVGW quality mark for water | No |
Wall thickness connecting pipe, connection 1 | 0mm |
Standard Dimension Ratio (SDR) | 0 |
Outer pipe diameter connection 2 | 0mm |
Working length connection 2 | 0mm |
Zeta value | 0 |
Wall thickness, connection 2 | 0mm |
Working length connection 1 | 0mm |
Connection 2 | Spigot/tube end |
Surface treatment connection 1 | Untreated |
Nominal diameter connection 2 | DN 10 |
Surface protection connection 1 | Untreated |
Length of connection 2 | 0mm |
Outer pipe diameter connection 1 | 0mm |
