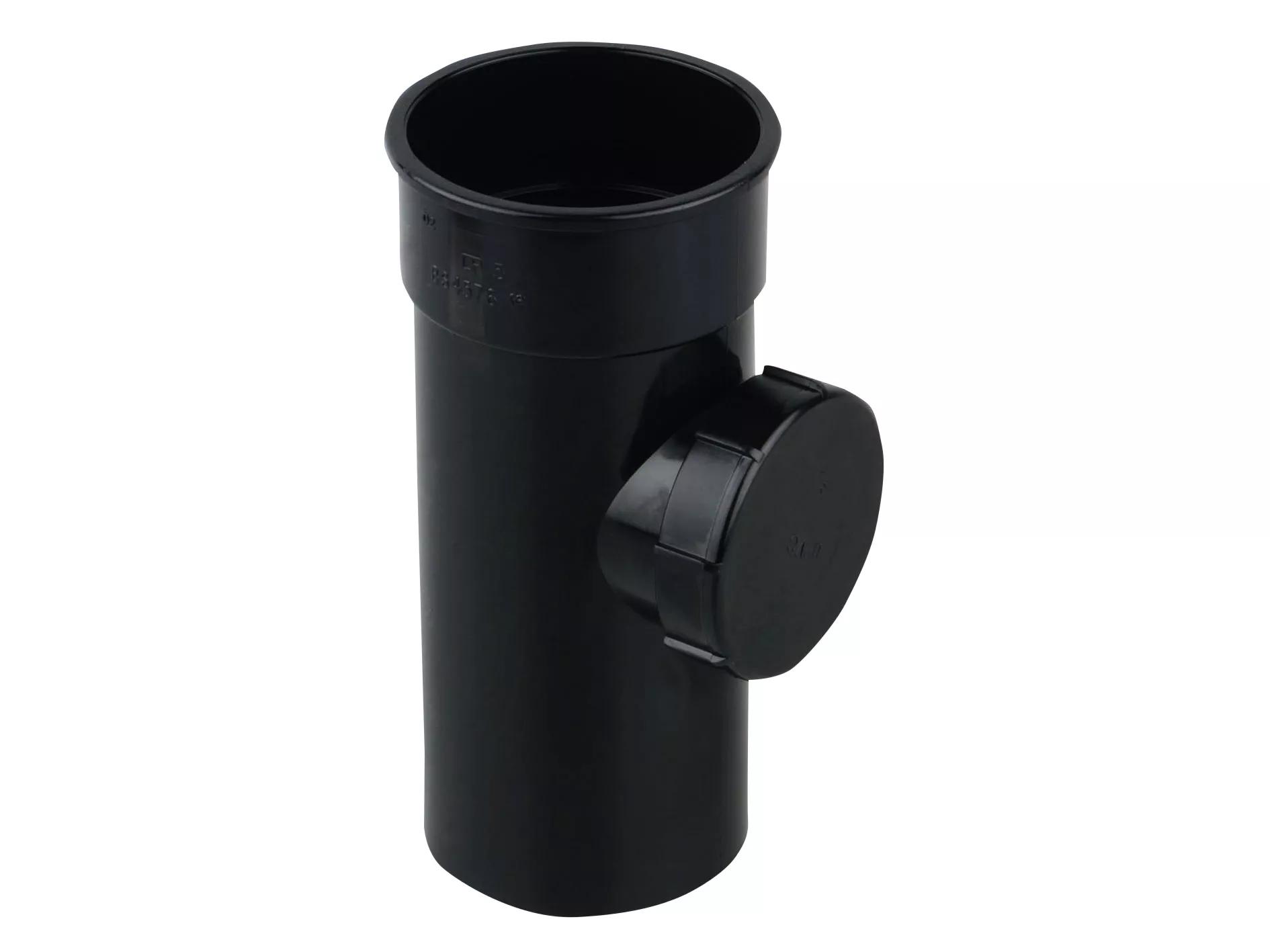

Osma Roundline Access Pipe With Screwed Door 68mm Black

PRODUCT IDENTIFIERS

PACKAGING DETAILS

ETIM EC010323 (Inspection access piece)

Label	Value
End piece	Yes
Length of cleaning eye	16mm
Material	Polyvinyl chloride (PVC)
Cover model	Round
Ring stiffness class	Other
Material quality	PVC-U
Outer pipe diameter	68.7mm
Nominal diameter	Other
Diameter of cleaning eye	50mm
Length	165mm
Mounting of cover	Screw cover
ETIM Classification	EC010323
Working length	30mm
Connection 1	Other
Connection 2	Other
Width of cleaning eye	50mm
Standard Dimension Ratio (SDR)	0
Shape	Other

Commercial

Label	Value
Product Features	Wavin Osma RoundLine is a 112mm (4½") gutter system with circular 68mm downpipe. For domestic standard use. Use for a maximum roof area of 163m² (with one downpipe) With screwed access door Allows access for rodding from the base of a downpipe For easier maintenance Use with socket bracket
