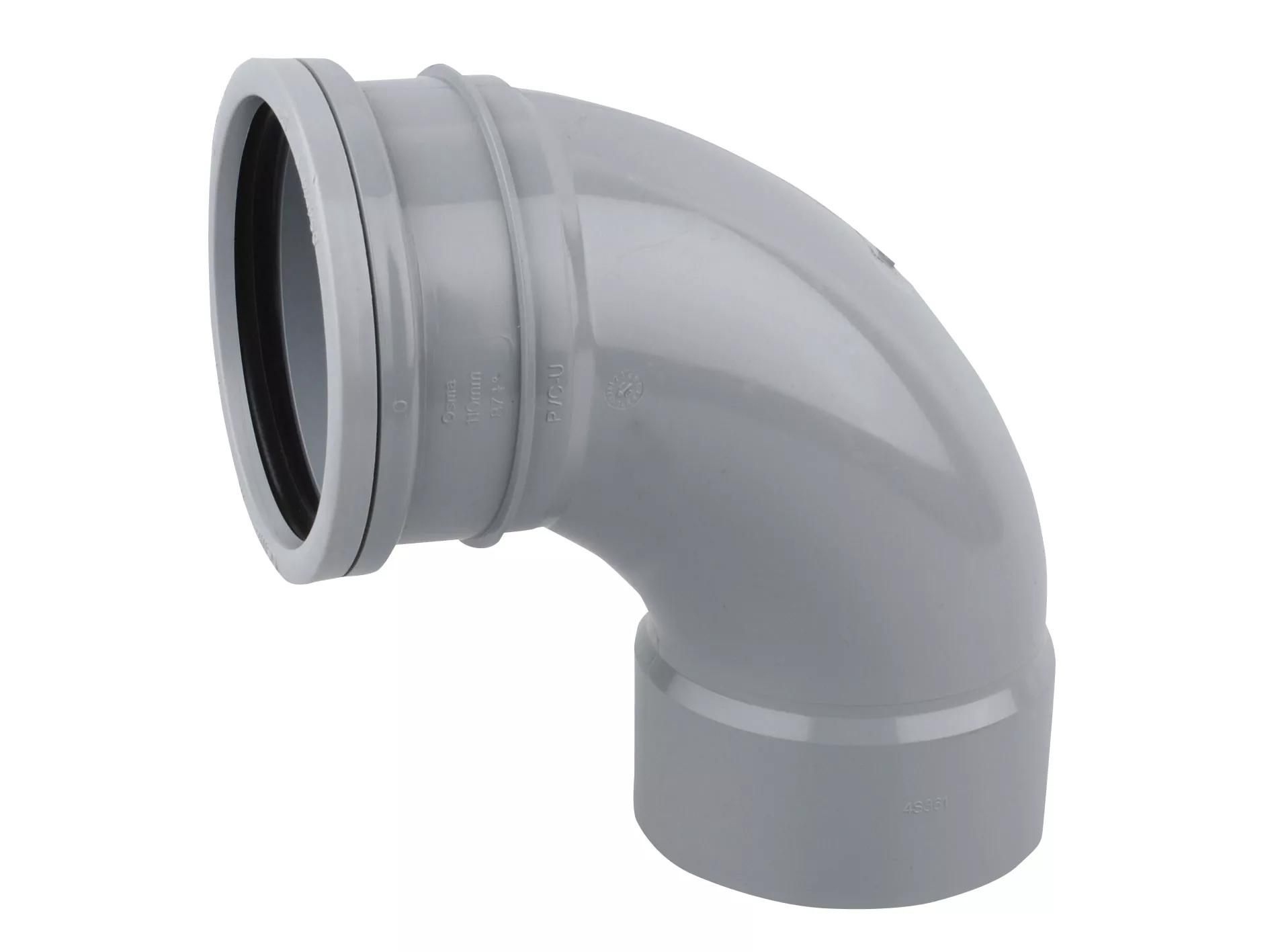

OsmaS PVCU Bend 90° GY 110 S/SW
Product Identifiers
Catalog Code4S361G
EAN Number5011479105450
SAP number3036579
| Label | Value |
|---|---|
| Product Shape | Bend |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polyvinyl chloride (PVC) |
| Material quality connection 1 | PVC-U |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polyvinyl chloride (PVC) |
| Material quality connection 2 | PVC-U |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Bend |
| Model | 2-part |
| Bend angle | 90° |
| Bend radius | 0mm |
| Reducing | No |
| Eccentric | No |
| System-specific | No |
| Nominal diameter connection 1 | DN 110 |
| Outer pipe diameter connection 1 | 118mm |
| Wall thickness, connection 1 | 3.5mm |
| Connection 1 | Plastic welded end |
| Nominal diameter connection 2 | DN 110 |
| Outer pipe diameter connection 2 | 132mm |
| Wall thickness, connection 2 | 3.5mm |
| Connection 2 | Slide sleeve |
| Main colour fitting | Grey |
| Zeta value | 0.0000 |
| Length | 230mm |
| Length of connection 1 | 50mm |
| Working length connection 1 | 0mm |
| Length of connection 2 | 50mm |
| Working length connection 2 | 0mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 0 |
| Max. operating pressure at 20 °C | 0bar |
| Max. operating pressure at max. medium temperature | 0bar |
| With thermal insulation | No |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | No |
| Capped | No |
| KIWA certified | Yes |
