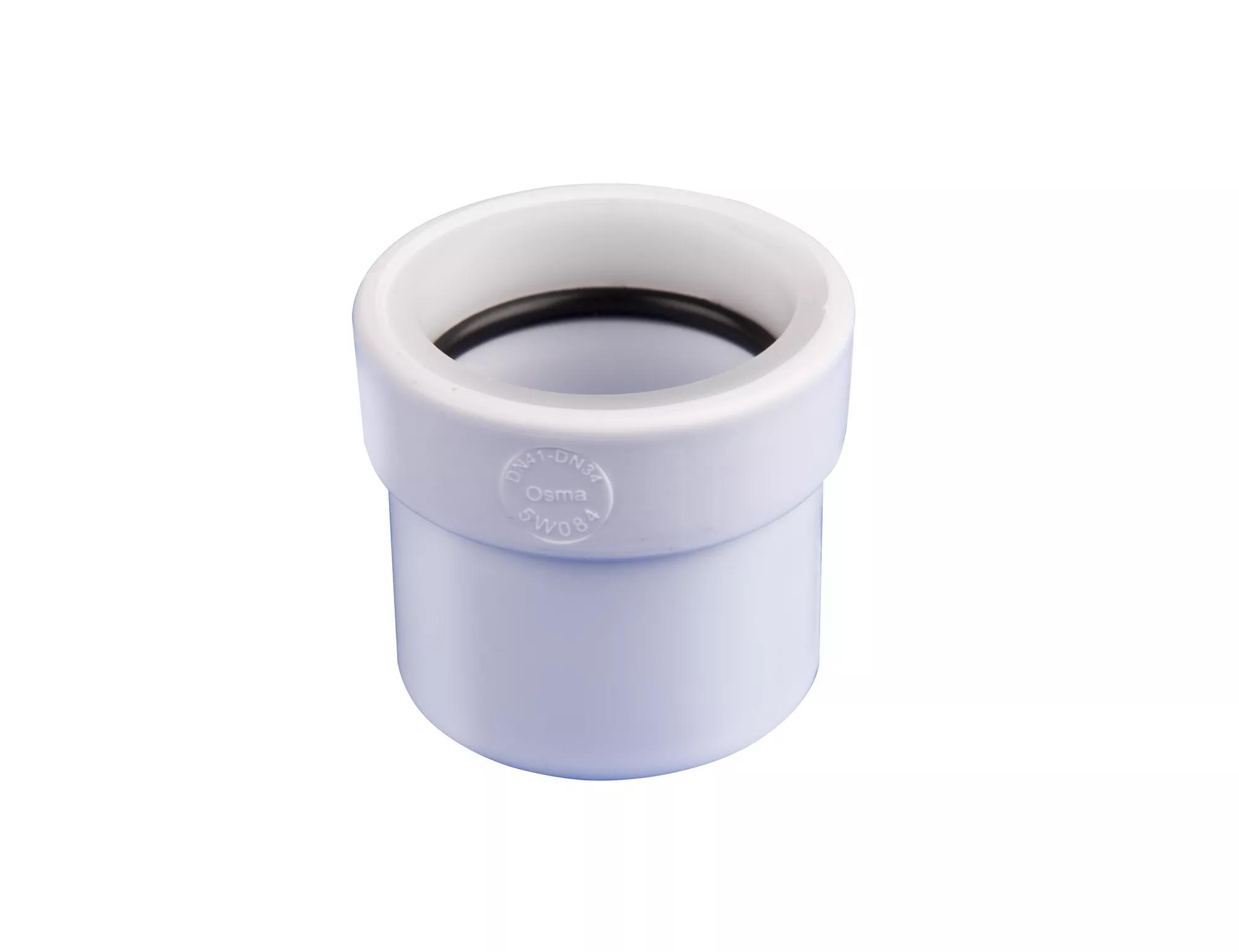

OsmaW PP Reducer WT 40x32
| 1 bag | 5 pieces |
|---|---|
| 1 pallet | 5000 pieces |
Product Identifiers
Catalog Code5W084W
EAN Number5011479195796
SAP number3035129
| 1 bag | 5 pieces |
|---|---|
| 1 pallet | 5000 pieces |
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Polypropylene (PP) |
Material quality connection 1 | Other |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polypropylene (PP) |
Material quality connection 2 | Other |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Straight |
Model | 2-part |
Bend angle | 0° |
Bend radius | 0mm |
Reducing | Yes |
Eccentric | No |
System-specific | No |
Nominal diameter connection 1 | DN 40 |
Outer pipe diameter connection 1 | 41.2mm |
Wall thickness, connection 1 | 2.3mm |
Connection 1 | Slide sleeve |
Nominal diameter connection 2 | DN 32 |
Outer pipe diameter connection 2 | 34.8mm |
Wall thickness, connection 2 | 2.2mm |
Connection 2 | Slide sleeve |
Main colour fitting | White |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
Zeta value | 0.0000 |
Length | 44mm |
Length of connection 1 | 34mm |
Working length connection 1 | 0mm |
Length of connection 2 | 33mm |
Working length connection 2 | 0mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Medium temperature (continuous) | 0 |
Max. operating pressure at 20 °C | 0bar |
Max. operating pressure at max. medium temperature | 0bar |
With thermal insulation | No |
Standard Dimension Ratio (SDR) | 0.0000 |
With sealing rings/gaskets | Yes |
Capped | No |
KIWA certified | Yes |
