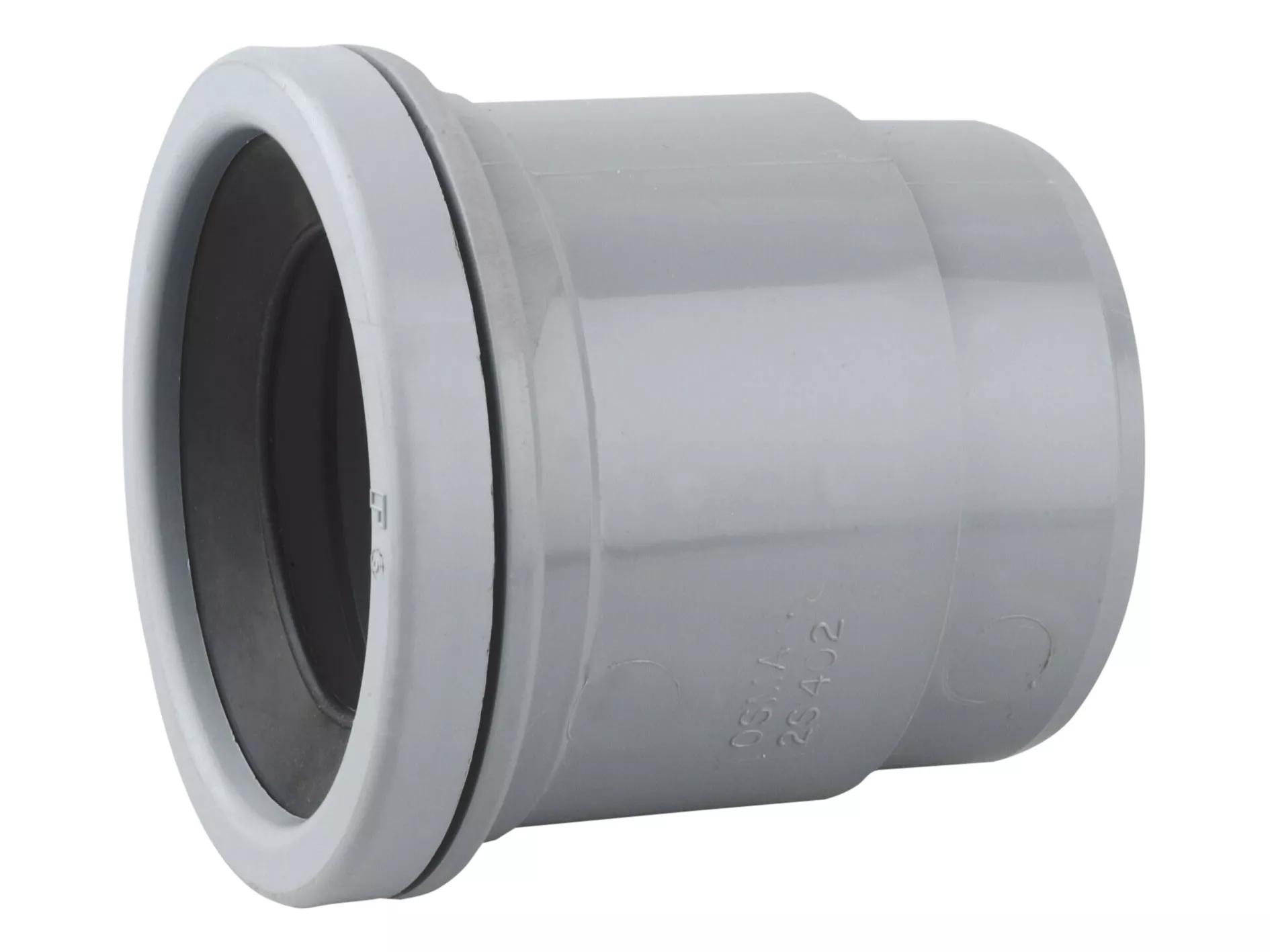

OsmaS PVCU Boss Adaptor GY 50 S/S
| 1 bag | 5 pieces |
|---|---|
| 1 pallet | 2000 pieces |
Product Identifiers
Catalog Code2S402G
EAN Number5011479104125
SAP number3032453
| 1 bag | 5 pieces |
|---|---|
| 1 pallet | 2000 pieces |
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Polyvinyl chloride (PVC) |
Material quality connection 1 | PVC-U |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polyvinyl chloride (PVC) |
Material quality connection 2 | PVC-U |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Straight |
Model | 2-part |
Bend angle | 0° |
Bend radius | 0mm |
Reducing | No |
Eccentric | No |
System-specific | No |
Nominal diameter connection 1 | DN 50 |
Outer pipe diameter connection 1 | 56.1mm |
Wall thickness, connection 1 | 2.4mm |
Connection 1 | Slide sleeve |
Nominal diameter connection 2 | DN 50 |
Outer pipe diameter connection 2 | 56.1mm |
Wall thickness, connection 2 | 2.4mm |
Connection 2 | Spigot / tube end |
Main colour fitting | Grey |
Material sealing | Thermoplastic elastomer (TPE) |
Zeta value | 0.0000 |
Length | 70mm |
Length of connection 1 | 28mm |
Working length connection 1 | 0mm |
Length of connection 2 | 28mm |
Working length connection 2 | 0mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Medium temperature (continuous) | 0 |
Max. operating pressure at 20 °C | 0bar |
Max. operating pressure at max. medium temperature | 0bar |
With thermal insulation | No |
Standard Dimension Ratio (SDR) | 0.0000 |
With sealing rings/gaskets | Yes |
Capped | No |
KIWA certified | Yes |
