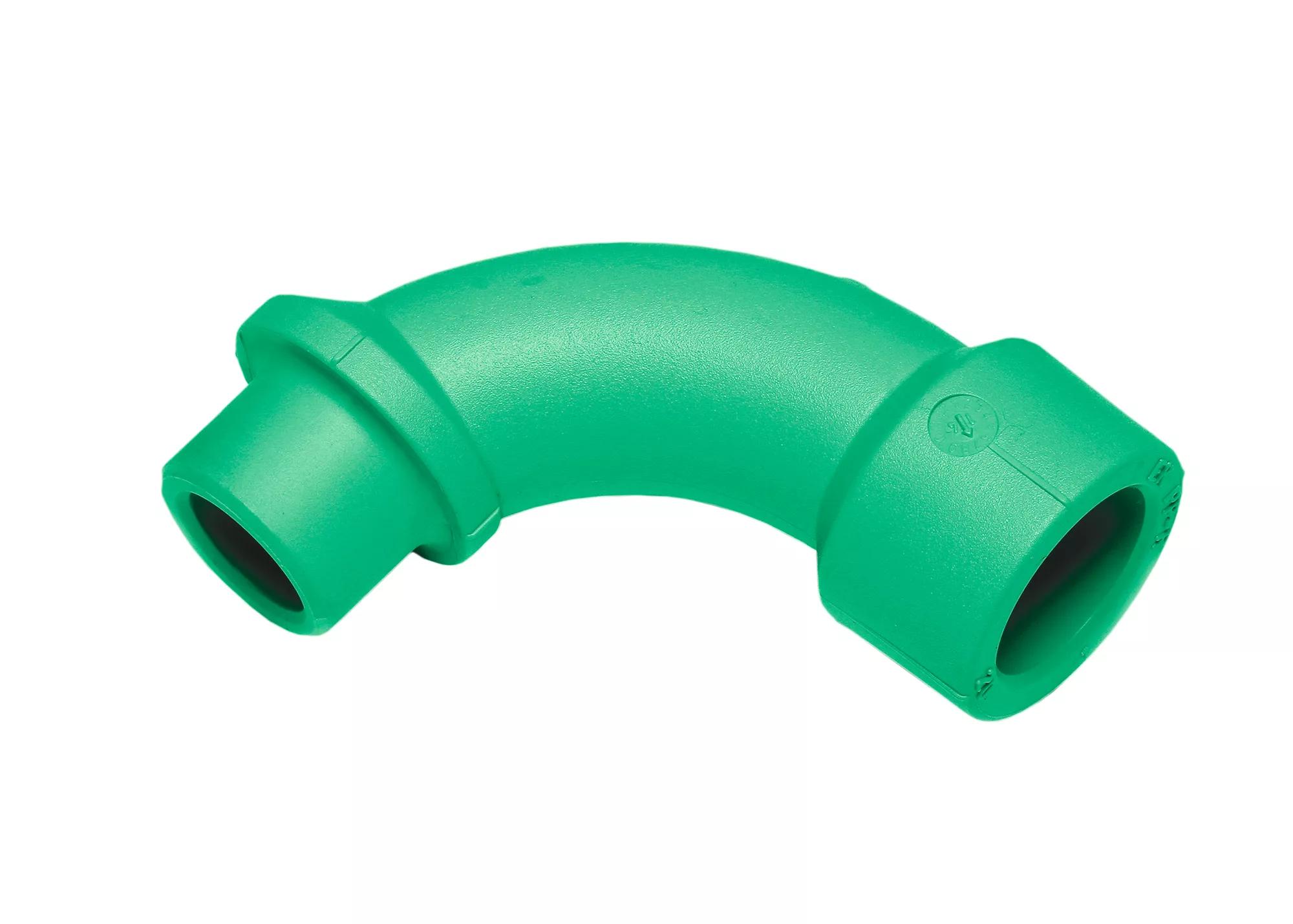

EK PPRCT Elbow/Bend GN 25

ІДЕНТИФІКАТОРИ ПРОДУКТУ

ДЕТАЛІ УПАКОВКИ

Label	Value
Shape	Bend

Wall thickness, connection 2	0mm

Wrench width union nut	0mm

LPCB quality mark	No

Connection 1	Welding connection

With drain valve	No

Gastec QA mark	No

KOMO certified	No

Length of connection 1	0mm

Main colour fitting	Green

Length	0mm

Type approval according to BBR/EKS	No

With de-aerator	No

Connection 2	Welding connection

Model	1-part

Material sealing	Other

Contour code connection 1	Other

ULC quality mark	No

ETIM Classification	EC003024

Surface treatment connection 1	Untreated

Wrench width	0mm

Bend radius	0mm

Max. operating pressure at 20 °C	0bar

System-specific	Yes

Bend angle	0°

Working length connection 2	0mm

UL quality mark	No

Zeta value	0

VdS quality mark	No

Reducing	No

Outer pipe diameter connection 1	0mm

Standard Dimension Ratio (SDR)	0

High tensile strength	No

DIN-CERTCO certificate	No

KIWA certified	No

Nominal diameter connection 1	DN 25

Outer pipe diameter connection 2	0mm

Nominal diameter connection 2	Other

Material quality connection 2	PP-R

Wall thickness, connection 1	0mm

With buffer stud	No

Length of connection 2	0mm

Material quality connection 1	PP-R

With sealing rings/gaskets	No

FM quality mark	No

Surface protection connection 2	Untreated

Surface treatment connection 2	Untreated

Eccentric	No

Material connection 1	Polypropylene (PP)

Material connection 2	Polypropylene (PP)

Capped	No

Working length connection 1	0mm

Contour code connection 2	Other

Surface protection connection 1	Untreated
