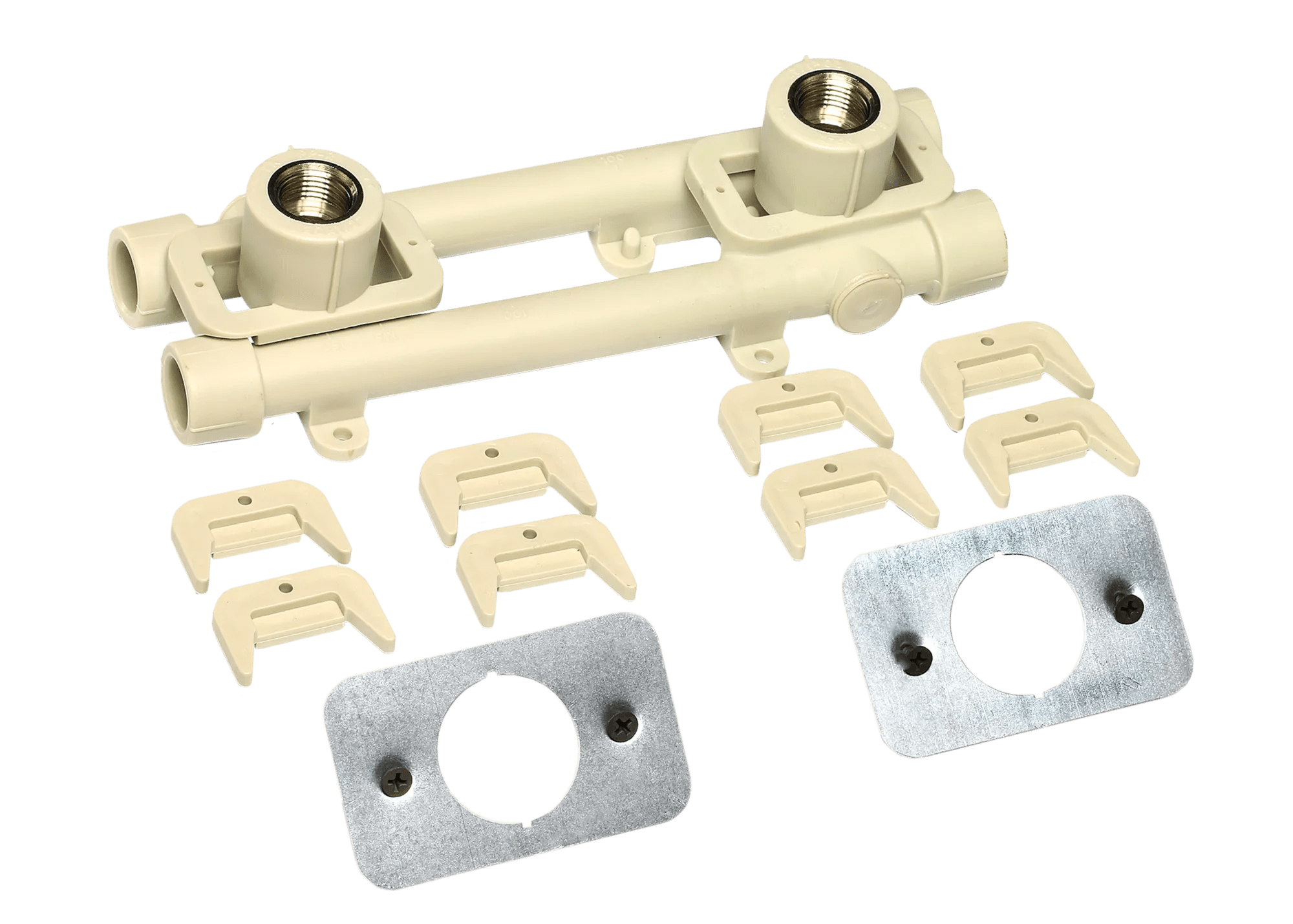

PPRCT Wall Mount.Grp.w/Tap (Gyp) GY 20
Product Identifiers
Catalog CodeSNKK020SRCT
EAN Number8595705317734
SAP number3093903
| Label | Value |
|---|---|
| ETIM Classification | EC003026 |
| Material | Polypropylene (PP) |
| Material quality | PP-R |
| Surface protection | Other |
| Surface treatment | Other |
| Model | Other |
| Swept entry type (with inner radius) | No |
| Reducing | No |
| Multi-part | No |
| System-specific | No |
| Nominal diameter connection 1 | DN 20 |
| Outer pipe diameter connection 1 | 20mm |
| Wall thickness, connection 1 | 0mm |
| Connection 1 | Welding connection |
| Nominal diameter connection 2 | DN 32 |
| Outer pipe diameter connection 2 | 20mm |
| Wall thickness, connection 2 | 0mm |
| Connection 2 | Welding connection |
| Nominal diameter connection 3 | DN 20 |
| Outer pipe diameter connection 3 | 20mm |
| Wall thickness, connection 3 | 0mm |
| Connection 3 | Welding connection |
| Nominal diameter connection 4 | DN 110 |
| Outer pipe diameter connection 4 | 20mm |
| Wall thickness, connection 4 | 0mm |
| Connection 4 | Welding connection |
| Contour code | Other |
| Flange compression class | Other |
| Flange standard | Other |
| Main colour fitting | Grey |
| Length of connection 1 | 0mm |
| Working length connection 1 | 0mm |
| Length of connection 2 | 0mm |
| Working length connection 2 | 0mm |
| Length of connection 3 | 0mm |
| Working length connection 3 | 0mm |
| Length of connection 4 | 0mm |
| Working length connection 4 | 0mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Max. operating pressure at 20 °C | 0bar |
| Ring stiffness class | Other |
| Standard Dimension Ratio (SDR) | 5.0000 |
| With sealing rings/gaskets | No |
| With buffer stud | No |
| Capped | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
