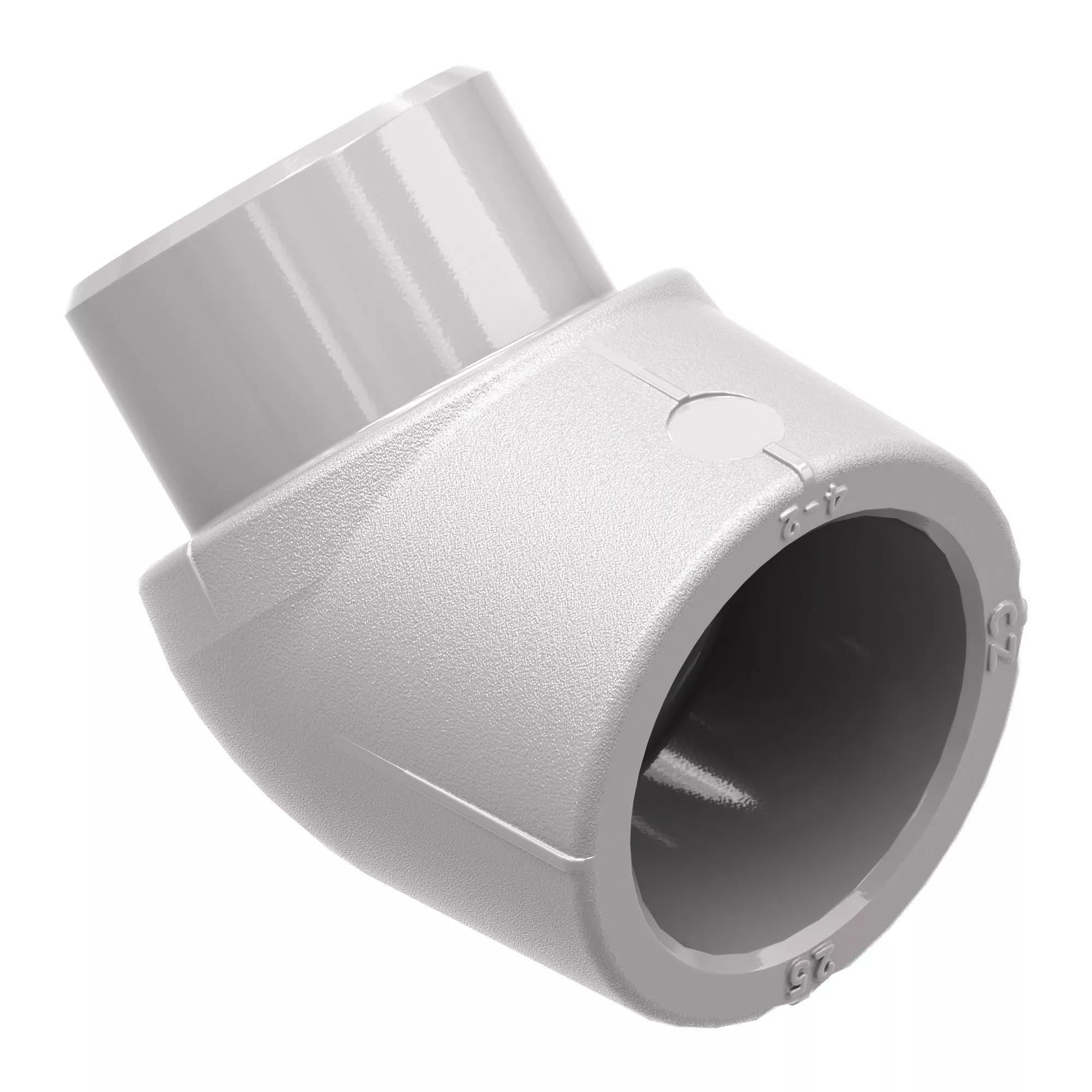

EK PPRCT Elbow 45° I/E GN 25

ІДЕНТИФІКАТОРИ ПРОДУКТУ

ДЕТАЛІ УПАКОВКИ

Label	Value
Shape	Bend

Zeta value	0

Bend radius	0mm

With sealing rings/gaskets	No

UL quality mark	No

Connection 2	Welding connection

Max. operating pressure at 20 °C	0bar

Nominal diameter connection 2	Other

Wrench width union nut	0mm

Gastec QA mark	No

Working length connection 1	0mm

Nominal diameter connection 1	DN 25

Eccentric	No

FM quality mark	No

Wrench width	0mm

Working length connection 2	0mm

System-specific	Yes

Model	1-part

With buffer stud	No

High tensile strength	No

Wall thickness, connection 1	0mm

LPCB quality mark	No

With drain valve	No

Wall thickness, connection 2	0mm

DIN-CERTCO certificate	No

With de-aerator	No

Surface treatment connection 1	Untreated

Capped	No

Main colour fitting	Green

Outer pipe diameter connection 2	0mm

ULC quality mark	No

VdS quality mark	No

Material quality connection 1	PP-R

Length of connection 2	0mm

KIWA certified	No

Material quality connection 2	PP-R

Length	0mm

Contour code connection 1	Other

ETIM Classification	EC003024

Connection 1	Welding connection

Bend angle	45°

Surface treatment connection 2	Untreated

Material connection 2	Polypropylene (PP)

Surface protection connection 1	Untreated

Surface protection connection 2	Untreated

Material sealing	Other

Length of connection 1	0mm

Outer pipe diameter connection 1	0mm

Type approval according to BBR/EKS	No

Standard Dimension Ratio (SDR)	5

KOMO certified	No

Contour code connection 2	Other

Reducing	No

Material connection 1	Polypropylene (PP)
