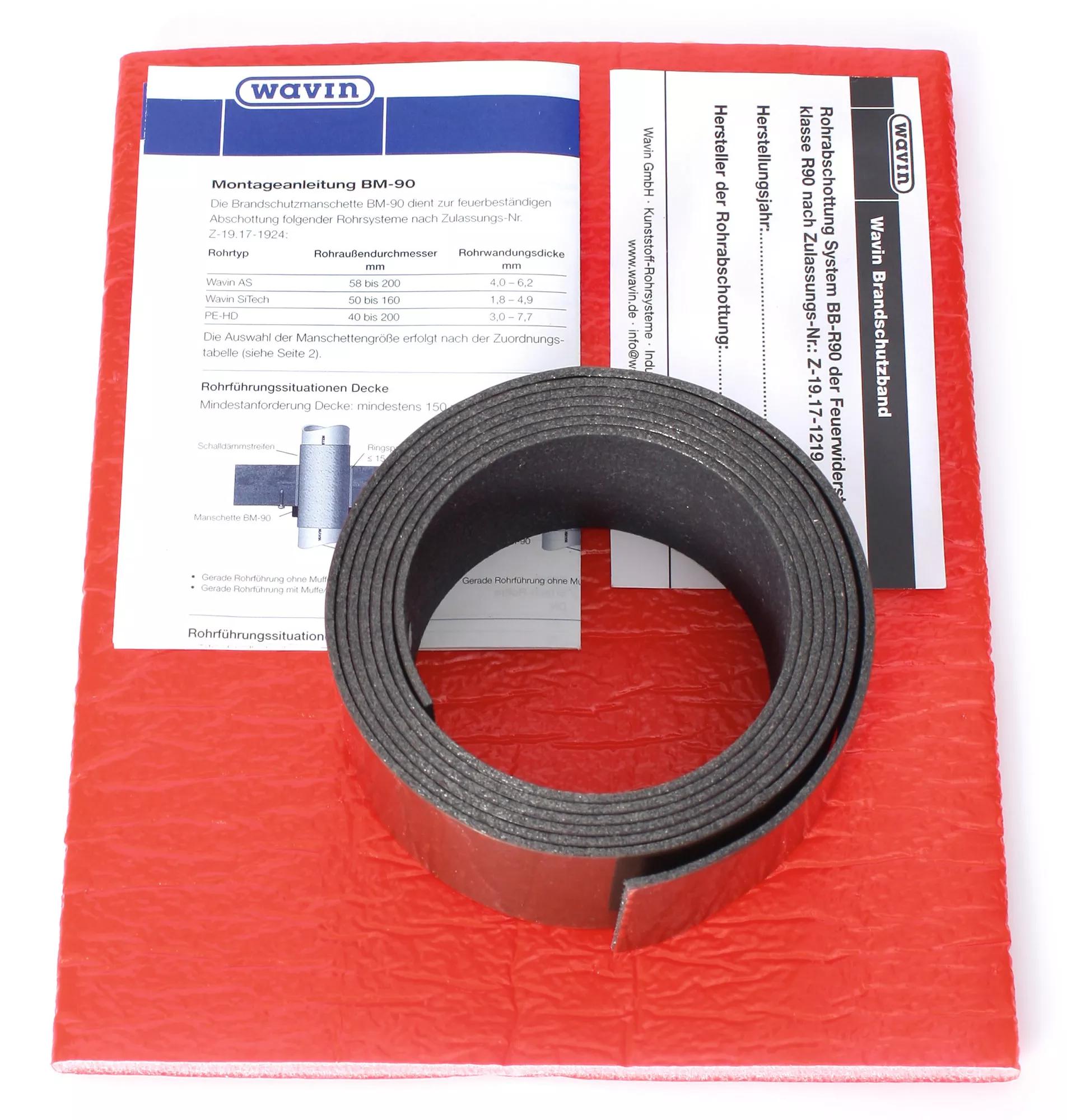

Fire Stop strip BB-R90 90-110mm
| 1 bag | 1 pieces |
|---|---|
| 1 box | 60 pieces |
Product Identifiers
Catalog Code90501254
EAN Number8712993855780
SAP number4032410
| 1 bag | 1 pieces |
|---|---|
| 1 box | 60 pieces |
| Label | Value |
|---|---|
ETIM Classification | EC011553 |
Material sleeve | Other |
Shape | Other |
Outer pipe diameter | 110 |
Sleeve lock | Other |
Fire-resistance, vertical | 90 min |
Fire-resistance, horizontal | 90 min |
Reaction temperature | 80°C |
Stop system | Chemical |
With mounting material | No |
Width, sleeve | 100mm |
Height, sleeve | 100mm |
Outer diameter, sleeve | 100mm |
Length of sleeve | 50mm |
Type approval according to BBR/EKS | No |
