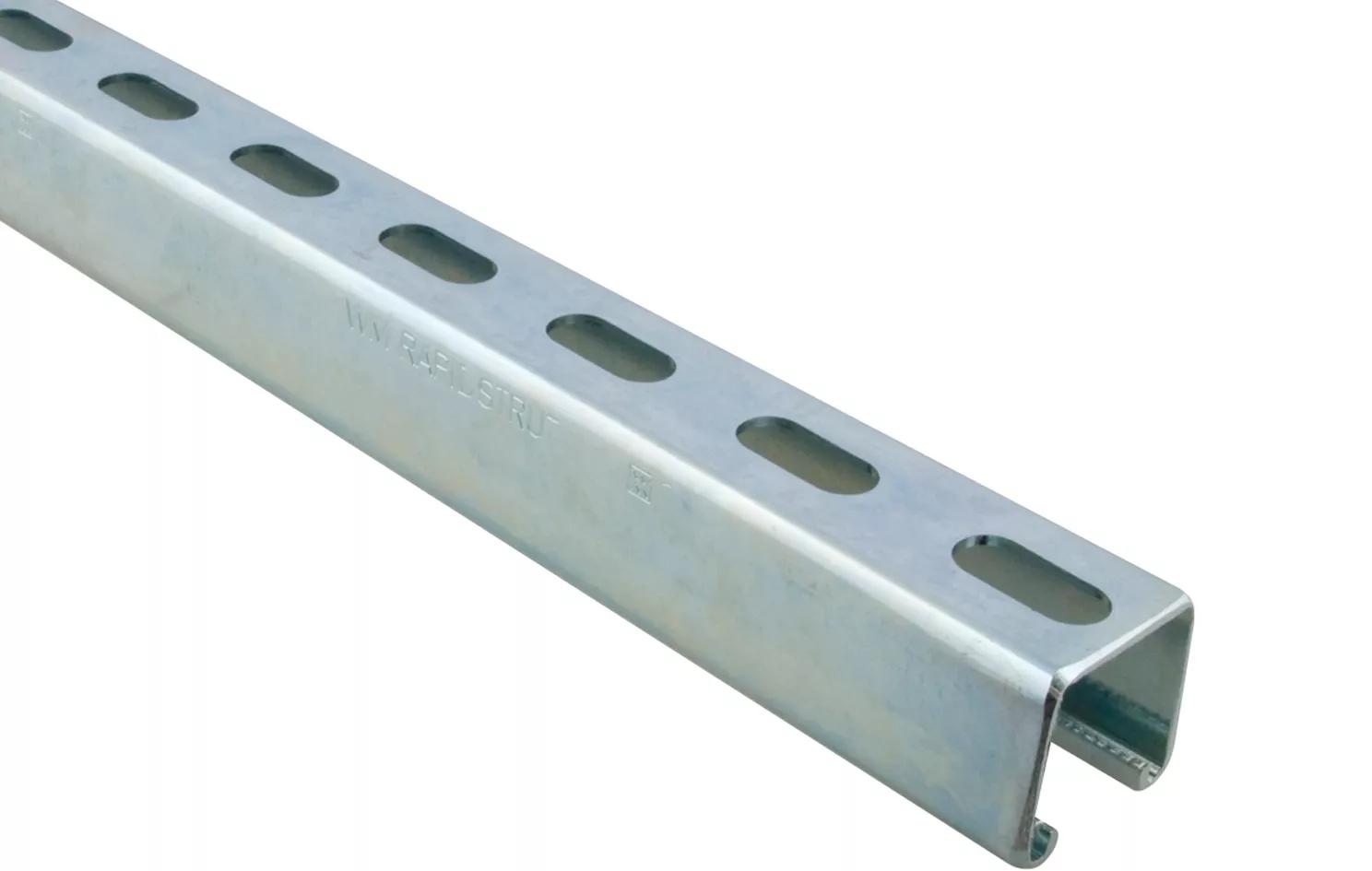

QS Rail 40-160 / 30x30 L=6
Product Identifiers
Catalog Code96505602,4222003036
EAN Number8712993658732
SAP number4011965
| Label | Value |
|---|---|
| ETIM Classification | EC000386 |
| Length | 6mm |
| Width | 30mm |
| Height | 30mm |
| Slit width | 30mm |
| Material thickness | 2mm |
| Profile shape | C-profile |
| Model | Singular profile |
| Type of perforation | Rim perforated |
| Hole width | 26.5mm |
| With toothing | No |
| Snap-off | No |
| Load bearing capacity | 1.349kN |
| Area moment of inertia Iy | 1.71cm⁴ |
| Area of inertia Iz | 2.65cm⁴ |
| Moment of resistance Wy | 1.08cm³ |
| Moment of resistance Wz | 1.76cm³ |
| Suitable for circuit integrity | Yes |
| Material | Steel |
| Material quality | Rustproof and acidproof steel |
| Surface protection | Hot-dip galvanized |
| Layer thickness surface protection | 0µm |
| Colour | Other |
| RAL-number | 0.0000 |
| Weight | 8.52kg |
