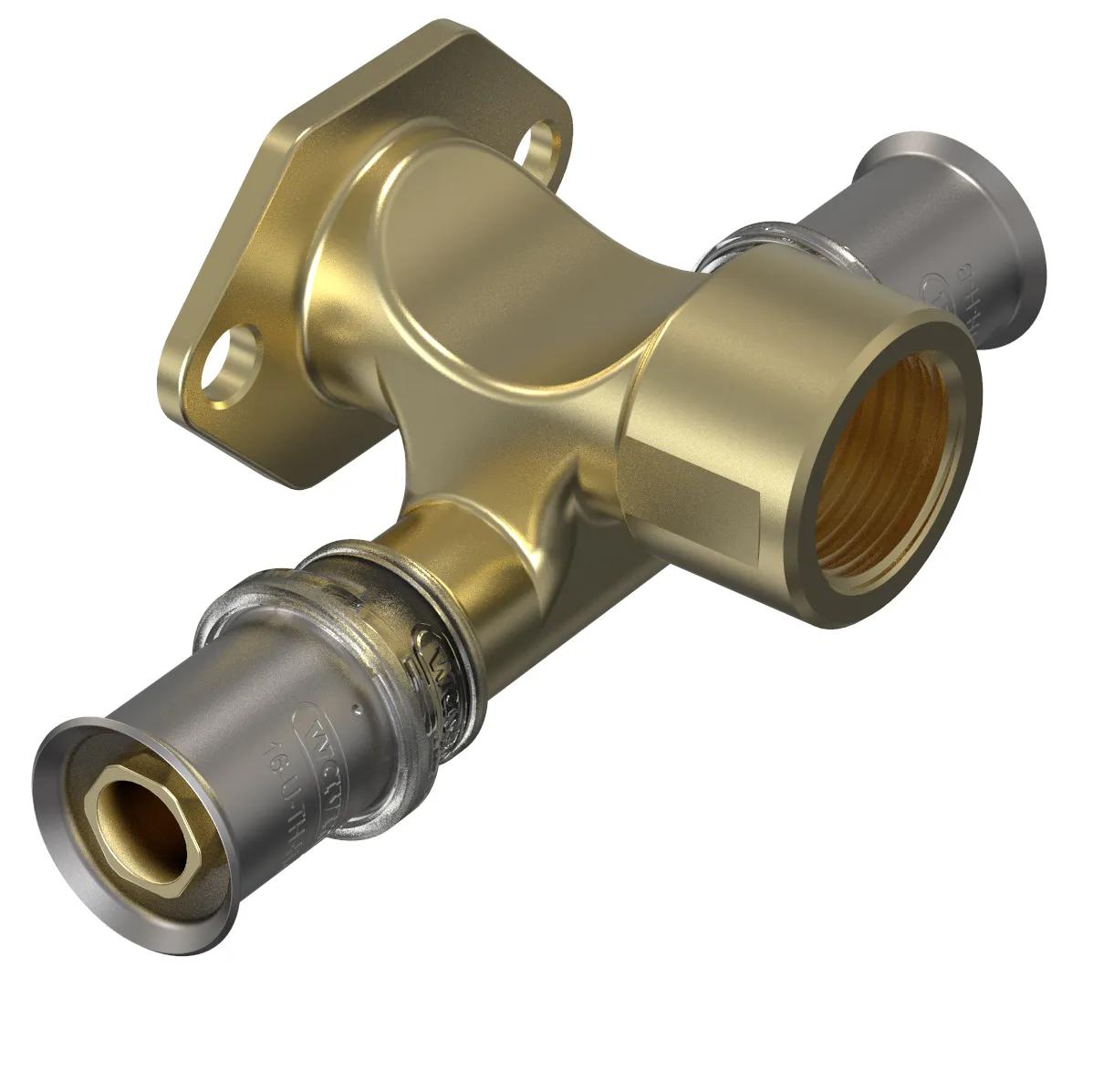

Tigris M5 Wall T-FT 16x1/2"x16
Product Identifiers
Catalog Code
EAN Number4026294899300
SAP number4064398
| Label | Value |
|---|---|
| ETIM Classification | EC003099 |
| Material quality | Other |
| Surface protection | Untreated |
| Shape | Other |
| System-specific | Yes |
| Nominal diameter connection 1 | Other |
| Outer pipe diameter connection 1 | 16mm |
| Nominal diameter connection 2 | 1/2 inch (15) |
| Outer pipe diameter connection 2 | 12.7mm |
| Connection | Press sleeve |
| Thread size tap connection | 1/2 inch |
| Length of connection 1 | 25.5mm |
| Working length connection 1 | 25.5mm |
| Length of connection 2 | 50mm |
| Working length connection 2 | 0mm |
| Length from wall plate | 50mm |
| Length of connection 3 | 0mm |
| Working length connection 3 | 0mm |
| Max. operating pressure at 20 °C | 10bar |
| Zeta value | 7.0000 |
| Contour code | TH/U |
| Zeta value branch fluent separation according to DVGW W 575 | 0.0000 |
| Zeta value gangway current separation according to DVGW W 575 | 0.0000 |
| KIWA certified | Yes |
| Gastec QA mark | No |
