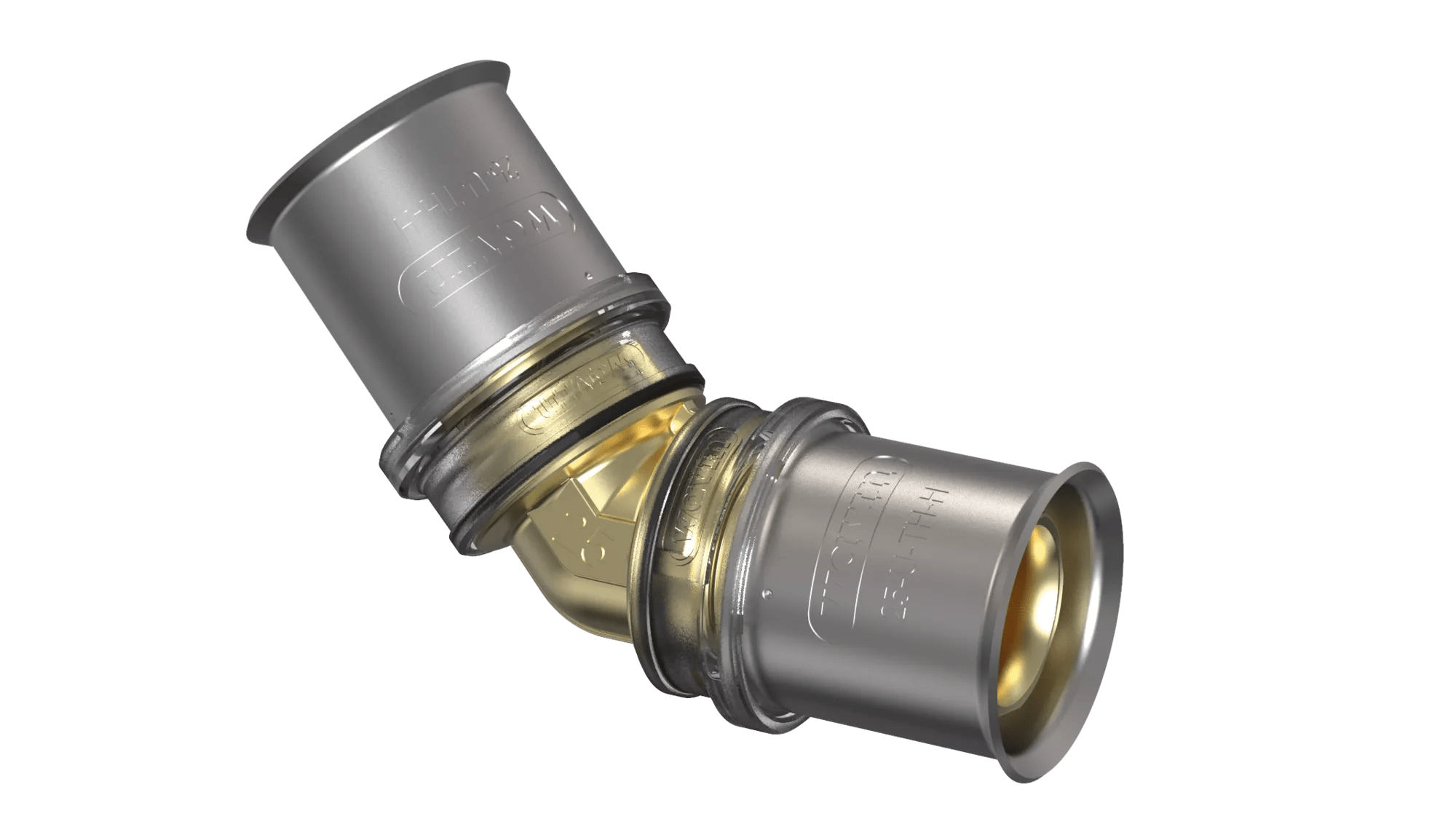

Tigris M5 Elbow 45° 25
PRODUCT IDENTIFIERS
- EAN Number
- 4026294897382
- SAP number
- 4064206
PACKAGING DETAILS
- 1 bag5 pieces
- 1 box40 pieces
- 1 pallet2400 pieces
| Label | Value |
|---|---|
Nominal diameter connection 2 | DN 20 |
Bend radius | 0.0000EU570448 |
Contour code connection 1 | Several |
Wall thickness, connection 1 | 2.5000EU570448 |
Outer pipe diameter connection 2 | 25.0000EU570448 |
Standard Dimension Ratio (SDR) | 0 |
With drain valve | No |
Nominal diameter connection 1 | DN 20 |
Material connection 1 | Brass |
Zeta value | 1.6 |
Length of connection 2 | 30.5000EU570448 |
Surface protection connection 1 | Untreated |
Length | 0.0000EU570448 |
With thermal insulation | No |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
KIWA certified | Yes |
Length of connection 1 | 30.5000EU570448 |
Wrench width union nut | 0.0000EU570448 |
Model | 1-part |
With de-aerator | No |
Medium temperature (continuous) | 0 - 70 |
Connection 2 | Press sleeve |
Shape | Elbow (fitting) |
Outer pipe diameter connection 1 | 25.0000EU570448 |
Material quality connection 1 | Other |
Wrench width | 0.0000EU570448 |
High tensile strength | Yes |
Capped | No |
Material connection 2 | Brass |
ETIM Classification | EC003024 |
Surface treatment connection 2 | Untreated |
Reducing | No |
Wall thickness, connection 2 | 2.5000EU570448 |
Surface protection connection 2 | Untreated |
Max. operating pressure at 20 °C | 10.0000EU570056 |
Main colour fitting | Other |
Working length connection 2 | 30.5000EU570448 |
Gastec QA mark | No |
Working length connection 1 | 30.5000EU570448 |
System-specific | Yes |
Surface treatment connection 1 | Untreated |
Contour code connection 2 | Several |
Bend angle | 45.0000EU570383 |
With sealing rings/gaskets | Yes |
Connection 1 | Press sleeve |
Material quality connection 2 | Other |
With buffer stud | Yes |
Eccentric | No |
