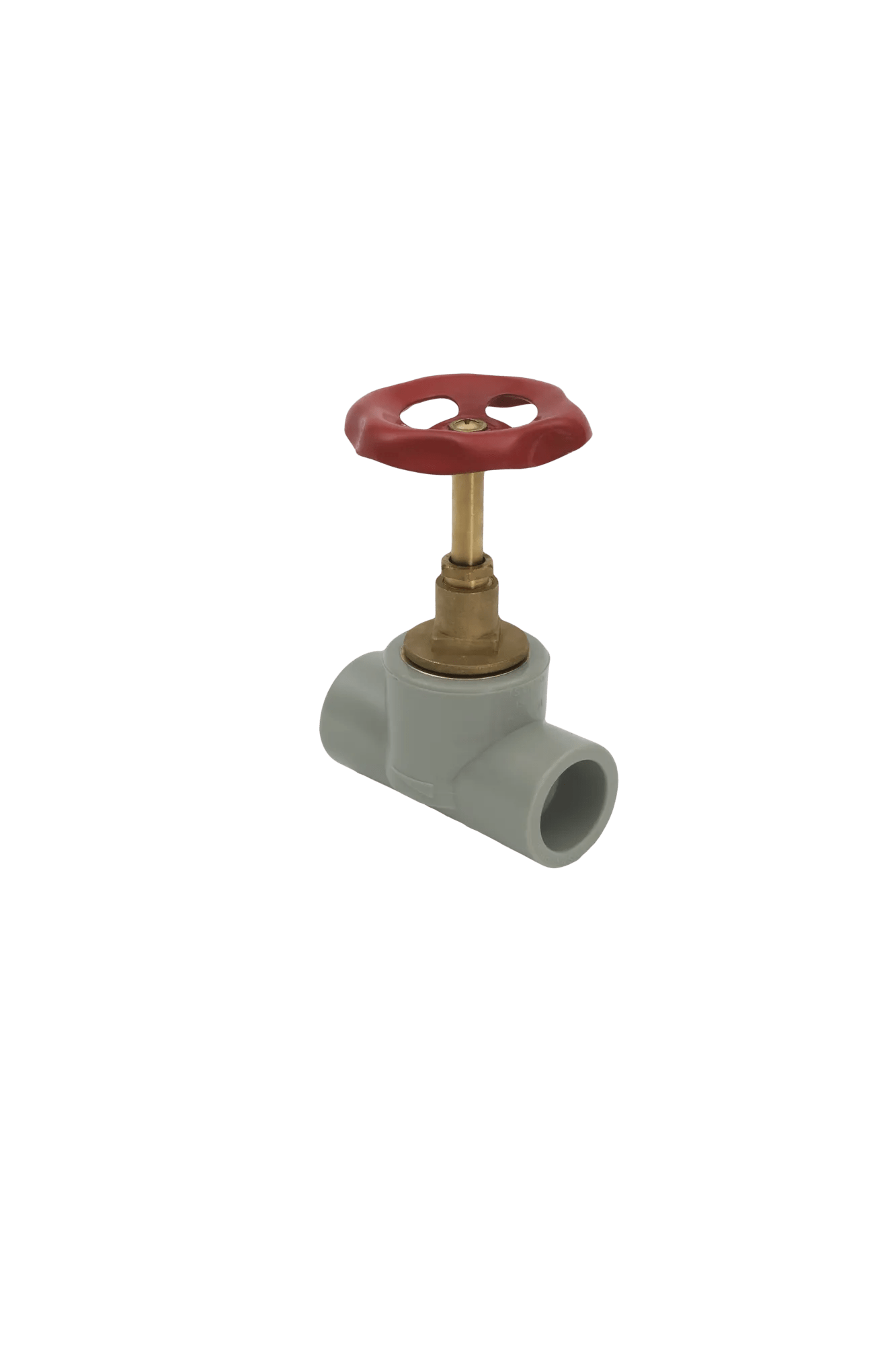

PPr Valve GY 20
Product Identifiers
Wavin kataloga kods
EAN numurs8680099374637
SAP numurs3078894
| Label | Value |
|---|---|
| ETIM Classification | EC010163 |
| Material quality | Polypropylene (PP) |
| Nominal inner diameter | DN 20 |
| Ārējais caurules diametrs, visi savienojumi | 28mm |
| Savienojums 1 | Plastic welded end |
| Ar savienojuma 1 sakabi | No |
| Savienojums 2 | Plastic welded end |
| Ar savienojuma 2 sakabi | No |
| Article compression class | PN 20 |
| FM kvalitātes zīme | No |
| UL kvalitātes zīme | No |
| ULC kvalitātes zīme | No |
| LPCB kvalitātes zīme | No |
| Max. pressure difference at 20 °C | 20bar |
| Surface protection | Untreated |
| Pārsega veids | Screwed |
| With position indicator | Yes |
| Spindle and/or hand wheel rising | Yes |
| Bellows seal | Yes |
| Blīvējums | Rubber |
| With drain plug | No |
| Savienojuma 1 garums | 37mm |
| Darba garums 1 | 15mm |
| Savienojuma 2 garums | 37mm |
| Darba garums 2 | 15mm |
| Handle/hand wheel height | 28.4mm |
| Roktura garums/rokas rata diametrs | 22mm |
