Hep₂O Key - How to Install Guide

Welcome to our Hep₂O installation how-to page which includes quick tips and tricks to learn to successfully install Hep₂O Key fittings to any solution within any household. Hep₂O ensures that water is successfully pumped around the property enabling the house to have easy access to both hot and cold water.

This straightforward step-by-step page explores how our stress-free Hep₂O push-fit system works, how to install Hep₂O fittings in common applications and how to connect Hep₂O to other systems.

How to Install

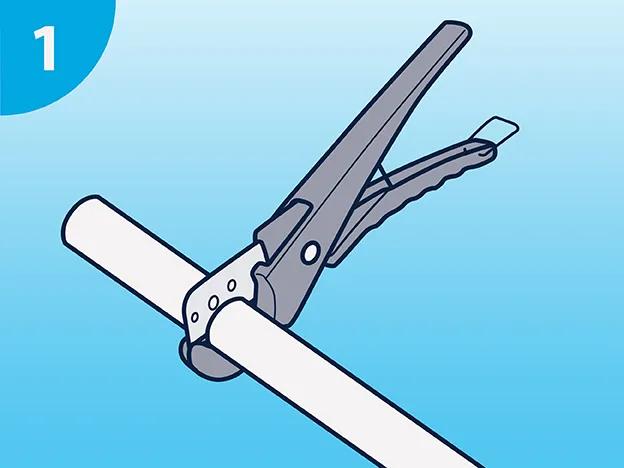

Step 1.

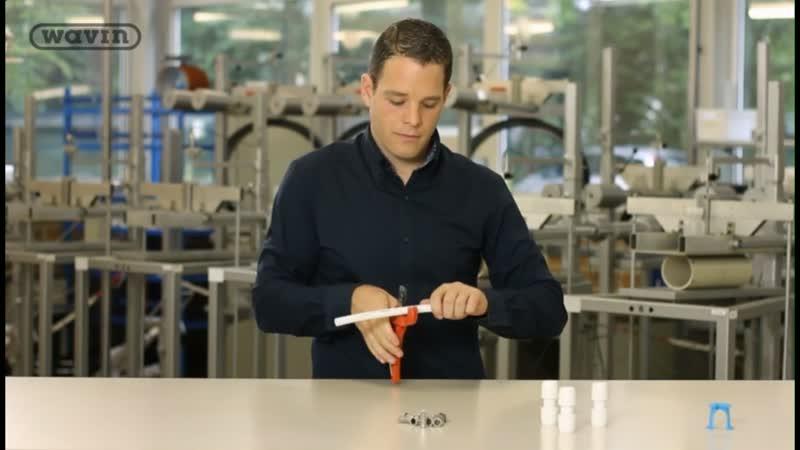

Cut the pipe squarely at one of the '^' marks using recommended pipe cutters and ensure the pipe end is free from burrs.

Step 1.

Cut the pipe squarely at one of the '^' marks using recommended pipe cutters and ensure the pipe end is free from burrs.

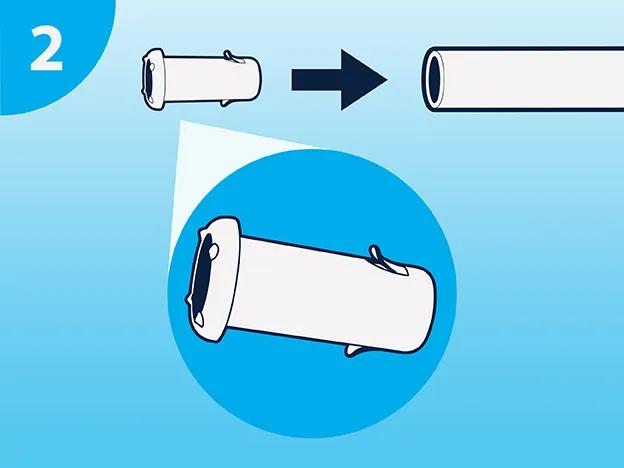

Step 2.

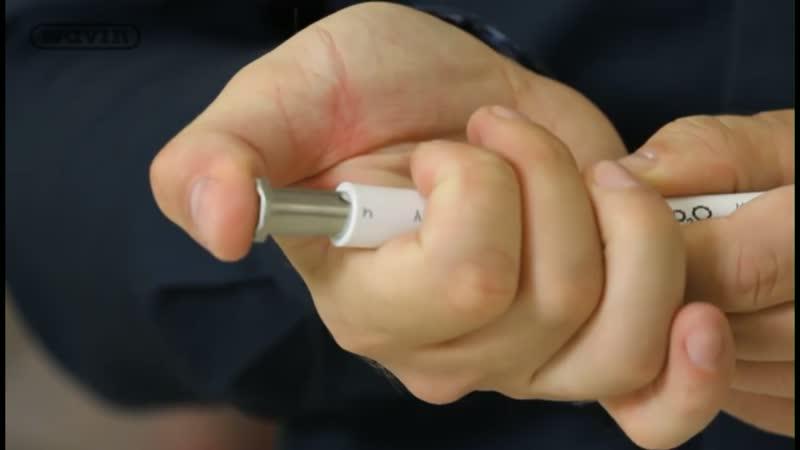

Insert a Hep₂O SmartSleeve™ pipe support sleeve into the pipe end.

Step 2.

Insert a Hep₂O SmartSleeve™ pipe support sleeve into the pipe end.

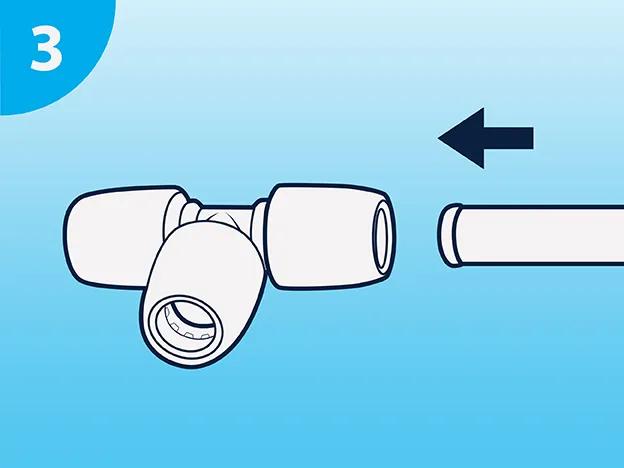

Step 3.

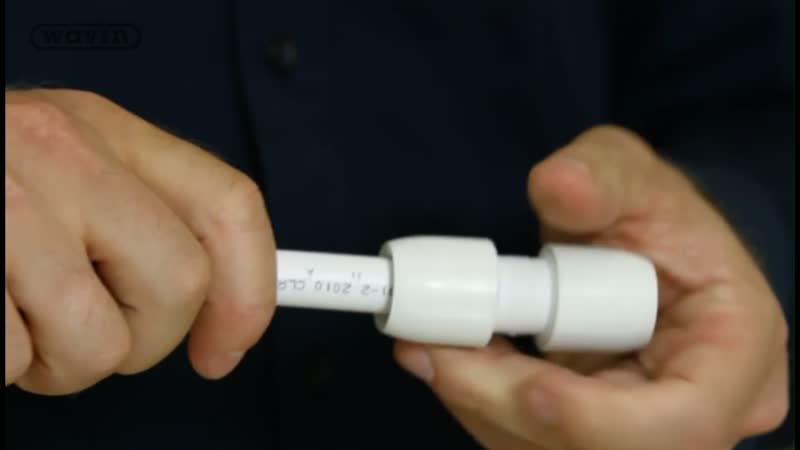

Push the pipe firmly into the fitting.

Step 3.

Push the pipe firmly into the fitting.

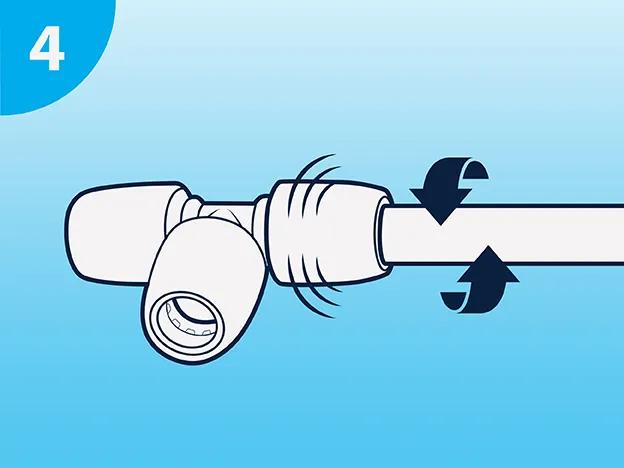

Step 4.

Use Hep2O’s unique In4Sure™ joint recognition technology to ‘feel’ if the pipe is fully inserted. Tug back on the pipe to ensure the grab-ring engages correctly and prevents the pipe withdrawing.

Step 4.

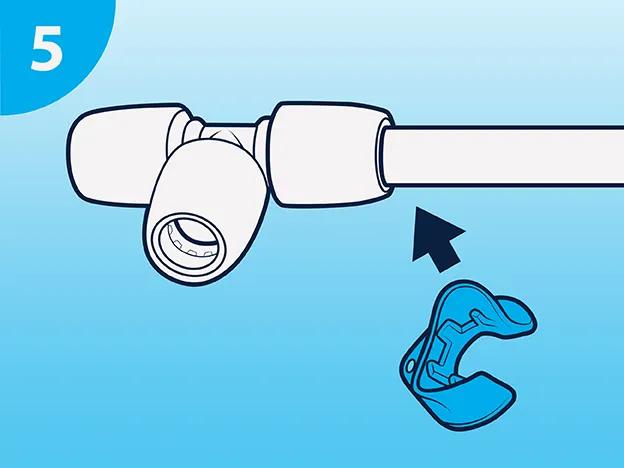

Step 5.

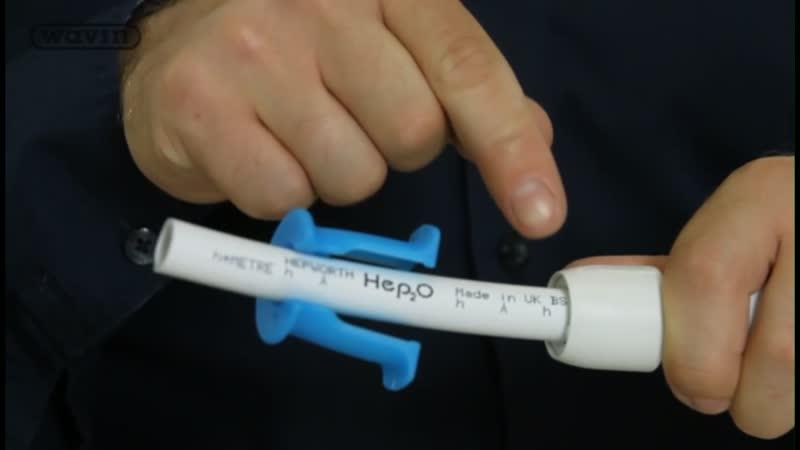

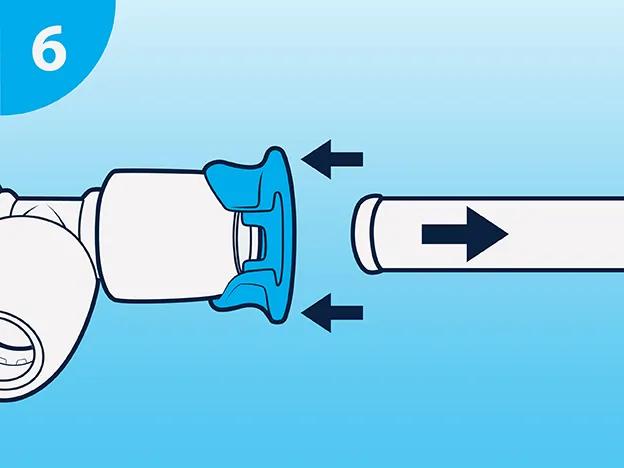

Clip the HepKey™ round the pipe next to the joint to be demounted. Slide the HepKey™ up into the fitting and press. Withdraw the pipe from the fitting.

Step 5.

Clip the HepKey™ round the pipe next to the joint to be demounted. Slide the HepKey™ up into the fitting and press. Withdraw the pipe from the fitting.

Step 1.

Cut the pipe squarely at one of the '^' marks using recommended pipe cutters and ensure the pipe end is free from burrs.

Step 1.

Cut the pipe squarely at one of the '^' marks using recommended pipe cutters and ensure the pipe end is free from burrs.

Step 2.

Insert a Hep₂O SmartSleeve™ pipe support sleeve into the pipe end.

Step 2.

Insert a Hep₂O SmartSleeve™ pipe support sleeve into the pipe end.

Step 3.

Push the pipe firmly into the fitting.

Step 3.

Push the pipe firmly into the fitting.
