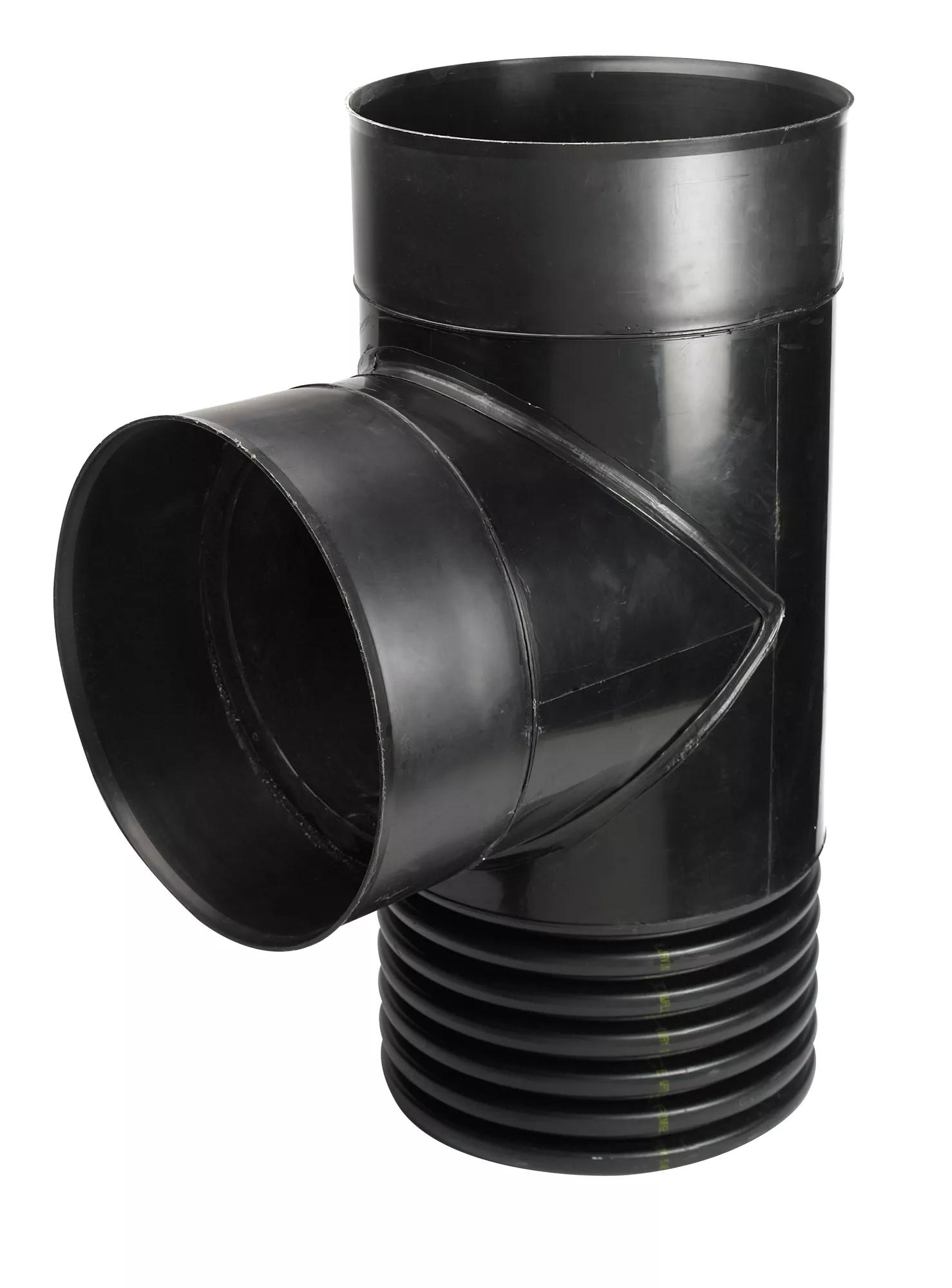

TwinWall S/S Junct 90° BK 500
Product Identifiers
Catalog Code500TW500X90
EAN Number5011479162255
SAP number4038833
Commercial
| Label | Value |
|---|---|
| Wavin Shape | Junction |
| Label | Value |
|---|---|
| ETIM Classification | EC003025 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polypropylene (PP) |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Material connection 3 | Polypropylene (PP) |
| Material quality connection 3 | Other |
| Surface protection connection 3 | Untreated |
| Surface treatment connection 3 | Untreated |
| Model | T-piece |
| Angle | 90° |
| Reducing | No |
| Multi-part | No |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 500 |
| Outer pipe diameter connection 1 | 572mm |
| Wall thickness, connection 1 | 4mm |
| Connection 1 | Spigot / tube end |
| Nominal diameter connection 2 | DN 500 |
| Outer pipe diameter connection 2 | 601mm |
| Wall thickness, connection 2 | 4mm |
| Connection 2 | Spigot / tube end |
| Nominal diameter connection 3 | DN 500 |
| Outer pipe diameter connection 3 | 601mm |
| Wall thickness, connection 3 | 4mm |
| Connection 3 | Ribbing groove (groove coupling) |
| Main colour fitting | Black |
| Length of connection 1 | 702mm |
| Working length connection 1 | 702mm |
| Length of connection 2 | 570mm |
| Working length connection 2 | 339mm |
| Length of connection 3 | 570mm |
| Working length connection 3 | 339mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Max. operating pressure at max. medium temperature | 0bar |
| Max. operating pressure at 20 °C | 0bar |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | No |
| With thermal insulation | No |
| Capped | No |
| Zeta value branch fluent separation according to DVGW W 575 | 0.0000 |
| Zeta value gangway current separation according to DVGW W 575 | 0.0000 |
| Zeta value counter current separation according to DVGW W 575 | 0.0000 |
| Zeta value branch merging flow according to DVGW W 575 | 0.0000 |
| Zeta value passage merging flow according to DVGW W 575 | 0.0000 |
| Zeta value counter merging flow according to DVGW W 575 | 0.0000 |
