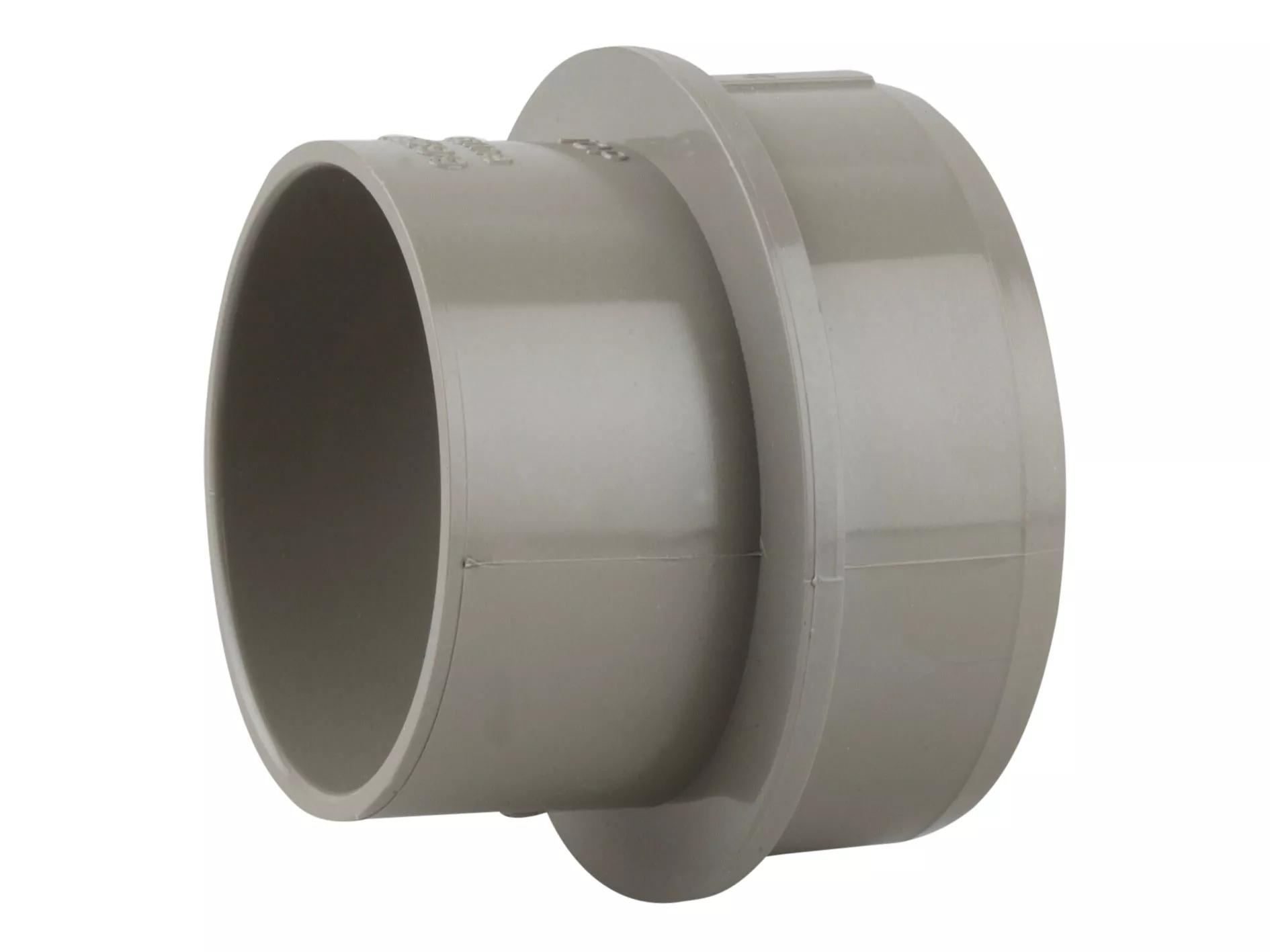

OsmaS PVCU Boss Adaptor 50x40 SW/S
| 1 bag | 10 pieces |
|---|
Product Identifiers
Catalog Code2S299E
EAN Number5011479117712
SAP number3035180
| 1 bag | 10 pieces |
|---|
| Label | Value |
|---|---|
Surface treatment connection 2 | Untreated |
Standard Dimension Ratio (SDR) | 0 |
Outer pipe diameter connection 1 | 61mm |
Medium temperature (continuous) | 0 |
Length | 70mm |
Wall thickness, connection 1 | 2.4mm |
Surface protection connection 2 | Untreated |
Reducing | Yes |
Shape | Straight |
Working length connection 1 | 0mm |
Main colour fitting | Grey |
Bend radius | 0mm |
Connection 2 | Plastic welded end |
Wrench width | 0mm |
Material quality connection 2 | PVC-U |
Outer pipe diameter connection 2 | 48mm |
Zeta value | 0 |
KIWA certified | Yes |
ETIM Classification | EC003024 |
Surface protection connection 1 | Untreated |
With thermal insulation | No |
Surface treatment connection 1 | Untreated |
Bend angle | 0° |
With sealing rings/gaskets | No |
Wall thickness, connection 2 | 2.3mm |
Max. operating pressure at 20 °C | 0bar |
Working length connection 2 | 0mm |
Length of connection 2 | 23mm |
Nominal diameter connection 2 | DN 40 |
Nominal diameter connection 1 | DN 50 |
Max. operating pressure at max. medium temperature | 0bar |
Material quality connection 1 | PVC-U |
Connection 1 | Plastic welded end |
Eccentric | No |
Wrench width union nut | 0mm |
Material connection 1 | Polyvinyl chloride (PVC) |
Capped | No |
Material connection 2 | Polyvinyl chloride (PVC) |
System-specific | No |
Length of connection 1 | 28mm |
Model | 1-part |
