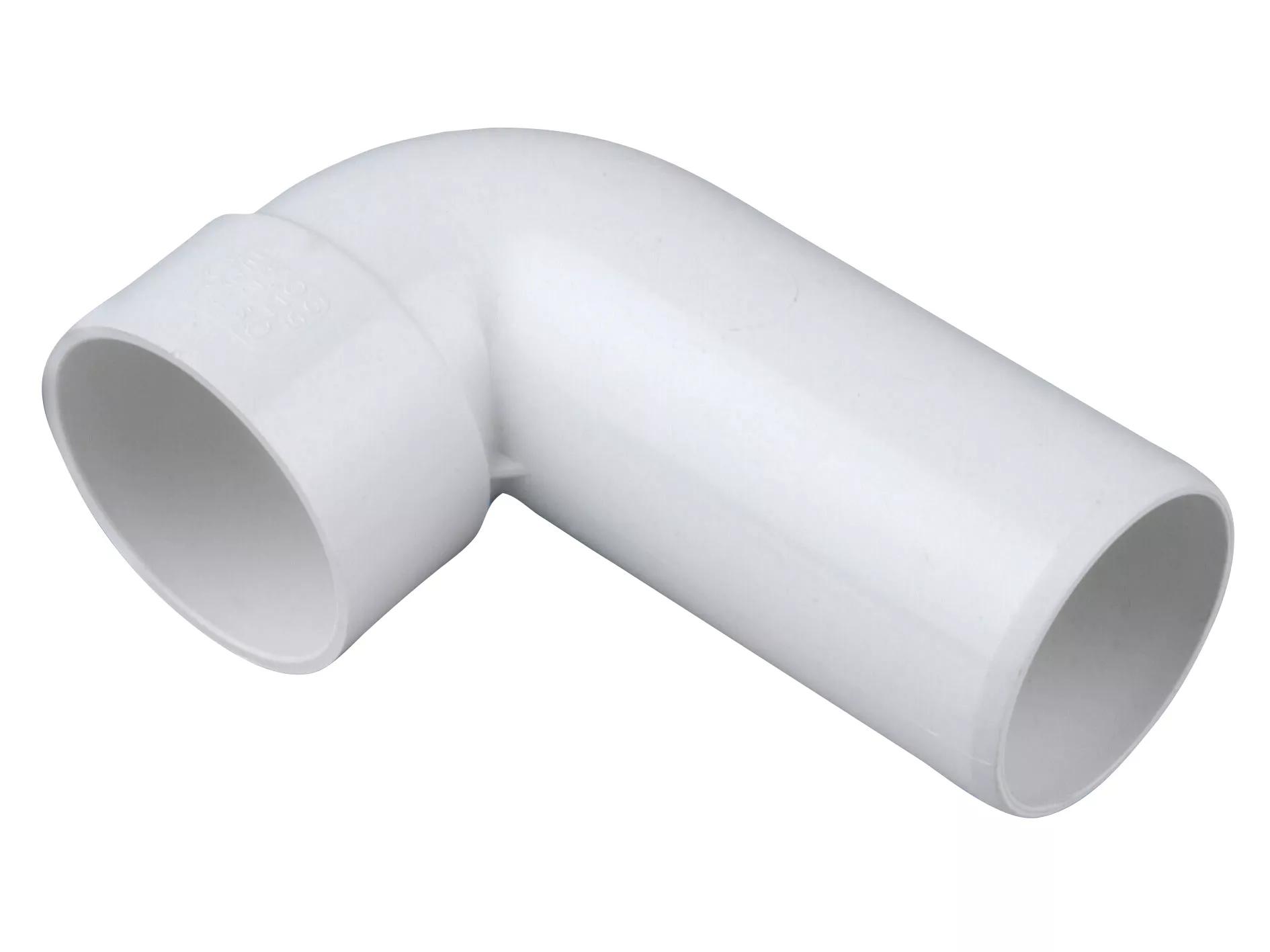

OsmaW ABS Spigot Bend 90° WT 50
| 1 bag | 10 pieces |
|---|
Product Identifiers
Catalog Code2Z260W
EAN Number5011479211342
SAP number3036057
| 1 bag | 10 pieces |
|---|
| Label | Value |
|---|---|
Wrench width union nut | 0mm |
Connection 2 | Plastic welded end |
Capped | No |
Surface treatment connection 1 | Untreated |
Nominal diameter connection 2 | DN 50 |
Zeta value | 0.0000 |
KIWA certified | Yes |
Nominal diameter connection 1 | DN 50 |
Wall thickness, connection 2 | 2.4mm |
Max. operating pressure at max. medium temperature | 0bar |
Material connection 1 | Acrylonitrile butadiene styrene (ABS) |
Working length connection 2 | 0mm |
Eccentric | No |
Outer pipe diameter connection 2 | 56.1mm |
Bend radius | 0mm |
Length of connection 1 | 28mm |
Medium temperature (continuous) | 0 |
Material quality connection 1 | Other |
Outer pipe diameter connection 1 | 56.1mm |
With thermal insulation | No |
Working length connection 1 | 0mm |
Wrench width | 0mm |
Max. operating pressure at 20 °C | 0bar |
Standard Dimension Ratio (SDR) | 0.0000 |
Reducing | No |
Connection 1 | Plastic welded end |
Length of connection 2 | 28mm |
System-specific | No |
Material quality connection 2 | Other |
Surface protection connection 2 | Untreated |
Model | 1-part |
Wall thickness, connection 1 | 2.4mm |
Length | 124mm |
Surface treatment connection 2 | Untreated |
ETIM Classification | EC003024 |
Bend angle | 90° |
Shape | Bend |
Material connection 2 | Acrylonitrile butadiene styrene (ABS) |
Surface protection connection 1 | Untreated |
Main colour fitting | White |
With sealing rings/gaskets | No |
