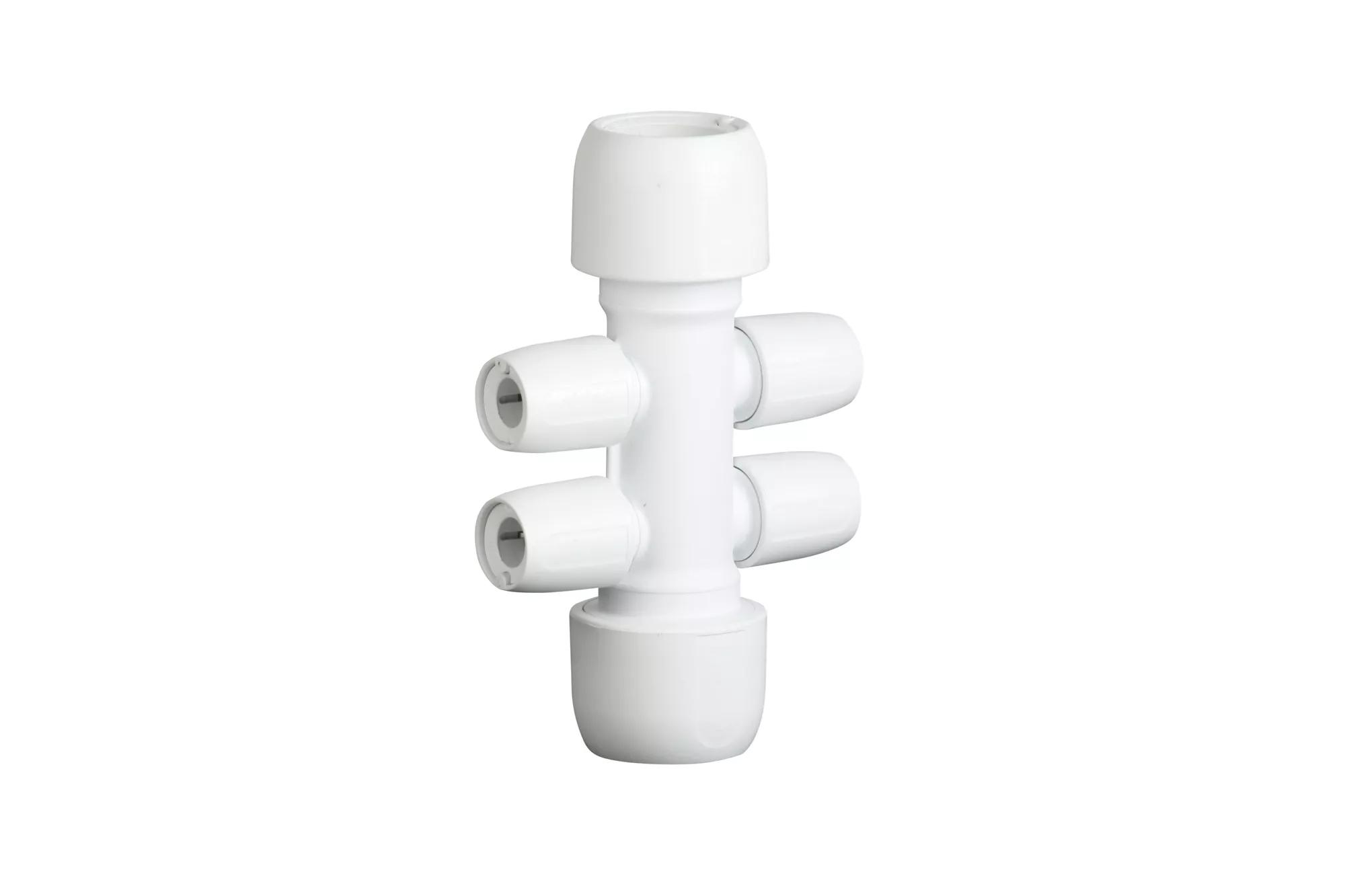

Hep2O 4Port Manifold 22x10 PF/PF OppSide
Product Identifiers
Catalog CodeHX94B/22W
EAN Number5027888268068
SAP number3030661
| Label | Value |
|---|---|
| ETIM Classification | EC003885 |
| Suitable for tap water | Yes |
| Suitable for central heating water | Yes |
| Suitable for cooling water | Yes |
| Suitable for compressed air | No |
| Suitable for glycol | No |
| Mounting method | Built-in |
| Model | Other |
| Material | Plastic |
| Material quality | Polybutylene (PB) |
| Surface protection | Untreated |
| Nominal diameter connection 1 | Other |
| Shape | Throughflow with straight branches |
| Outer pipe diameter connection 1 | 22mm |
| Connection 1 | Other |
| Nominal diameter connection 2 | DN 18 |
| Outer pipe diameter connection 2 | 22mm |
| Connection 2 | Other |
| Number of branches | 4.0000 |
| Number of branching directions | 2.0000 |
| Outer pipe diameter branches | 10mm |
| Connection branches | Insert (push coupling) |
| Article compression class | Other |
| Max. medium temperature (continuous) | 95°C |
| Zeta value | 0.0000 |
| System-specific | Yes |
| With filling- and draining valve | No |
| With shut off valve | No |
| With de-aeration | No |
| With wall-mounting bracket | No |
| With mounting material | No |
| With legs | No |
| With insulation | No |
| Width | 130mm |
| Height | 84mm |
| Depth | 41mm |
| Length of connection 1 | 0mm |
| Working length connection 1 | 0mm |
| Length of connection 2 | 0mm |
| Working length connection 2 | 0mm |
| Branch working length | 0mm |
| Venturi nozzle | None |
