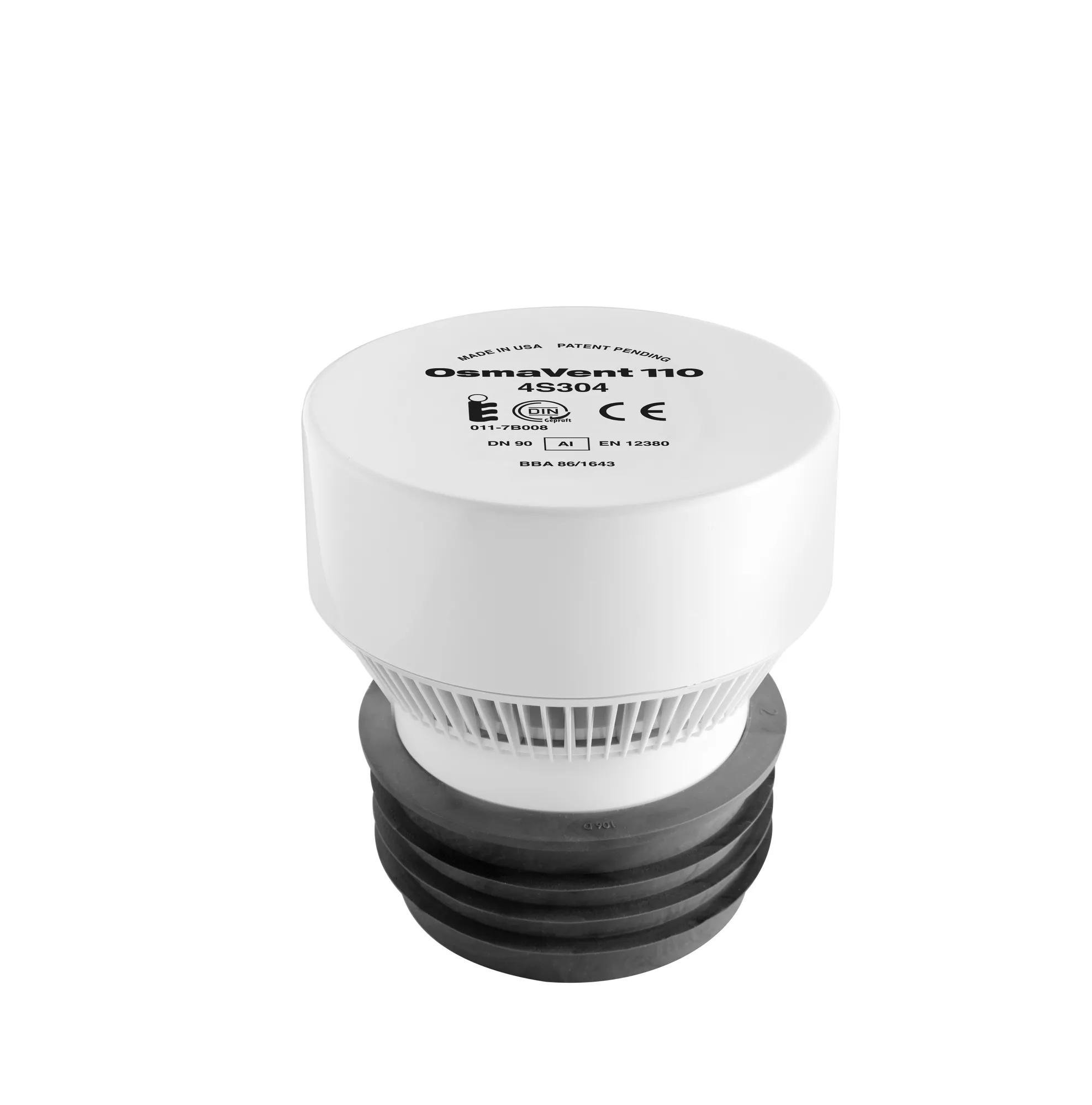

OsmaS ABS AAV WT 110
| 1 bag | 1 pieces |
|---|---|
| 1 box | 168 pieces |
Product Identifiers
Catalog Code4S304W
EAN Number5011479105894
SAP number4039484
| 1 bag | 1 pieces |
|---|---|
| 1 box | 168 pieces |
| Label | Value |
|---|---|
| ETIM Classification | EC003023 |
| Material connection 1 | ABS |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| System-specific | No |
| Nominal diameter connection 1 | DN 100 |
| Outer pipe diameter connection 1 | 110mm |
| Wall thickness, connection 1 | 3.5mm |
| Connection 1 | Plastic welded end |
| Max. operating pressure at 20 °C | 0bar |
| Main colour fitting | White |
| Length of connection 1 | 50mm |
| Working length connection 1 | 47mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Max. operating pressure at max. medium temperature | 0bar |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | No |
| With drain valve | No |
| Capped | No |
