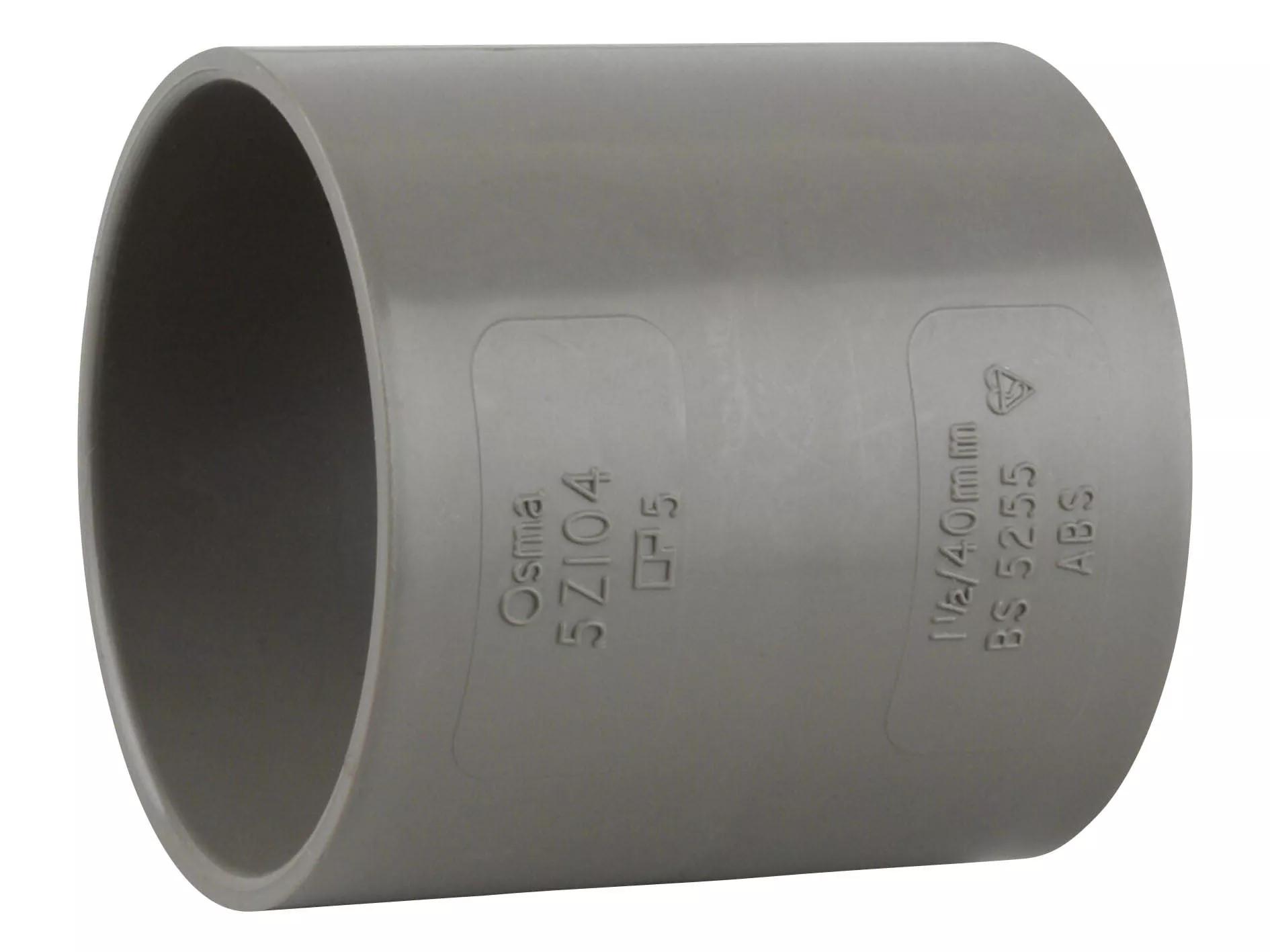

OsmaW ABS Double Socket GY 40
| 1 bag | 30 pieces |
|---|
Product Identifiers
Catalog Code5Z104G
EAN Number5011479110614
SAP number3032424
| 1 bag | 30 pieces |
|---|
| Label | Value |
|---|---|
Outer pipe diameter connection 2 | 43.1mm |
With sealing rings/gaskets | No |
Length of connection 2 | 24mm |
Connection 2 | Plastic welded end |
Max. operating pressure at max. medium temperature | 0bar |
Max. operating pressure at 20 °C | 0bar |
Material connection 1 | Acrylonitrile butadiene styrene (ABS) |
Shape | Straight |
Working length connection 2 | 24mm |
Main colour fitting | Grey |
Material quality connection 2 | Other |
Surface protection connection 1 | Untreated |
Wall thickness, connection 2 | 2.3mm |
Outer pipe diameter connection 1 | 43.1mm |
Medium temperature (continuous) | 0 |
Reducing | No |
Zeta value | 0.0000 |
KIWA certified | Yes |
Wall thickness, connection 1 | 2.3mm |
Material connection 2 | Acrylonitrile butadiene styrene (ABS) |
Eccentric | No |
Standard Dimension Ratio (SDR) | 0.0000 |
Nominal diameter connection 1 | DN 40 |
Wrench width | 0mm |
Model | 1-part |
Bend angle | 0° |
Surface protection connection 2 | Untreated |
ETIM Classification | EC003024 |
Surface treatment connection 1 | Untreated |
Length of connection 1 | 24mm |
Surface treatment connection 2 | Untreated |
Bend radius | 0mm |
Length | 48mm |
Connection 1 | Plastic welded end |
Working length connection 1 | 24mm |
Wrench width union nut | 0mm |
System-specific | Yes |
Nominal diameter connection 2 | DN 40 |
Capped | No |
With thermal insulation | No |
Material quality connection 1 | Other |
