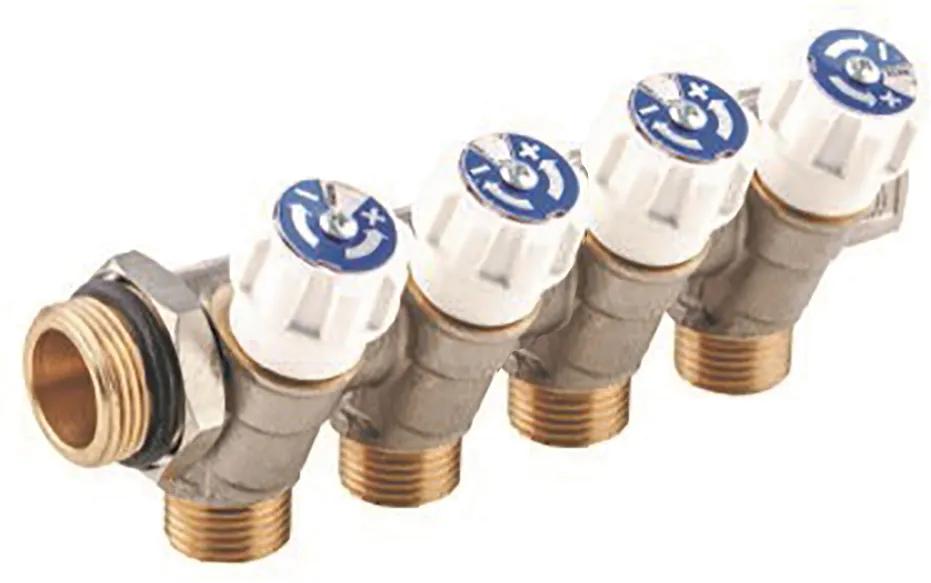

Manifold 3/4"with valves x4 ports 1/2"
| 1 bag | 2 pieces |
|---|---|
| 1 pallet | 2280 pieces |
Product Identifiers
Catalog Code4026694
EAN Number8018464112261
SAP number4026694
| Label | Value |
|---|---|
ETIM Classification | EC003885 |
Suitable for tap water | Yes |
Suitable for central heating water | Yes |
Suitable for cooling water | Yes |
Suitable for compressed air | Yes |
Suitable for glycol | Yes |
Mounting method | Built-in |
Model | Other |
Material | Brass |
Material quality | Other |
Surface protection | Other |
Nominal diameter connection 1 | Other |
Shape | Other |
Outer pipe diameter connection 1 | 16mm |
Connection 1 | External thread metric |
Nominal diameter connection 2 | Other |
Outer pipe diameter connection 2 | 16mm |
Connection 2 | Internal thread metric |
Number of branches | 4.0000 |
Number of branching directions | 4.0000 |
Nominal diameter branches | Other |
Outer pipe diameter branches | 38mm |
Connection branches | External thread metric |
Distance between offset | 38mm |
Deviant distance between branches | No |
Article compression class | Pressureless |
Max. medium temperature (continuous) | 70°C |
Zeta value | 0.0000 |
System-specific | Yes |
With filling- and draining valve | No |
With shut off valve | Yes |
With de-aeration | No |
With wall-mounting bracket | No |
With mounting material | No |
With legs | No |
With insulation | No |
Width | 22mm |
Height | 50mm |
Depth | 30mm |
Length distributor | 160mm |
Distributor working length | 8mm |
Length of connection 1 | 8mm |
Working length connection 1 | 8mm |
Length of connection 2 | 8mm |
Working length connection 2 | 8mm |
Length of branch | 8mm |
Branch working length | 19mm |
