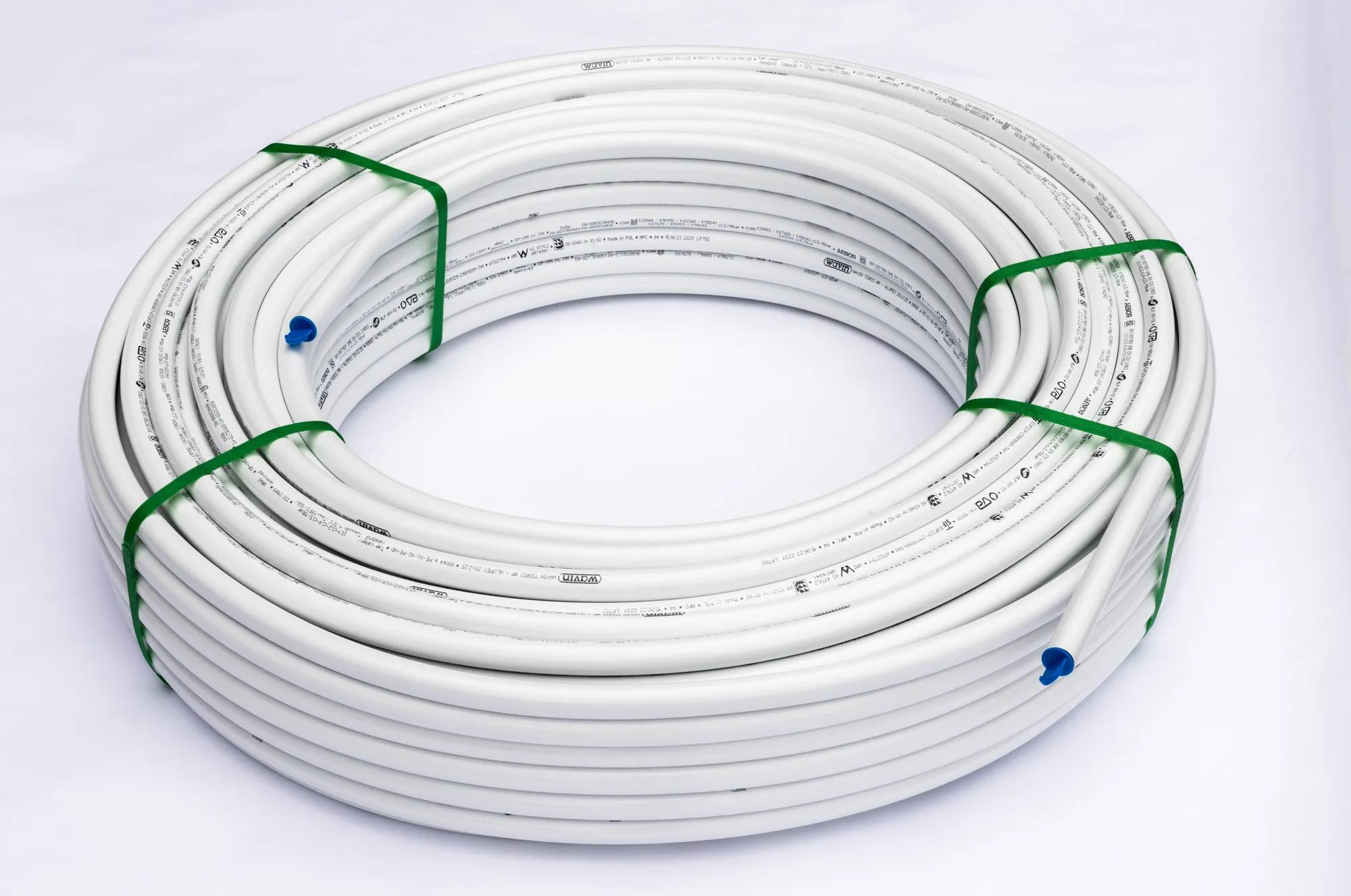

Tigris PEXc/Al/PE Ins13c0BL 20x2.25 L=50
| 1 pallet | 3 pieces |
|---|
Product Identifiers
Catalog Code3095682
EAN Number5011479327876
SAP number3095682
| 1 pallet | 3 pieces |
|---|
| Label | Value |
|---|---|
ETIM Classification | EC010225 |
Material inner layer | Polyethylene (PE) |
Quality class inner layer | PE-Xc |
Material intermediate layer | Aluminium |
Quality class intermediate layer | Other |
Material outer layer | Polyethylene (PE) |
Number of layers | 5.0000 |
Glass-fibre reinforced | No |
Diffusion-proof | Yes |
Nominal diameter | DN 12 |
Outer pipe diameter | 20mm |
Wall thickness | 2.25mm |
Thickness intermediate layer | 0.2mm |
System-specific | Yes |
Medium temperature (continuous) | 1 - 70 |
Max. medium temperature (momentarily) | 95°C |
Max. operating pressure at 20 °C | 10bar |
Max. operating pressure at max. medium temperature | 10bar |
Wall roughness | 0.002mm |
Expansion coefficient | 0.025mm/(m⋅K) |
Flexible | Yes |
Suitable for surface mounting | Yes |
Min. bending radius | 80mm |
Min. bending radius without tools | 100mm |
Pipe colour | White |
With mantle pipe | No |
Outer diameter mantle pipe | 0mm |
With heating cable | No |
Colour outer sheath | Other |
With thermal insulation | Yes |
Shape of insulation | Round |
Thickness of thermal insulation | 13mm |
Lambda value | 0.4W/(m⋅K) |
Colour of thermal insulation | Blue |
Outer diameter thermal insulation | 39mm |
Outer width rectangular insulation | 0mm |
Outer height rectangular insulation | 0mm |
Capped | No |
Water content | 0.189l/m |
Halogen free | Yes |
DIN-CERTCO certificate | Yes |
DVGW quality mark for gas | Yes |
DVGW quality mark for water | Yes |
